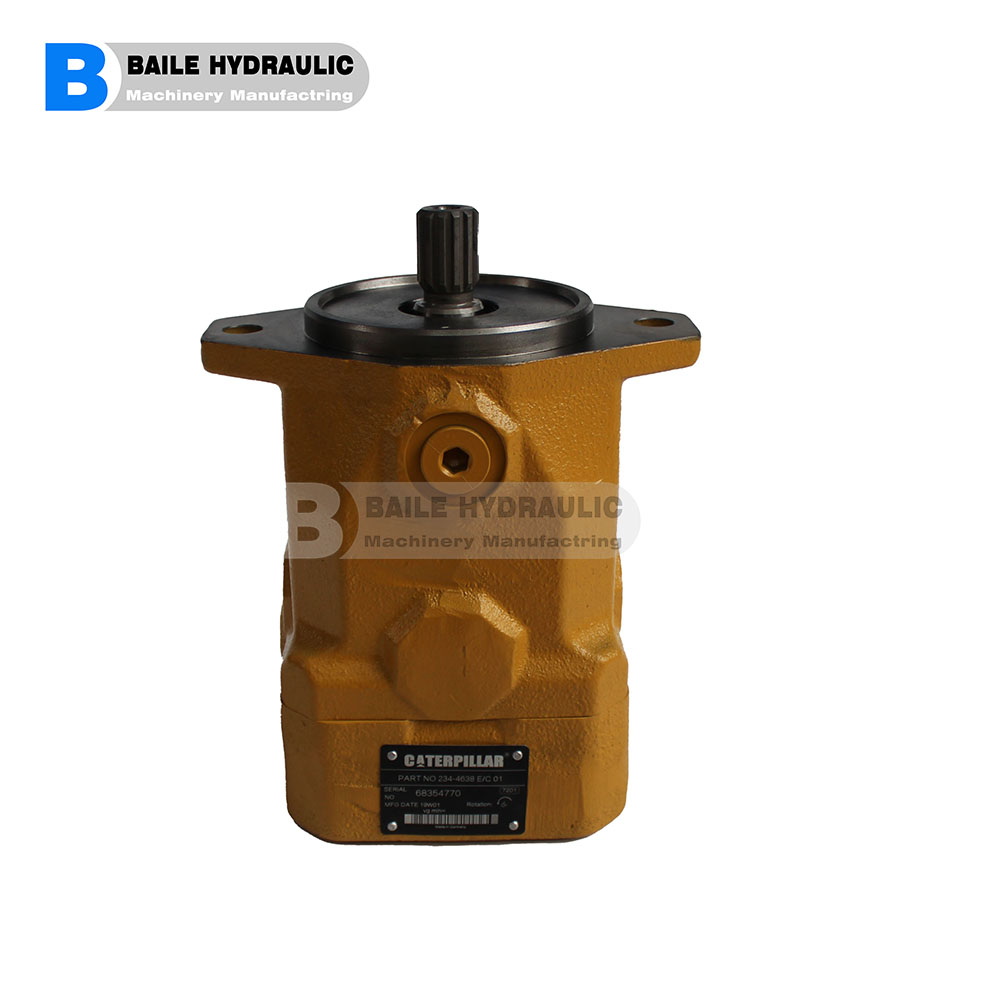

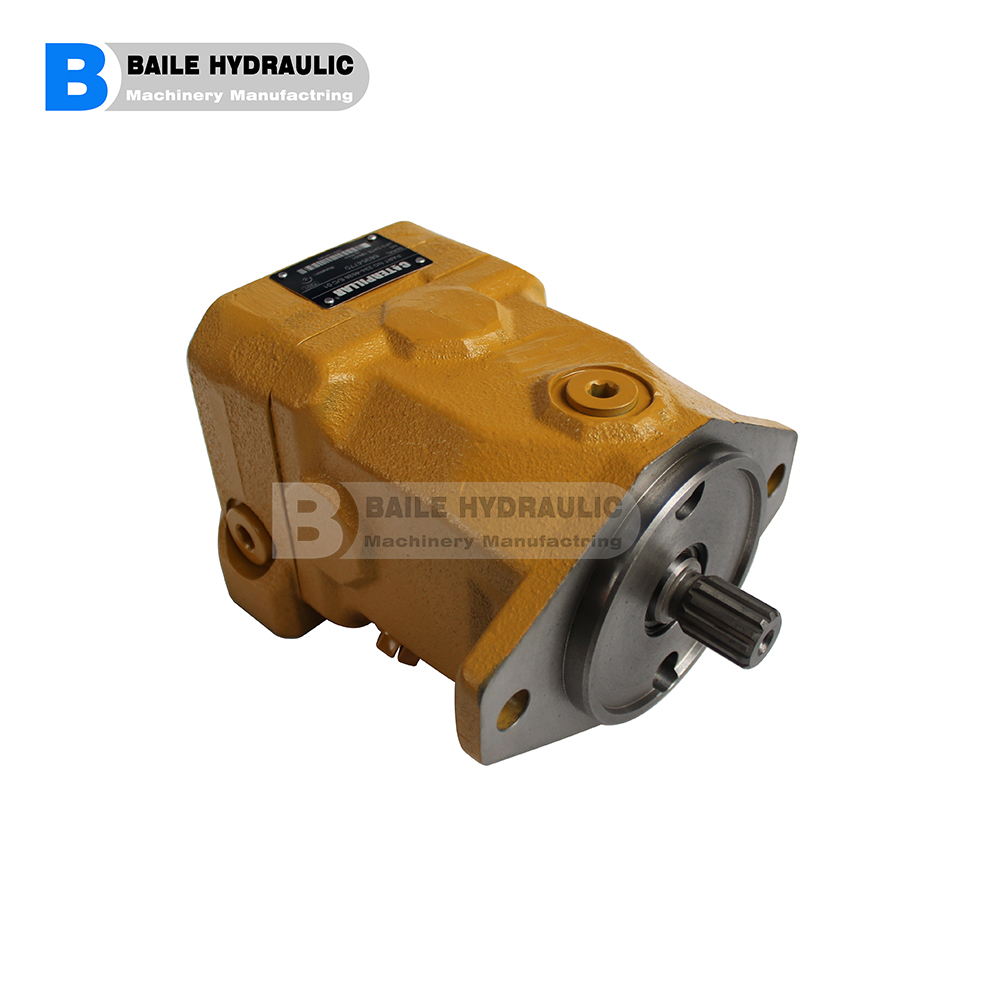

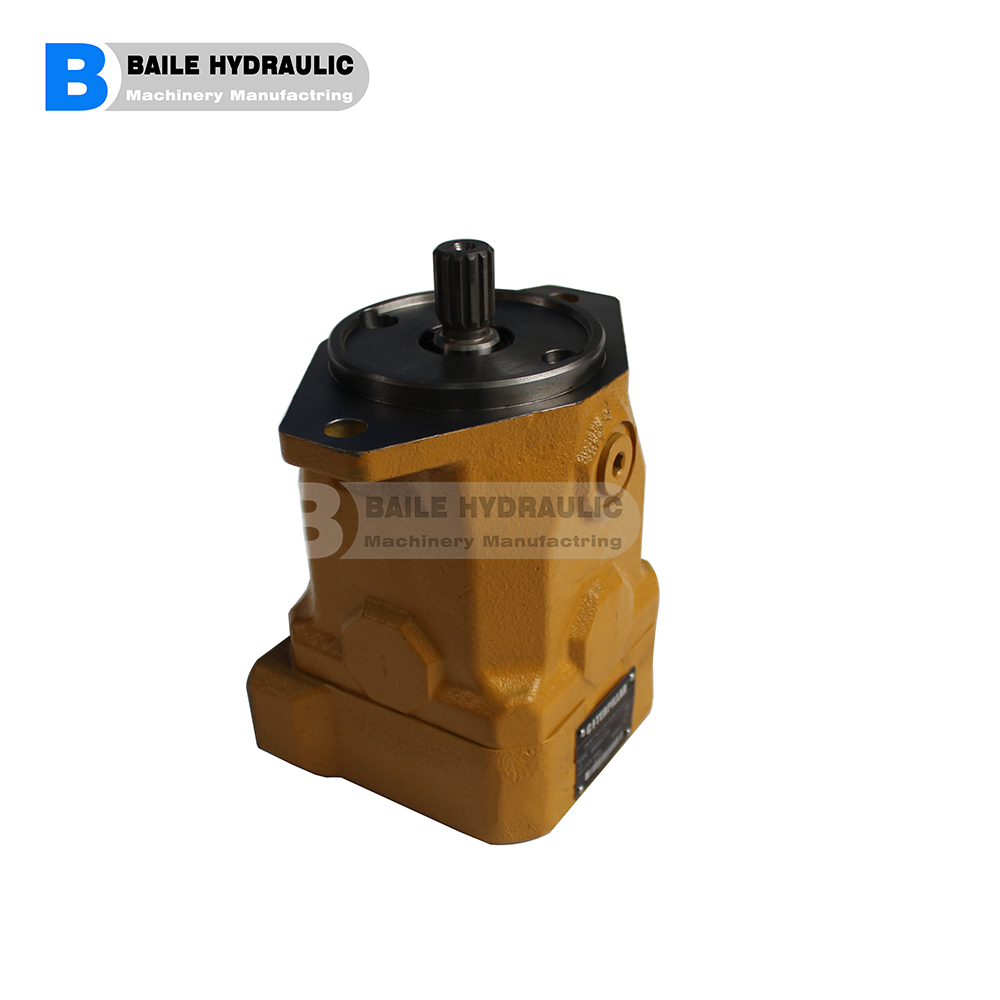

Rexroth A10FM14 A10FM16 A10FM18 Axial Piston Fixed Motor US Designed
▶ Universal medium pressure motors
▶ Sizes 10 to 63
▶ Nominal pressure 280 bar (4100 psi)
▶ Maximum pressure 350 bar (5100 psi)
▶ Open and closed circuits
Features
▶ Proven A10 rotary group technology
▶ Approved for high rotational speeds
▶ Long service life
▶ High power density
▶ Compact design for A10FE
▶ Low operating noise
▶ Optionally with integral anti cavitation valve,
e.g., for fan drives
▶ Optional: Speed sensor
▶ Swashplate design
Rexroth A10FM14 A10FM16 A10FM18 Axial Piston Fixed Motor US Designed
AA10FM hydraulic motor is widely used in hydrostatic drive systems requiring high efficiency, compact design, and reliable performance. Its robust construction and excellent power density make it suitable for a variety of mobile and industrial applications.
Construction Machinery: The AA10FM motor is commonly used in excavators, loaders, road rollers, and other construction equipment for travel drives, winch drives, and auxiliary hydraulic functions.
Agricultural Machinery: It is ideal for tractors, harvesters, sprayers, and other agricultural equipment, providing efficient power transmission and precise speed control.
Mining and Material Handling Equipment: The motor is suitable for drilling rigs, conveyor systems, crushers, and material handling machinery that require high torque and continuous operation under demanding conditions.
Industrial Applications: The AA10FM motor is used in hydraulic power units, conveyor drives, test benches, and various industrial machines where reliable hydraulic power transmission is essential.
Marine and Offshore Equipment: Its durable design makes it suitable for marine hydraulic systems, including deck machinery, winches, cranes, and steering systems.Table of values
| Size | 18 | 23 | 28 | 37 | 45 | 58 | 63 | |||
| Displacement geometric, per revolution |
Vg | cm³ | 18 | 23.5 | 28.5 | 36.7 | 44.5 | 58 | 63.1 | |
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed 1) | nnom | rpm | 4200 | 4900 | 4700 | 4200 | 4000 | 3600 | 3400 | |
| Inlet flow | at nnom | qV | l/min | 76 | 115 | 134 | 154 | 178 | 209 | 215 |
| Power | at nnom and pnom | P | kW | 35.3 | 53.6 | 62.5 | 71.8 | 83.1 | 97.4 | 100.1 |
| Starting torque | at nnom and pnom | M0 | Nm | 67.5 | 75 | 105 | 125 | 170 | 205 | 230 |
| Torque | at pnom | M | Nm | 80 | 105 | 127 | 163 | 198 | 258 | 281 |
| Rotary stiffness | Drive shaft R | c | kNm/rad | 14.835 | 28.478 | 28.478 | 46.859 | 46.859 | 80.59 | 80.59 |
| Drive shaft W | c | kNm/rad | 38.489 | 38.489 | 60.907 | 60.907 | ||||
| Drive shaft C | c | kNm/rad | 18.662 | 30.017 | 30.017 | 46.546 | 46.546 | 87.667 | 87.667 | |
| Moment of inertia for rotary group | JTW | kg·m² | 0.00093 | 0.0017 | 0.0017 | 0.0033 | 0.0033 | 0.0056 | 0.0056 | |
| Maximum angular acceleration | ɑ | rad/s² | 6800 | 5500 | 5500 | 4000 | 4000 | 3300 | 3300 | |
| Case volume | V | l | 0.15 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 0.8 | |
| Weight (approx.) | m | kg | 6.5 | 12 | 12 | 17 | 17 | 22 | 22 | |
| 1) | At least 18 bar required at low pressure side | |||||||||
R902462921
A A10F M 14 /52R-VCC66N002
R902547476
A A10F M 14 /52W-VRC16N000
R902422284
A A10F M 16 /52W-VPC64N000
R902427223
A A10F M 16 /52W-VPC66N000
R902573834
A A10F M 16 /52L-VCC16N002 -S5794
R902466444
A A10F M 18 /52L-VCC16N002
R902438355
A A10F M 18 /52R-VRC16N002
R902460178
A A10F M 18 /52W-VPC66N000
R902465740
A A10F M 18 /52W-VRC16N000
R902480855
AL A10F M 8 /52W-VXC16N000 -S2554
R902549728
AL A10F M 14 /52W-VRC16N000
R902568120
AL A10F M 18 /52L-VCC66N002 -SO727
R902545654
