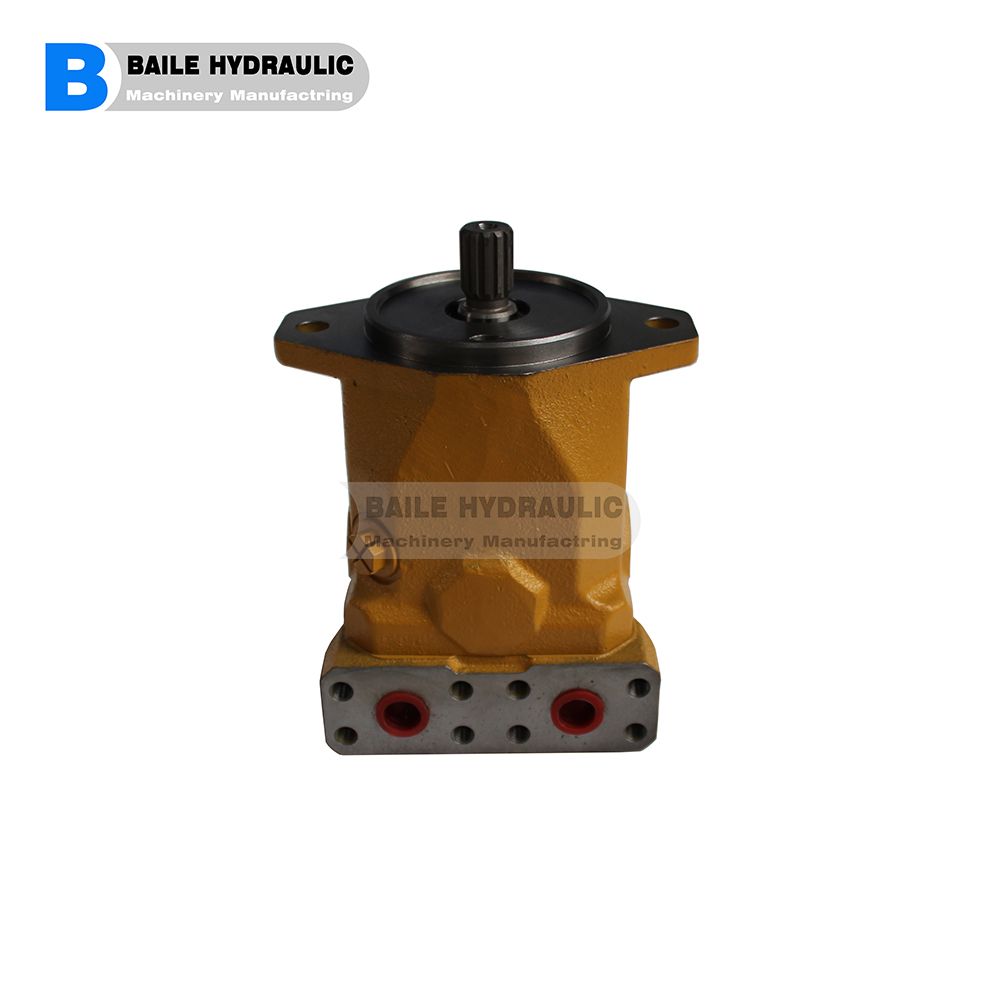

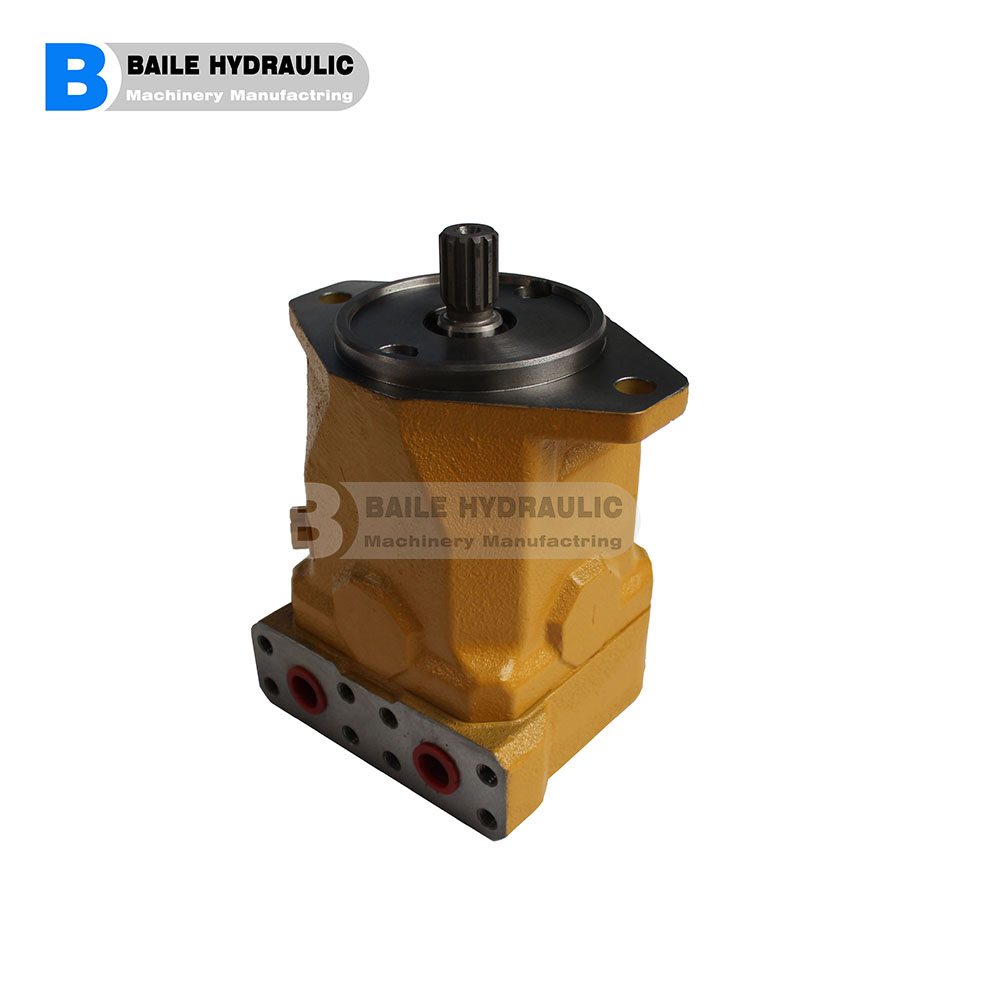

Rexroth A10FM23 A10FM28 A10FM21 Axial Piston Fixed Motor
▶ Universal medium pressure motors
▶ Sizes 10 to 63
▶ Nominal pressure 280 bar (4100 psi)
▶ Maximum pressure 350 bar (5100 psi)
▶ Open and closed circuits
Features
▶ Proven A10 rotary group technology
▶ Approved for high rotational speeds
▶ Long service life
▶ High power density
▶ Compact design for A10FE
▶ Low operating noise
▶ Optionally with integral anti cavitation valve,
e.g., for fan drives
▶ Optional: Speed sensor
▶ Swashplate design
Rexroth A10FM23 A10FM28A10FM37 Axial Piston Fixed Motor
AA10FM hydraulic motor is widely used in hydrostatic drive systems requiring high efficiency, compact design, and reliable performance. Its robust construction and excellent power density make it suitable for a variety of mobile and industrial applications.
Construction Machinery: The AA10FM motor is commonly used in excavators, loaders, road rollers, and other construction equipment for travel drives, winch drives, and auxiliary hydraulic functions.
Agricultural Machinery: It is ideal for tractors, harvesters, sprayers, and other agricultural equipment, providing efficient power transmission and precise speed control.
Mining and Material Handling Equipment: The motor is suitable for drilling rigs, conveyor systems, crushers, and material handling machinery that require high torque and continuous operation under demanding conditions.
Industrial Applications: The AA10FM motor is used in hydraulic power units, conveyor drives, test benches, and various industrial machines where reliable hydraulic power transmission is essential.
Marine and Offshore Equipment: Its durable design makes it suitable for marine hydraulic systems, including deck machinery, winches, cranes, and steering systems.Table of values
| Size | 18 | 23 | 28 | 37 | 45 | 58 | 63 | |||
| Displacement geometric, per revolution |
Vg | cm³ | 18 | 23.5 | 28.5 | 36.7 | 44.5 | 58 | 63.1 | |
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed 1) | nnom | rpm | 4200 | 4900 | 4700 | 4200 | 4000 | 3600 | 3400 | |
| Inlet flow | at nnom | qV | l/min | 76 | 115 | 134 | 154 | 178 | 209 | 215 |
| Power | at nnom and pnom | P | kW | 35.3 | 53.6 | 62.5 | 71.8 | 83.1 | 97.4 | 100.1 |
| Starting torque | at nnom and pnom | M0 | Nm | 67.5 | 75 | 105 | 125 | 170 | 205 | 230 |
| Torque | at pnom | M | Nm | 80 | 105 | 127 | 163 | 198 | 258 | 281 |
| Rotary stiffness | Drive shaft R | c | kNm/rad | 14.835 | 28.478 | 28.478 | 46.859 | 46.859 | 80.59 | 80.59 |
| Drive shaft W | c | kNm/rad | 38.489 | 38.489 | 60.907 | 60.907 | ||||
| Drive shaft C | c | kNm/rad | 18.662 | 30.017 | 30.017 | 46.546 | 46.546 | 87.667 | 87.667 | |
| Moment of inertia for rotary group | JTW | kg·m² | 0.00093 | 0.0017 | 0.0017 | 0.0033 | 0.0033 | 0.0056 | 0.0056 | |
| Maximum angular acceleration | ɑ | rad/s² | 6800 | 5500 | 5500 | 4000 | 4000 | 3300 | 3300 | |
| Case volume | V | l | 0.15 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 0.8 | |
| Weight (approx.) | m | kg | 6.5 | 12 | 12 | 17 | 17 | 22 | 22 | |
| 1) | At least 18 bar required at low pressure side | |||||||||
R902438943
A A10F M 21 /52W-VKC64N000 -SO309
R902495077
A A10F M 23 /52L-VCC16N002
R902469220
A A10F M 23 /52R-VCC10N002
R902513430
A A10F M 23 /52W-VCC16N000 E
R902505308
A A10F M 23 /52W-VCC66N000
R902403034
A A10F M 23 /52W-VRC10N000
R902560699
A A10F M 23 /52W-VRC16N000
R902424606
A A10F M 23 /52W-VRC60N000
R902506838
A A10F M 23 /52W-VRC60N000
R902410047
A A10F M 23 /52W-VRC60N007
R902429216
A A10F M 23 /52W-VRC64N000
R902402781
A A10F M 23 /52W-VRC66N000
R902452904
A A10F M 28 /52L-VRC10N002
R902485217
A A10F M 28 /52R-VRC10N002D
R902422219
A A10F M 28 /52W-VCC10N000
R902552434
A A10F M 28 /52W-VCC16N000
R902505313
A A10F M 28 /52W-VCC66N000 *GO2*
R902463048
A A10F M 28 /52W-VPC66N000
R902534863
A A10F M 28 /52W-VRC10N000
R902416621
A A10F M 28 /52W-VRC10N000
R902490323
A A10F M 28 /52W-VRC16N000
R902562878
A A10F M 28 /52W-VRC60B000 -S1358
R902416777
A A10F M 28 /52W-VRC60N000 -S1343
R910991185
A A10F M 28 /52W-VRC60N000 -SO687
R902423735
A A10F M 28 /52W-VRC60N007 -S1064
R902403658
A A10F M 28 /52W-VRC66N000
R902505420
A A10F M 28 /52W-VRC66N000
R902506593
A A10F M 28 /52W-VWC60N007B
R902402079
A A10F M 28 /52W-VRC60N000
R902545654
AL A10F M 21 /52W-VRC16N000 -SO481
R902533798
AL A10F M 21 /52W-VRC16N000D-SO481
R902467263
AL A10F M 21 /52W-VRC16N007D-SO481
R992000909
AL A10F M 21 /52W-VRC16N007D-SO481
R902572402
AL A10F M 21 /52W-VRC16N007 -SO481
R992000864
AL A10F M 21 /52W-VRC16N007D
R902480026
AL A10F M 23 /52L-VCC10N002 -SO727
R902468855
AL A10F M 23 /52R-VCC10N002 -SO727
R902415691
AL A10F M 23 /52L-VPC10N000 -SO797
R902480095
AL A10F M 23 /52R-VCC10N002 -S4422
R902480092
AL A10F M 23 /52W-VCC10N000 -S2898
R902505440
AL A10F M 23 /52W-VCC10N000 -S4442
R902517619
AL A10F M 23 /52W-VRC10N000
R902539580
AL A10F M 23 /52W-VRC10N000D
R902471415
AL A10F M 23 /52W-VRC10N000D
R902520800
AL A10F M 23 /52W-VRC10N000F
R902520801
AL A10F M 23 /52W-VRC10N000H
R902534831
AL A10F M 23 /52W-VRC10N007
R992000891
AL A10F M 23 /52W-VRC10N007
R902462095
AL A10F M 23 /52W-VRC10N007
R902515657
AL A10F M 23 /52W-VRC10N007D
R902551892
AL A10F M 23 /52W-VRC10N007M
R902533788
AL A10F M 23 /52W-VRC10N007U
R992000665
AL A10F M 23 /52W-VRC66N000
R902505764
AL A10F M 23 /52W-VRC66N007F
R902511892
AL A10F M 23 /52W-VSC66N000 F -S2883
R902505763
AL A10F M 23 /52W-VSC66N000F -S1388
R902544541
AL A10F M 28 /52L-VCC10N002
R992001771
AL A10F M 28 /52L-VPC10N000 -SO797
R902407652
AL A10F M 28 /52L-VPC10N000 -SO797
R902560623
AL A10F M 28 /52L-VPC10N000 -SO797
R902547900
AL A10F M 28 /52R-PCC10N002 -SO854
R902547255
AL A10F M 28 /52R-VCC10N002
R902540907
AL A10F M 28 /52R-VCC10N002
R902511839
AL A10F M 28 /52R-VCC45N002 -S3710
R902479524
AL A10F M 28 /52R-VCC45N002 -SO727
R910998131
AL A10F M 28 /52R-VRC10N00 -SO847
R992000916
AL A10F M 28 /52R-VSC10N002 -SO768
R992000760
AL A10F M 28 /52R-VSC10N002 -SO768
R902469226
AL A10F M 28 /52R-VSC10N002 -SO768
R902570319
AL A10F M 28 /52R-VSC10N002F -S1553
R902463496
AL A10F M 28 /52W-VCC10N000D
R902556929
AL A10F M 28 /52W-VCC16N000
R902511840
AL A10F M 28 /52W-VCC45N000 -S3710
R902479526
AL A10F M 28 /52W-VCC45N000 -SO727
R902505220
AL A10F M 28 /52W-VCC45N007 -S3710
R902417273
AL A10F M 28 /52W-VCC60N000
R986110017
AL A10F M 28 /52W-VCC66N000 -S1727
R902430571
AL A10F M 28 /52W-VCC66N000 -S1727
R992001800
AL A10F M 28 /52W-VCC66N000 -S1727
R992000895
AL A10F M 28 /52W-VPC66N000
R992000703
AL A10F M 28 /52W-VRC10N000
R902444343
AL A10F M 28 /52W-VRC10N000
R902540381
AL A10F M 28 /52W-VRC10N000
R902534830
AL A10F M 28 /52W-VRC10N000
R902534829
AL A10F M 28 /52W-VRC10N000
R902480155
AL A10F M 28 /52W-VRC10N007
R992000954
AL A10F M 28 /52W-VRC10N007
R902540740
AL A10F M 28 /52W-VRC10N007
R902515658
AL A10F M 28 /52W-VRC10N007D
R902550424
AL A10F M 28 /52W-VRC10N007U
R902531545
AL A10F M 28 /52W-VRC10N007U
R902545652
AL A10F M 28 /52W-VRC10N007U -S1064
R902568176
AL A10F M 28 /52W-VRC60B000 -S1358
R902486687
AL A10F M 28 /52W-VRC60N000
R992000664
AL A10F M 28 /52W-VRC60N000
R992000724
AL A10F M 28 /52W-VRC60N007 -S1064
R902539526
AL A10F M 28 /52W-VRC60N007 -S1064
R902506112
AL A10F M 28 /52W-VRC66N000
R902506844
AL A10F M 28 /52W-VRC66N007 -S1464
R902505761
AL A10F M 28 /52W-VRC66N007F
R902491919
AL A10F M 28 /52W-VRC66N007F
R902496976
AL A10F M 28 /52W-VSC10N000 -S3597
R902469228
AL A10F M 28 /52W-VSC10N000 -SO768
R992001410
AL A10F M 28 /52W-VSC10N000 -SO768
R902511893
AL A10F M 28 /52W-VSC66N000F
R902505762
AL A10F M 28 /52W-VSC66N000F
A: We are factory and trading company.
A: Generally it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: We can provide samples, but not for free.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have more questions, pls feel free to contact us as below:
sales@bailehydraulic.com
WeChat/WhatsApp：0086 18060096097
