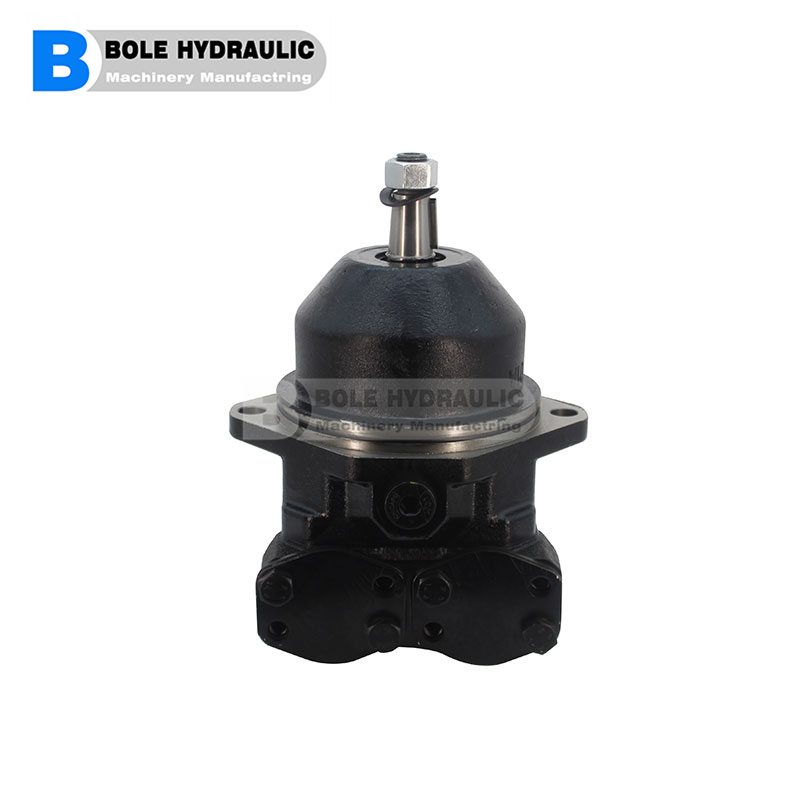

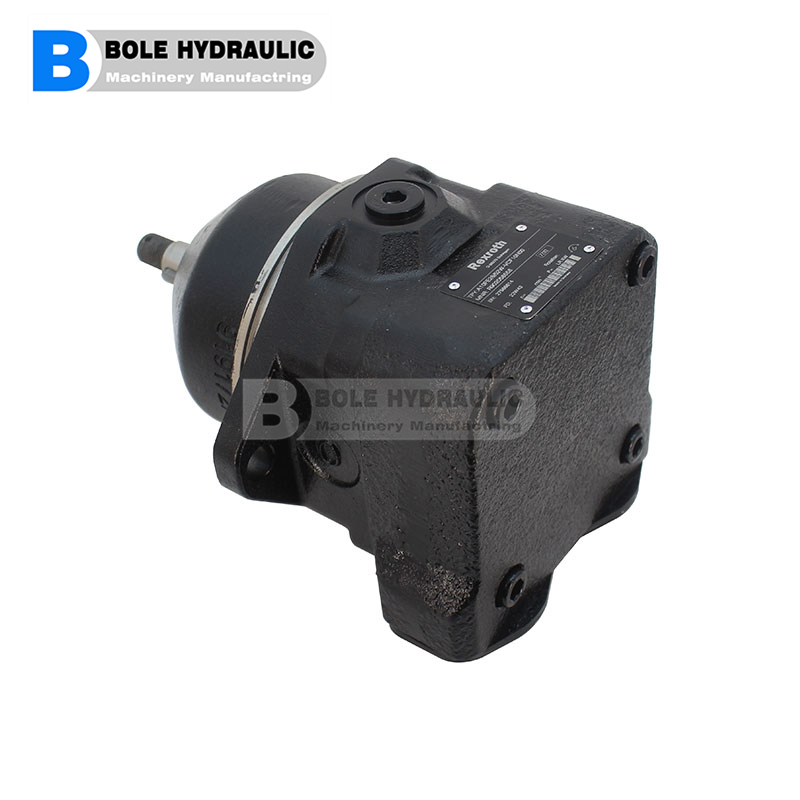

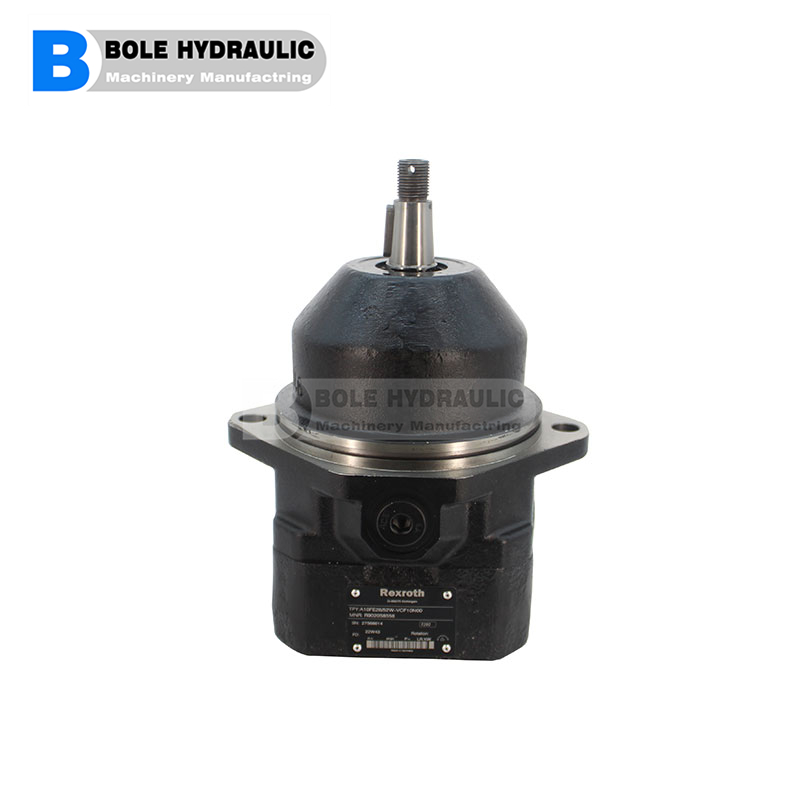

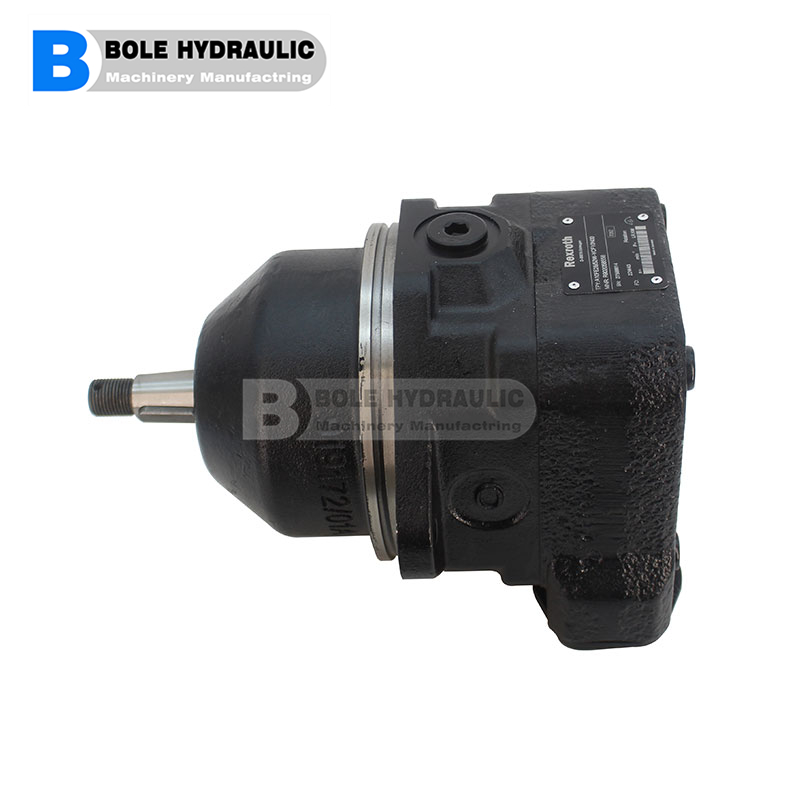

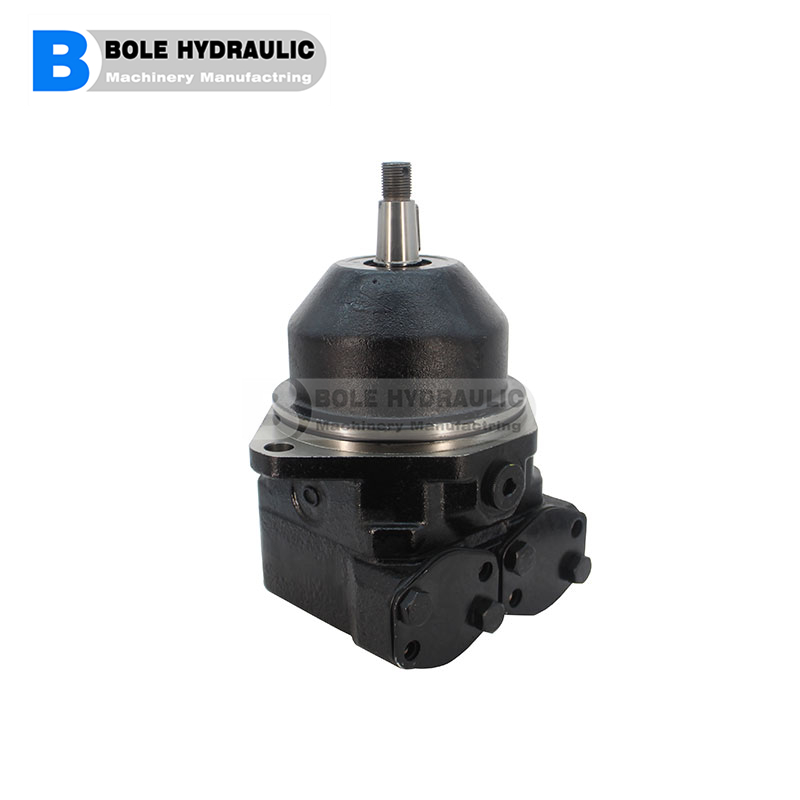

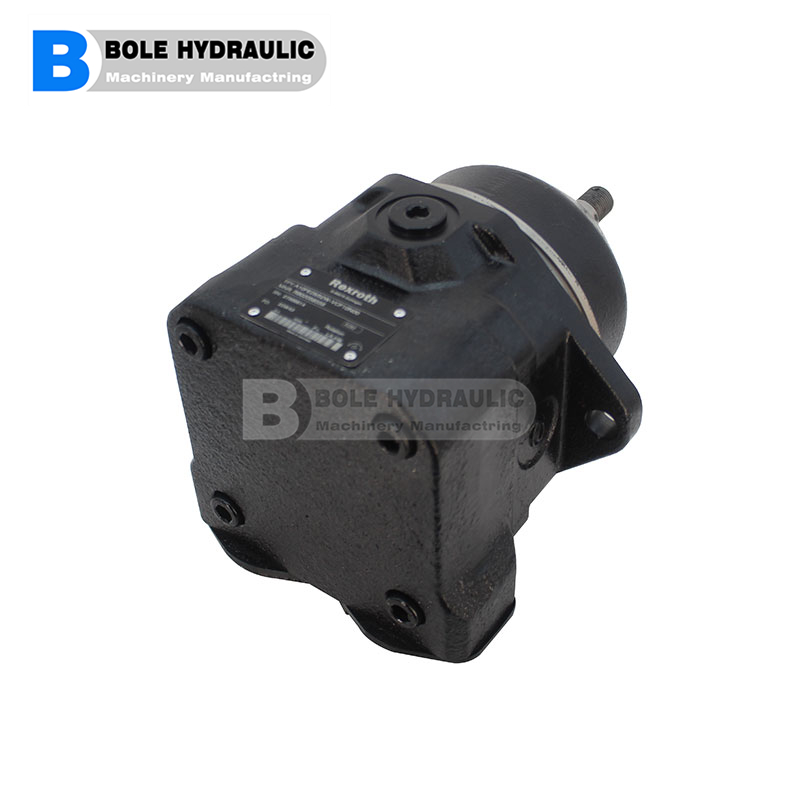

Rexroth A10FE37 A10FE45 A10FE58 A10FE63 Fixed displacement motor Axial piston design
Series 52
Sizes 10 to 63
Nominal pressure 280 bar
Maximum pressure 350 bar
Open and closed circuit
Features
– Fixed displacement motor in axial piston swashplate design
for hydrostatic drives in open and closed circuit operation
– The output speed is proportional to the inlet flow
– The output torque increases with the pressure differential
between the high and low pressure sides
– For use in mobile and industrial applications
– Long service life
– High permissible output speeds
– Well proven A10-rotary group technology
– High power to weight ratio – compact design
– Plug-in version for space saving installation
– Low noise level
– Mechanical and hydraulic connections also acc. to SAE
standards
– Speed sensor optional
– Integrated anti cavitation valve optional, i.e. for fan drives
A10FE Fixed Displacement Axial Piston Pump
The A10FE fixed displacement axial piston pump is widely used in mobile and industrial hydraulic systems requiring reliable and continuous hydraulic power transmission. Its application range includes:
- Construction machinery, such as excavators, wheel loaders, backhoe loaders, skid steer loaders, road rollers, and paving equipment.
- Agricultural machinery, including tractors, harvesters, seeders, sprayers, and other farming equipment.
- Material handling equipment, such as forklifts, telehandlers, lifting platforms, and warehouse machinery.
- Road construction and maintenance equipment, including asphalt pavers, milling machines, and compaction machinery.
- Mining and quarry equipment, such as drilling rigs, loaders, and crushing systems.
- Forestry machinery, including harvesters, forwarders, and wood-processing equipment.
- Industrial hydraulic power units used in manufacturing plants, machine tools, presses, and automation systems.
- Marine and offshore hydraulic systems requiring stable hydraulic power supply.
- Municipal and special-purpose vehicles, including sanitation trucks, utility vehicles, and service equipment.
- Hydraulic drive systems, auxiliary hydraulic circuits, and power transmission applications in both mobile and stationary machinery.
Table of values
| Size | 10 | 11 | 14 | 16 | 18 | 23 | 28 | 37 | 45 | 58 | 63 | |||
| Displacement geometric, per revolution |
Vg | cm³ | 10.6 | 11.5 | 14.1 | 16.1 | 18 | 23.5 | 28.5 | 36.7 | 44.5 | 58 | 63.1 | |
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed 1) | nnom | rpm | 5000 | 4200 | 4200 | 4200 | 4200 | 4900 | 4700 | 4200 | 4000 | 3600 | 3400 | |
| Inlet flow | at nnom | qV | l/min | 53 | 48 | 59 | 68 | 76 | 115 | 134 | 154 | 178 | 209 | 215 |
| Power | at nnom and pnom | P | kW | 24.7 | 22.5 | 27.6 | 31.6 | 35.3 | 53.6 | 62.5 | 71.8 | 83.1 | 97.4 | 100.1 |
| Starting torque | at nnom and pnom | M0 | Nm | 37.5 | 30 | 45 | 53 | 67.5 | 75 | 105 | 125 | 170 | 205 | 230 |
| Torque | at pnom | M | Nm | 47 | 51 | 63 | 72 | 80 | 105 | 127 | 163 | 198 | 258 | 281 |
| Rotary stiffness | Drive shaft R | c | kNm/rad | 14.835 | 28.478 | 28.478 | 46.859 | 46.859 | 80.59 | 80.59 | ||||
| Drive shaft W | c | kNm/rad | 38.489 | 34.489 | 60.907 | 60.907 | ||||||||
| Drive shaft C | c | kNm/rad | 15.084 | 18.662 | 18.662 | 18.662 | 18.662 | 30.017 | 30.017 | 46.546 | 46.546 | 87.667 | 87.667 | |
| Moment of inertia for rotary group | JTW | kg·m² | 0.0006 | 0.00093 | 0.00093 | 0.00093 | 0.00093 | 0.0017 | 0.0017 | 0.0033 | 0.0033 | 0.0056 | 0.0056 | |
| Maximum angular acceleration | ɑ | rad/s² | 8000 | 6800 | 6800 | 6800 | 6800 | 5500 | 5500 | 4000 | 4000 | 3300 | 3300 | |
| Case volume | V | l | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 0.8 | |
| Weight (approx.) | m | kg | 5 | 6.5 | 6.5 | 6.5 | 6.5 | 12 | 12 | 17 | 17 | 22 | 22 | |
| 1) | At least 18 bar required at low pressure side | |||||||||||||
R902490888
AL A10F E 37 /52L-VCF10N002
R902562008
AL A10F E 37 /52R-VCF10N002
R902569479
AL A10F E 37 /52R-VCF10N002
R902469619
AL A10F E 37 /52R-VCF10N002
R992001822
AL A10F E 37 /52R-VCF10N002
R992000740
AL A10F E 37 /52R-VCF10N002 -S1437
R902429034
AL A10F E 37 /52R-VCF10N002 -S1437
R902547525
AL A10F E 37 /52R-VCF10N002 -SO481
R902505746
AL A10F E 37 /52R-VCF60N002 -S1884
R902504066
AL A10F E 37 /52R-VCF60N002 -S2452
R902410108
AL A10F E 37 /52W-VCF10N000
R902429037
AL A10F E 37 /52W-VCF10N000 -S1437
R992000741
AL A10F E 37 /52W-VCF10N000 -S1437
R902534826
AL A10F E 37 /52W-VCF10N000 -S1437
R902496328
AL A10F E 37 /52W-VCF10N000D
R902503157
AL A10F E 40 /52W-VCC66N000D -S3135
R902505418
AL A10F E 40 /52W-VCC66N000D -S3135
R902459434
AL A10F E 45 /52L-VCF10N002 -S1437
R992000879
AL A10F E 45 /52L-VCF10N002 -S1437
R902553921
AL A10F E 45 /52L-VCF66N002
R902573858
AL A10F E 45 /52L-VCF66N002
R902554746
AL A10F E 45 /52L-VCF66N002 -S4918
R902562997
AL A10F E 45 /52R-VCF10N002
R902511077
AL A10F E 45 /52R-VCF10N002 -S1437
R902570335
AL A10F E 45 /52W-VCF10N000
R910997241
AL A10F E 45 /52W-VCF10N000
R902534832
AL A10F E 45 /52W-VCF10N000
R902470265
AL A10F E 45 /52W-VCF10N000 -S1437
R902437373
AL A10F E 45 /52W-VCF10N000 -S1437
R992000783
AL A10F E 45 /52W-VCF10N000 -S1437
R902534820
AL A10F E 45 /52W-VCF10N000 -S5233
R902481098
AL A10F E 45 /52W-VCF10N000D
R902555827
AL A10F E 45 /52W-VCF10N000D
R902547163
AL A10F E 45 /52W-VCF10N000U
R902571238
AL A10F E 45 /52W-VCF16N000B
R902437684
AL A10F E 45 /52W-VCF60N000 -S1884
R902555084
AL A10F E 45 /52W-VCF66N000 -S4918
R902505540
AL A10F E 45 /52W-VCF95N000
R902544442
AL A10F E 58 /52R-VCF10N002
R902480029
AL A10F E 58 /52R-VCF10N002
R902504985
AL A10F E 58 /52R-VCF60N002 -S2452
R902537797
AL A10F E 58 /52W-VCF10N000
R902556964
AL A10F E 58 /52W-VCF10N000
R902481097
AL A10F E 58 /52W-VCF10N000D
R902504469
AL A10F E 63 /52L-VCF10N002 -S3763
R902505537
AL A10F E 63 /52L-VCF10N002 -S4455
R902540777
AL A10F E 63 /52R-VCF10N002
R902563115
AL A10F E 63 /52R-VCF10N002
R902541576
AL A10F E 63 /52W-VCF10N000
R902570732
AL A10F E 63 /52W-VCF10N000
R902552396
AL A10F E 63 /52W-VCF10N000B
