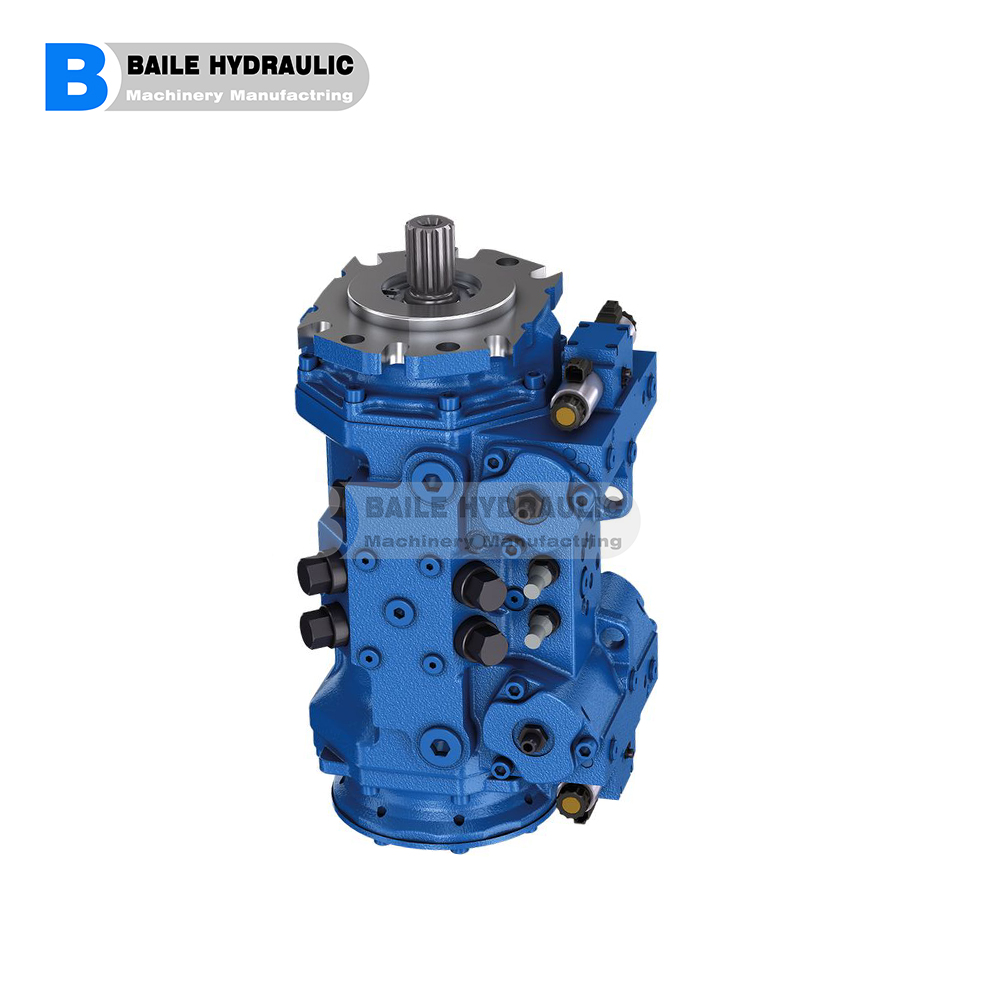

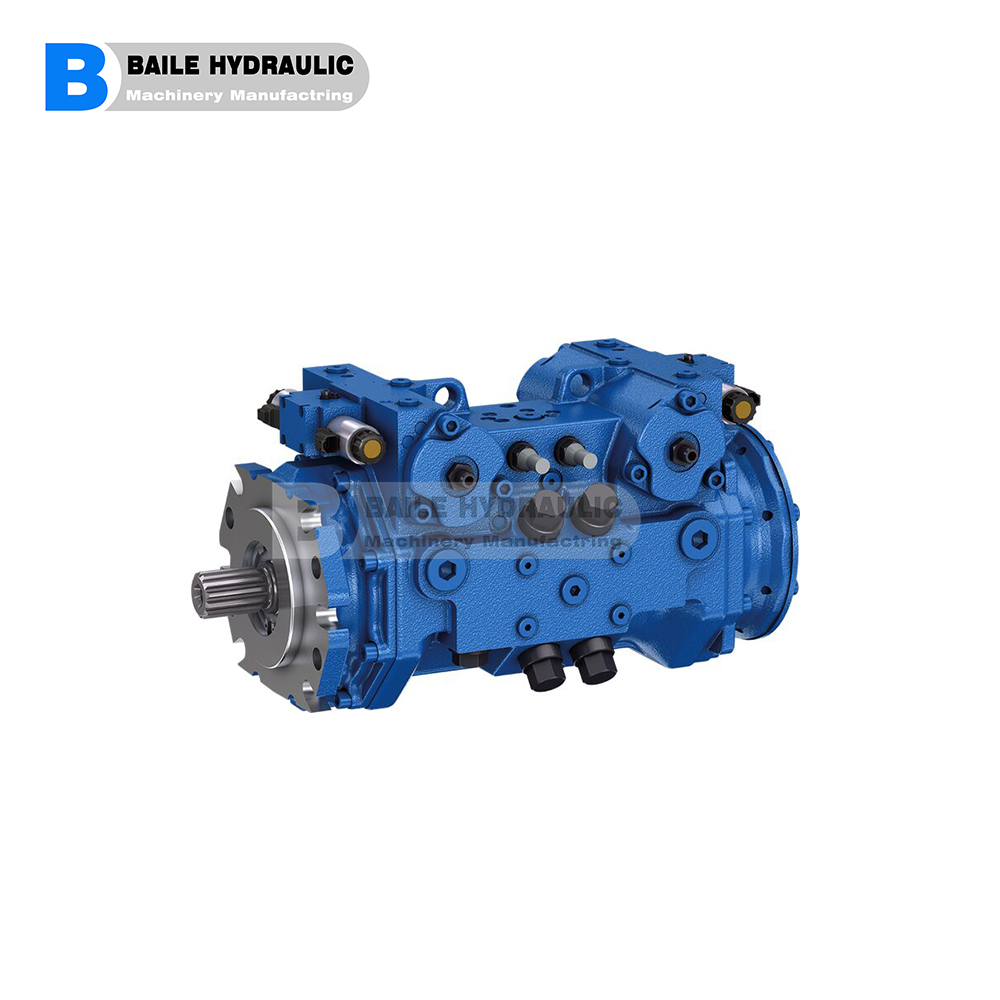

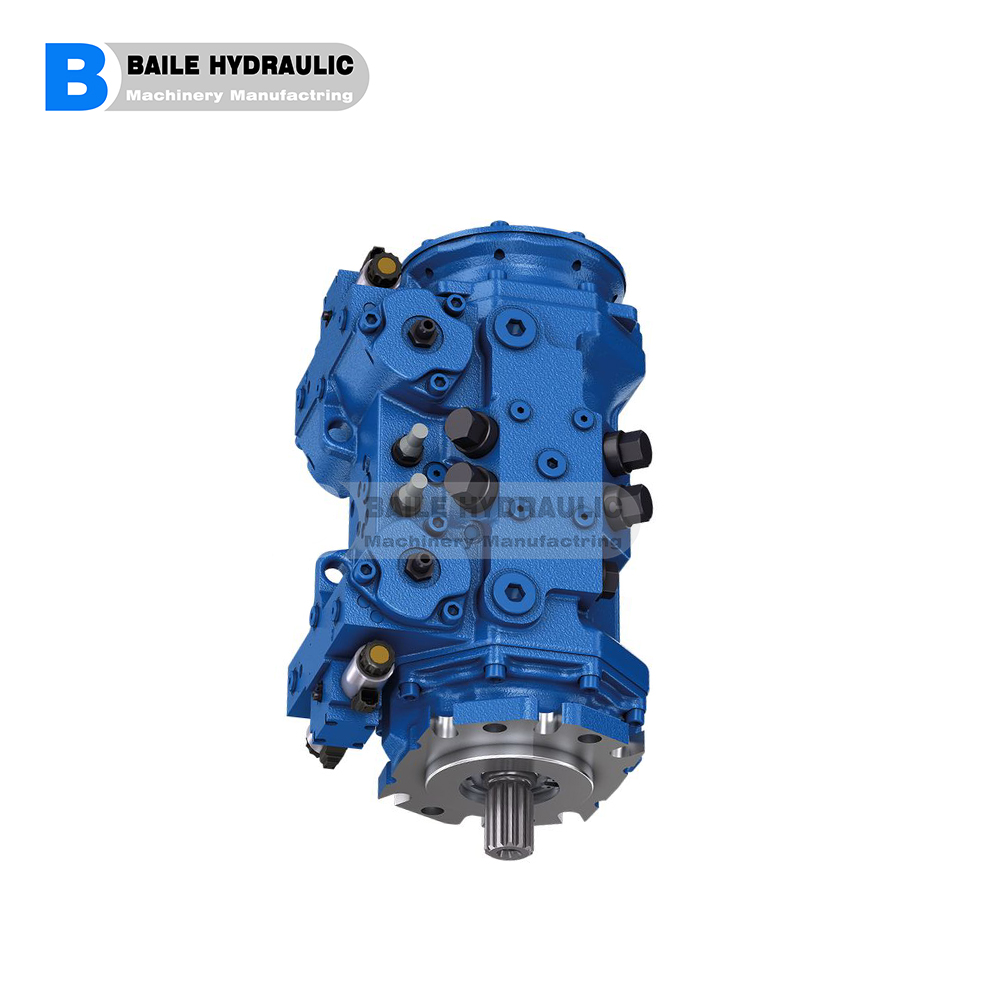

Rexroth A24VG A24VG065-065 A24VG085-085 A24VG110-110 A24VG125-125 Axial piston variable double pump

▶ Size 85–85, 110–85, 110–110, 125–85,
125–110, 125–125
▶ Nominal pressure 450 bar
▶ Maximum pressure 500 bar
▶ Closed circuit

Features
▶ Variable double pump with two axial piston rotary
groups with swashplate design for hydrostatic drives in
closed circuit
▶ The flow is proportional to the drive speed and
displacement
▶ Two mutually independent flows
▶ The flow can be infinitely varied by adjusting the
swashplate angle
▶ Flow direction changes smoothly when the swashplate
is moved through the neutral position
▶ Four pressure relief valves are provided on the
high-pressure side to protect the hydrostatic gear
(pump and motor) from overloading.
▶ The high-pressure relief valves also function as boost
valves
▶ The maximum boost pressure is limited by a built-in
low-pressure relief valve
▶ High pressure level for high power density and good
efficiency
▶ Compact design for tight installation conditions
▶ Optional through drive for mounting additional pumps

This field is required.
This field is required.
This field is required.
This field is required.
This field is required.
This field is required.

Contact Us
Categories: , Tags: , , , , , Brand:

Rexroth A24VG A24VG065-065 A24VG085-085 A24VG110-110 A24VG125-125 Axial piston variable double pump

The A24VG axial piston variable pump is designed for closed-circuit hydrostatic transmission systems requiring high power density, precise control, and reliable performance. Featuring an integrated charge pump and advanced control options, the A24VG is ideal for demanding mobile machinery operating under heavy-duty conditions.

Main Applications

Construction Machinery

  • Hydraulic excavators
  • Crawler excavators
  • Wheel loaders
  • Compact track loaders
  • Skid steer loaders
  • Telehandlers

Road Construction Equipment

  • Asphalt pavers
  • Cold milling machines
  • Road rollers
  • Soil stabilizers
  • Road reclaimers

Agricultural Machinery

  • High-horsepower tractors
  • Combine harvesters
  • Forage harvesters
  • Self-propelled sprayers
  • Sugar cane harvesters

Forestry Equipment

  • Forestry harvesters
  • Forwarders
  • Mulchers
  • Log loaders
  • Wood chipping machines

Material Handling Equipment

  • Reach stackers
  • Container handlers
  • Heavy-duty forklifts
  • Port and terminal vehicles

Mining and Off-Road Equipment

  • Mining service vehicles
  • Drilling rigs
  • Underground transport vehicles
  • Quarry machinery

Hydrostatic Drive Systems

  • Wheel drive systems
  • Track drive systems
  • Travel drive systems
  • Fan drive systems
  • Conveyor and auxiliary drive systems

Key Advantages

  • Designed specifically for closed-loop hydrostatic transmissions
  • High power density and transmission efficiency
  • Smooth acceleration and precise speed control
  • Integrated charge pump for simplified system design
  • Excellent low-speed performance and high starting torque
  • Reliable operation under continuous heavy-duty conditions
  • Reduced fuel consumption and improved machine productivity
The A24VG variable pump is an ideal solution for high-performance hydrostatic drive applications in construction, agriculture, forestry, mining, and material handling machinery where precise control, efficiency, and durability are essential.
Size 85-85 110-110 125-125
Displacement
geometric, per revolution		 Pump 1 Vg max cm³ 85.4 110.4 125
  Pump 2 Vg max cm³ 85.4 110.4 125
Nominal pressure   pnom bar 450 450 450
Maximum pressure   pmax bar 500 500 500
Maximum speed at Vg max nnom rpm 3300 3150 3000
  Intermittent 1) nmax rpm 3500 3350 3200
Flow pump 1 at Vg max and nnom qV nom l/min 280.5 346.5 375
Flow pump 2 at Vg max and nnom qV nom l/min 280.5 346.5 375
Power 2) at qV nom and Δpnom P kW 402 496 537
Torque at Vg max and Δpnom M Nm 1164 1506 1711
Weight (approx.)   m kg 147 155 155
1) At Δp ≥ 40 bar and t < 15 s
2) Δpnom = 430 bar

R902222323

A24VG065-065EP1EP1W0000/10ALC6S9B2S4A9-0

R902249957

A24VG065-065EP1EP1W0000/10ALC6S9B2S4C1-0

R902223185

A24VG065-065EP1EP1W0000/10DLC6S9B1S4B2-S

R902222479

A24VG065-065EP1EP1W0000/10MRC6S9B2S4A3-S

R902276694

A24VG065-065EPMEPMR000A/10DLC6S9B2S4C4-S

R902227972

A24VG065-065EPMEPMW000A/10DRC6S9C3S7B2-S

R902223186

A24VG065-65EP1EP1/10DL+AZPN-12-32

R902274739

EP1EP1R0000/10MRC6T1B2S4B2-S

R902205000

A24VG085-085EPMEPM00000/10DRE4T1CXS7A5-S

R902261012

A24VG085-085EPMEPM00000/10DRE4T1CXS7A5-S

R902233825

A24VG110-110EPMEPM00000/10DRE4T1C1V8A6-S

R902257905

A24VG110-110EPMEPM00000/10DRE4T1CXV8A6-S

R902239675

A24VG125-125EP2EP200000/10DRD6T2C4V8A6-S

R902245658

A24VG125-125EP2EP200000/10DRE4T2C2S7B2-S

R902233103

A24VG125-125EPMEPM00000/10DRC6T1B2S4A8-S

R902222186

A24VG125-125EPMEPM00000/10DRD6T2C4V8A8-S

R902201126

A24VG125-125EPMEPM00000/10DRE4T2C1V8A6-S

R902245764

A24VG125-125EPMEPM00000/10DRE4T2C4S7A6-S

R902233334

A24VG125-125EPMEPM00000/10DRE4T2C4S7A6-S

R902247491

A24VG125-125EPMEPM00000/10DRE4T2C4S7A6-S

R902257902

A24VG125-125EPMEPM00000/10DRE4T2CXV8A6-S
