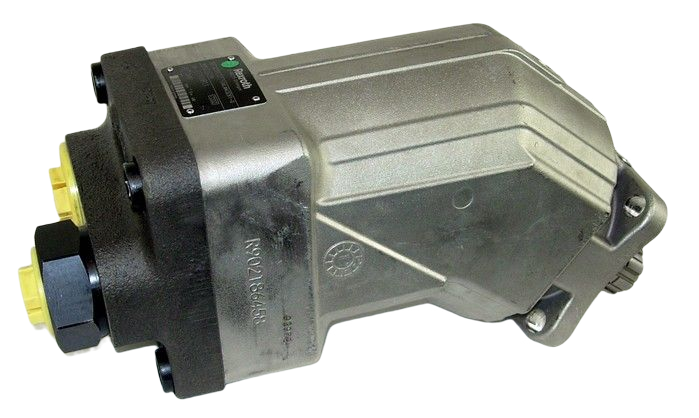

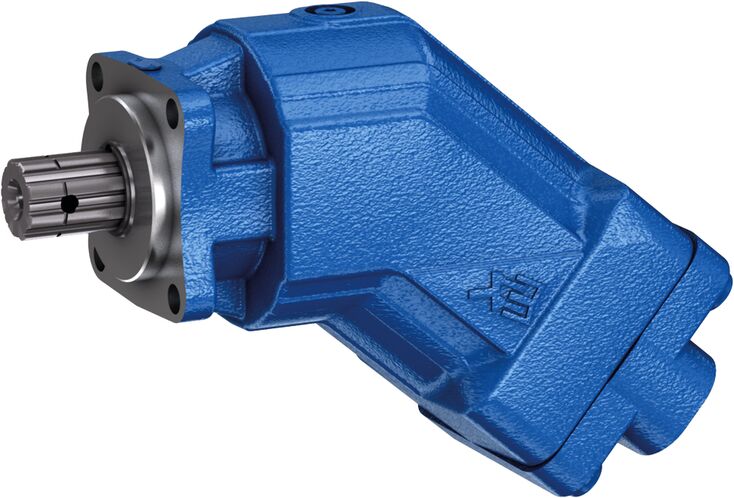

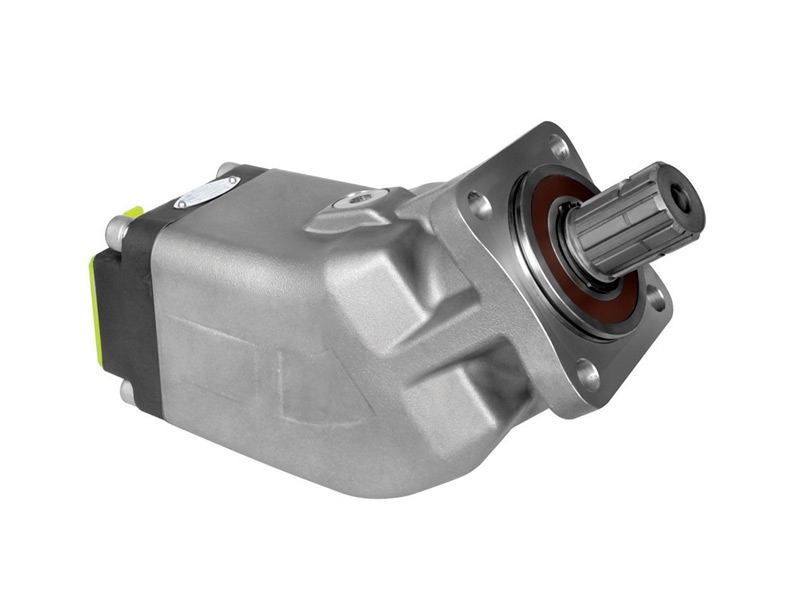

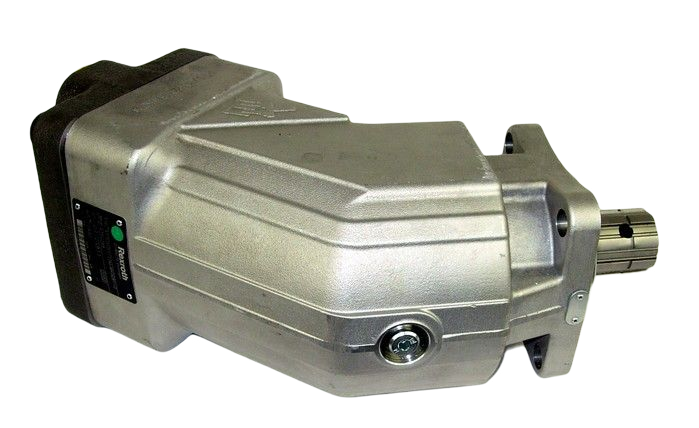

Rexroth A17FO23 A17FO32 A17FO45 Axial Piston Fixed Pump

▶ Sizes 23 to 107
▶ Nominal pressure 300 bar
▶ Maximum pressure 350 bar
▶ For commercial vehicles
▶ Open circuit

Features
▶ Fixed pump with axial tapered piston rotary group of
bent-axis design with special characteristics and dimensions for use in commercial vehicles
▶ The flow is proportional to the drive speed.
▶ Large-angle machine with 40° swivel angle, i.e. high
power density, compact dimensions, optimum efficiency, economical design
▶ Simple adjustment of direction of drive
▶ Self-priming
▶ No case drain line necessary
▶ Flange and shaft designed for direct mounting on the
power take-off of commercial vehicles
▶ Reduced noise

This field is required.
This field is required.
This field is required.
This field is required.
This field is required.
This field is required.

Contact Us
Categories: , Tags: , , , , , ,

Rexroth A17FO23 A17FO32 A17FO45 Axial Piston Fixed Pump

The A17FO fixed displacement axial piston pump is designed for open-circuit hydraulic systems requiring high pressure, high efficiency, and reliable continuous operation. Its robust construction and compact design make it suitable for demanding mobile and industrial applications where stable hydraulic power is essential.

Main Applications

Construction Machinery

  • Hydraulic excavators
  • Wheel loaders
  • Crawler bulldozers
  • Mobile cranes
  • Concrete pump trucks
  • Piling and foundation equipment

Road Construction Equipment

  • Asphalt pavers
  • Road rollers
  • Cold milling machines
  • Soil stabilizers
  • Road maintenance vehicles

Mining and Drilling Machinery

  • Surface mining equipment
  • Underground mining vehicles
  • Hydraulic drilling rigs
  • Crushing and screening plants
  • Tunneling machinery

Agricultural and Forestry Equipment

  • Large agricultural tractors
  • Combine harvesters
  • Sprayers and seeders
  • Forestry harvesters
  • Wood chippers and log loaders

Material Handling Equipment

  • Forklifts
  • Reach stackers
  • Container handlers
  • Port and terminal equipment
  • Heavy-duty lifting machinery

Industrial Hydraulic Systems

  • Hydraulic power units
  • Press machines
  • Metal forming equipment
  • Injection molding machines
  • Test benches and industrial drive systems

Marine and Special Vehicles

  • Deck machinery
  • Winch systems
  • Municipal service vehicles
  • Special-purpose hydraulic vehicles

Key Advantages

  • High-pressure capability for demanding applications
  • Fixed displacement design with stable output flow
  • High volumetric and mechanical efficiency
  • Compact structure and easy installation
  • Long service life with low maintenance requirements
  • Reliable performance under continuous heavy-duty operation
Size 23 32 45 63 80 107
Displacement
geometric, per revolution		 Vg cm³ 22.9 32 45.6 63 80.4 106.7
Nominal pressure pnom bar 350 350 350 350 350 350
Maximum pressure pmax bar 400 400 400 400 400 400
Maximum speed nnom 1) rpm 3050 2750 2650 2200 2150 2000
nmax 2) rpm 4300 3900 3800 3200 3100 2800
Flow at nnom qV l/min 70 88 121 139 173 213
Power at nnom and pnom P kW 41 51 71 81 101 124
Torque at pnom M Nm 127 178 254 351 448 594
Rotary stiffness c kNm/rad 2.56 3.12 4.18 6.25 8.73 11.2
Moment of inertia for rotary group JTW kg·m² 0.0012 0.0012 0.003 0.0042 0.0072 0.0116
Maximum angular acceleration ɑ rad/s² 6500 6500 14600 7500 6000 4500
Case volume V l 0.25 0.29 0.4 0.5 0.6 0.75
Mass moment MG Nm 4.7 4.7 8.6 9.9 15.3 20
Weight (approx.) m kg 5.9 5.9 8.4 9.3 12.3 15



R902241724

A17FO023/10NLWK0E81-0

R902250571

A17FO023/10NLWK0E81-0

R902189173

A17FO023/10NLWK0E81-0

R902163554

A17FO023/10NLWK0E81-0

R902162388

A17FO023/10NLWK0E81-0

R902230072

A17FO023/10NLWK0E81-0 *GO2EU*

R902200385

A17FO023/10NLWK0E81-S

R902206716

A17FO032/10NLWK0E81-0

R902163555

A17FO032/10NLWK0E81-0

R902162390

A17FO032/10NLWK0E81-0

R902250572

A17FO032/10NLWK0E81-0

R902241725

A17FO032/10NLWK0E81-0

R902230073

A17FO032/10NLWK0E81-0 *GO2EU*

R902200387

A17FO032/10NLWK0E81-S

R902255704

A17FO032/10NRWK0E81-Y

R902250573

A17FO045/10NLWK0E81-0

R902162392

A17FO045/10NLWK0E81-0

R902241726

A17FO045/10NLWK0E81-0

R902186004

A17FO045/10NLWK0E81-0

R902163893

A17FO045/10NLWK0E81-0

R902230074

A17FO045/10NLWK0E81-0 *GO2EU*

R902200389

A17FO045/10NLWK0E81-S

R902226067

A17FO045/10NRWK0E81-Y

R902248024

A17FO045/10NRWK0E81-Y
