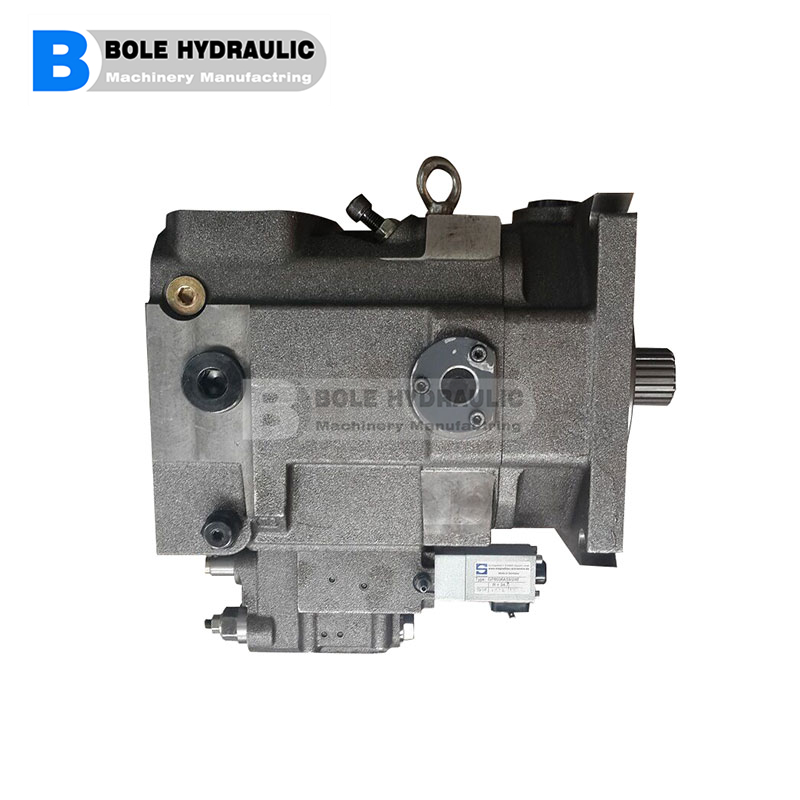

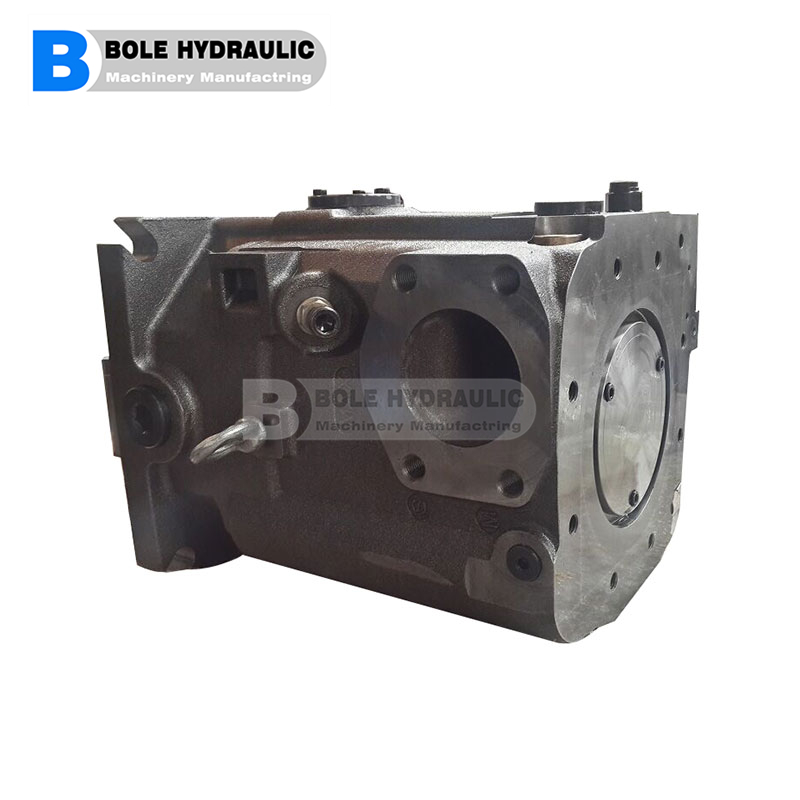

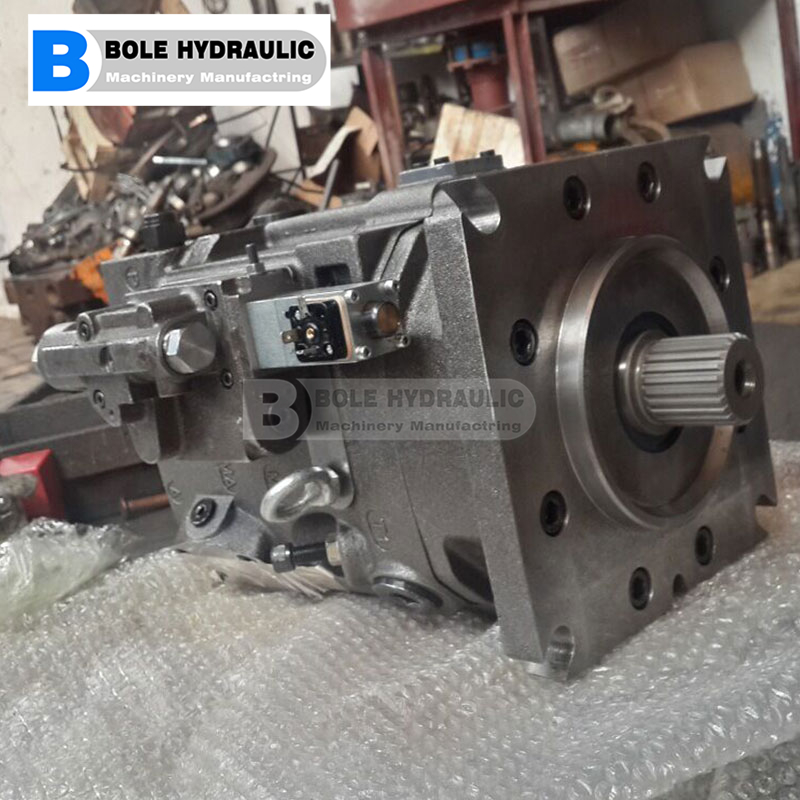

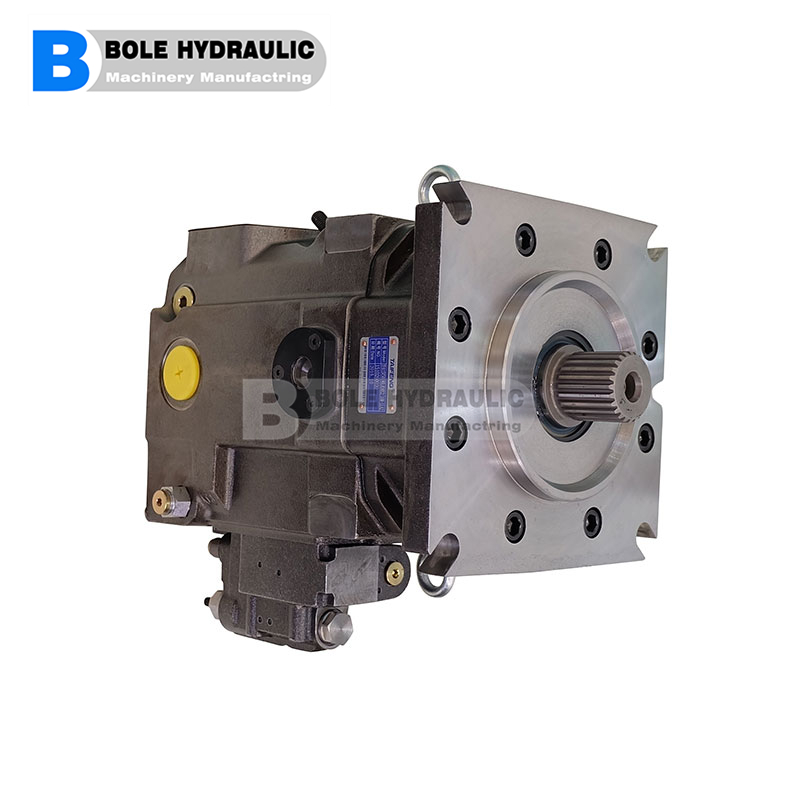

Rexroth A15VO A15VO280DRD A15VO280E2D A15VO280LRDG Axial piston variable pump

▶ Robust high-pressure pump for mobile applications
▶ Sizes 110 to 280
▶ Nominal pressure 350 bar (5100 psi)
▶ Maximum pressure 420 bar (6100 psi)
▶ Open circuit

Power controller
Stroke control
Pressure controller

Features
▶ Variable pump with axial piston rotary group in
swashplate design for hydrostatic drives in open circuit.
▶ For use in mobile applications.
▶ Flow is proportional to the drive speed and
displacement.
▶ Flow can be infi nitely varied by controlling the
swashplate angle.
▶ Special control device program with dynamic control
behavior and swivel angle sensor with Hall effect for
fully electronifi ed pump control.
▶ Noise-optimized throughout the entire operating range.
▶ The robust and low-wear swivel angle positioning
allows for a long service life.
▶ Ready for Hybrid: ±100% swivel angles allow for
regenerative operation in the motor quadrant area
up to nominal pressure.
▶ Compact design
▶ High effi ciency
▶ High power density
▶ U.S. Patent Numbers 8,261,654 and 8,418,599

This field is required.
This field is required.
This field is required.
This field is required.
This field is required.
This field is required.

Contact Us
Categories: , Tags: , , , , , , , Brand:

Rexroth A15VO280DRD A15VO280E2D A15VO280LRDG A15VSO110E2 Axial piston variable pump

The A15VO110 axial piston variable pump is engineered for open-circuit hydraulic systems requiring high power output, precise flow control, and exceptional reliability. It is widely used in heavy-duty mobile machinery and industrial hydraulic applications.

Main Applications

Construction Machinery

  • Hydraulic excavators
  • Wheel loaders
  • Backhoe loaders
  • Crawler dozers
  • Mobile cranes
  • Concrete pump trucks

Road Construction Equipment

  • Asphalt pavers
  • Road rollers
  • Cold milling machines
  • Stabilizers and recyclers

Mining Equipment

  • Surface mining machinery
  • Drilling rigs
  • Crushing and screening equipment
  • Underground mining vehicles

Agricultural and Forestry Machinery

  • Large agricultural tractors
  • Harvesters
  • Sprayers
  • Forestry harvesters
  • Wood processing equipment

Material Handling Equipment

  • Reach stackers
  • Container handlers
  • Heavy-duty forklifts
  • Port machinery

Industrial Hydraulic Systems

  • Hydraulic power units
  • Press machines
  • Metallurgical equipment
  • Industrial drive systems
  • Test benches

Key Advantages

  • High power density and efficiency
  • Precise variable displacement control
  • Robust design for demanding operating conditions
  • Long service life and low maintenance requirements
  • Suitable for continuous heavy-duty operation

Table of values

Size 110 145 175 210 280 145 175 210 280
Version Standard With charge pump
Displacement
geometric, per revolution		 Vg max cm³ 110 145 175 210 280 145 175 210 280
Nominal pressure pnom bar 350 350 350 350 350 350 350 350 350
Maximum pressure pmax bar 420 420 420 420 420 420 420 420 420
Maximum speed 1) at Vg max nnom rpm 2400 2300 2150 2000 1800 2600 2500 2350 2150
Flow at Vg max and nnom qV nom l/min 264 334 376 441 504 377 438 525 644
Power at qV nom and pnom P kW 154 195 219 257 294 220 255 306 376
Torque at Vg max and pnom M Nm 613 808 975 1170 1560 808 975 1170 1560
Weight (approx.) m kg 64 79 97 111 143 92 110 125 148

1)            These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt

R902563759

A15VO280DRDGA00/11MR+P2GH5-3X+GF2-2X/016

R902563760

A15VO280DRDGA00/11MRVE4B4PC3S90-0

R902573237

A15VO280E2DGCPB/11MR+A11VO40EP2G/10R

R902573238

A15VO280E2DGCPB/11MRVE4T2PB5S5G-0

R902563648

A15VO280E2DGT6BHK/11ML+A10VO71ED72/31L&

R902570276

A15VO280E2DRCPB/11MRVE4T2EB5S5G-0

R902556329

A15VO280LRDGE2CPB/11MRVE4T1PEC3S7D-0

R902563650

A15VO280LRDGE2CPB/11MRVE4T1PU000D

R902564446

A15VO280LRDGE2CPB/11MRVE4T1PU000G-0

R902562533

LA11VLO280DRS0A00/41MRVE4A4PB5S40-0

R902563792

LA11VLO280E2DRCP0/41MR+LA11VLO280E2DR&

R902564217

LA11VLO280E2DRCP0/41MRVE4A4PE4A40-0

R902564219

LA11VLO280E2DRCP0/41MRVE4A4PU0000-0

R902563676

LA11VLO280L4DRE2CPK/41ML+LA10VO45+AZPN&

R902563679

LA11VLO280L4DRE2CPK/41ML+LA10VO45ED72

R902572037

LA11VLO280L4DRS0AP0/41ARVE4T2PB3S40-0

R902569269

LA11VLO280L4DRS0AP0/41ARVE4T3PE4T20-0

R902569363

LA11VLO280L4S0AP0/41MRVE4A4PU0000-SE

R902572026

LA11VLO280L4S0DP0/41+LA11VLO280L4S0DP0

R902571757

LA11VLO280L4S0DP0/41MRVE4A4PE4A40-SE

R902571759

LA11VLO280L4S0DP0/41MRVE4A4PE4T10-SE

R902567480

LA11VLO280L5DRE2CPK/41MLVE4A4PU0000-0

R902567896

LA11VLO280L5DRH4C0K/41MLVE4A4PU0000-0

R902571041

LA11VLO280LRDRE2BP0/41MRVE4A4PE4A40-0

R902569365

LA11VLO280LRDRE2CP0/41MRVE4A4PE4A40-0

R902563682

LA11VLO280LRDRH3A00/41MRVE4T2PU0000-0

R902571780

LA11VLO280LRDRS0D0B/41MLVE4A4PU0000-0E

R902571755

LA11VLO280LRS0D0B/41MRVE4A4PU0000-SE

R902550547

LA11VLO280PRS0D0K/41MRVE4T3PC3S70-0E

R902570859

LA11VLO280PRS0D0K/41MRVE4T3PC3Z80-0E

R902494997

LA11VO175E2S0APK/40MRVE4A21ED4T10-S

R902536775

LA11VO210L5E2AP0/40DR+A4VG71DWD1/32R+&

R902541720

LA11VO210L5E2AP0/40DRVG3A21EC3Z80-0

R902573245

LA15VLO280PRS0D0K/11MRVE4T3PC3Z80-0E

R902571039

LA15VO280E2DGT6BHK/11ML+LA10VO71ED72/31L

R902571040

LA15VO280E2DGT6BHK/11MLVE4A4PC5S70-0

R902563008

LA15VO280E2DRCP0/11MR+LA10VO71DR/31R &

R902563764

LA15VO280E2DRCP0/11MRVE4A4PC5S70-0C

R902565108

LA15VSO175DPA0V/11MRVE4A2PC3S70-0
