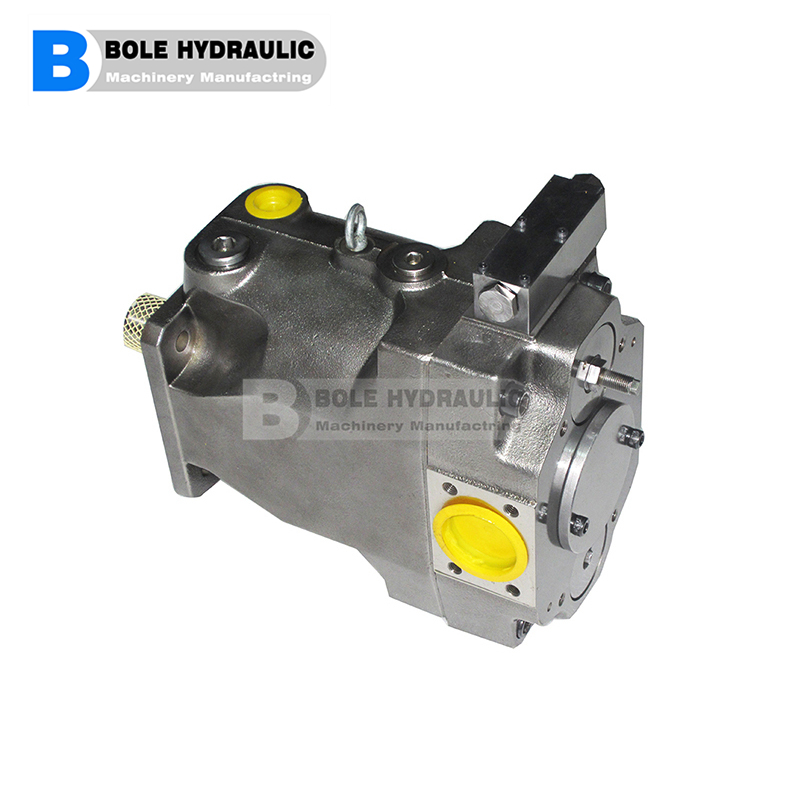

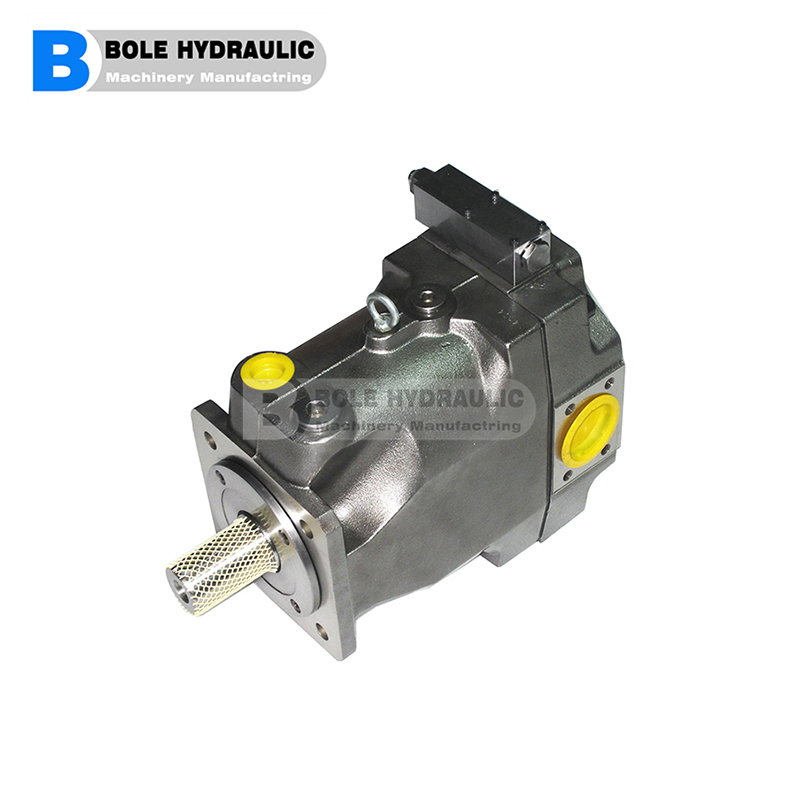

Parker PV180 Variable Displacement Axial Piston Pump

Control Options

Parker PV180 can be equipped with different regulators:

Control Code Function
Pressure Compensator Maintains preset system pressure
Power Compensator Limits input torque and protects prime mover
Load Sensing Control Adjusts flow according to system demand
Electro-Hydraulic Control Electronic proportional displacement adjustment
Remote Pressure Control External pressure adjustment

Get Free Quote

Get Free Quote
Categories: , Tags: , , , , , , , , , Brand:

Parker PV180 Application Range

1. Industrial Hydraulic Systems

PV180 is commonly used in:

  • Hydraulic presses
  • Steel mills
  • Plastic injection molding machines
  • Machine tools
  • Hydraulic test benches

Advantages:

  • Precise flow control
  • High pressure capability
  • Energy-efficient operation

2. Construction Machinery

Applications:

  • Large excavators
  • Drilling rigs
  • Concrete machinery
  • Foundation equipment

Benefits:

  • High power density
  • Reliable operation under shock loads
  • Long maintenance intervals

3. Marine and Offshore Equipment

Typical applications:

  • Deck cranes
  • Winches
  • Steering systems
  • Offshore hydraulic power packs

PV180 provides stable performance under continuous operation.

4. Mining Equipment

Used in:

  • Mining hydraulic systems
  • Crushers
  • Conveyor drives
  • Heavy-duty machinery

The large displacement design allows high hydraulic output with fewer pumps.

Parker PV180 Technical Specifications

Parameter PV180
Pump Type Variable displacement axial piston pump
Series Parker PV / PVplus Series
Design Swash plate axial piston design
Circuit Type Open circuit
Maximum Displacement 180 cm³/rev
Rated Pressure 350 bar (5000 psi)
Maximum Pressure 420 bar (6000 psi, intermittent)
Maximum Speed Approx. 2200 rpm
Flow @ 1500 rpm Approx. 270 L/min
Flow @ 1800 rpm Approx. 324 L/min
Input Power @ 350 bar Approx. 210 kW
Weight Approx. 90 kg
Mounting Interface ISO 3019/2 flange
Rotation Clockwise / Counter-clockwise
Control Options Pressure, power, electro-hydraulic control

PV180L1K1T1NFWS
PV180R9K1T1NFWS
PV180R1K1T1NMC1
PV180R1K1T1VZCC
PV180R1L1D1NUPR
PV180R1K1T1WMM1
PV180R1K1T1VFR1
PV180R1L1D1NUPR
PV180R1K1T1NULC
PV180R1K1T1NFF1
PV180R1K1T1VMFC
PV180R1K1T1NFFP
PV180R1K1T1VMM1
PV180R1K1T1NUC1
PV180R1K1T1NWLC
PV180R1K1T1WMR1
PV180L1D1T1NMMC
PV180R1L1T1NSCC
PV180R1K8S1NFWS
PV180R1K4T1NFR1
PV180R1K1T1NMTP
PV180R1K8T1NFWS
