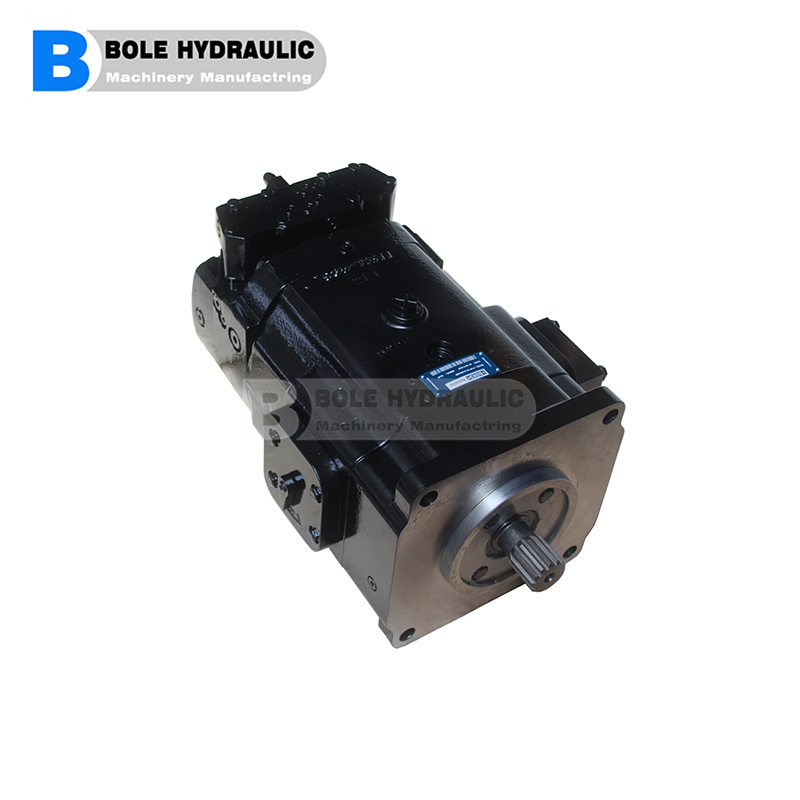

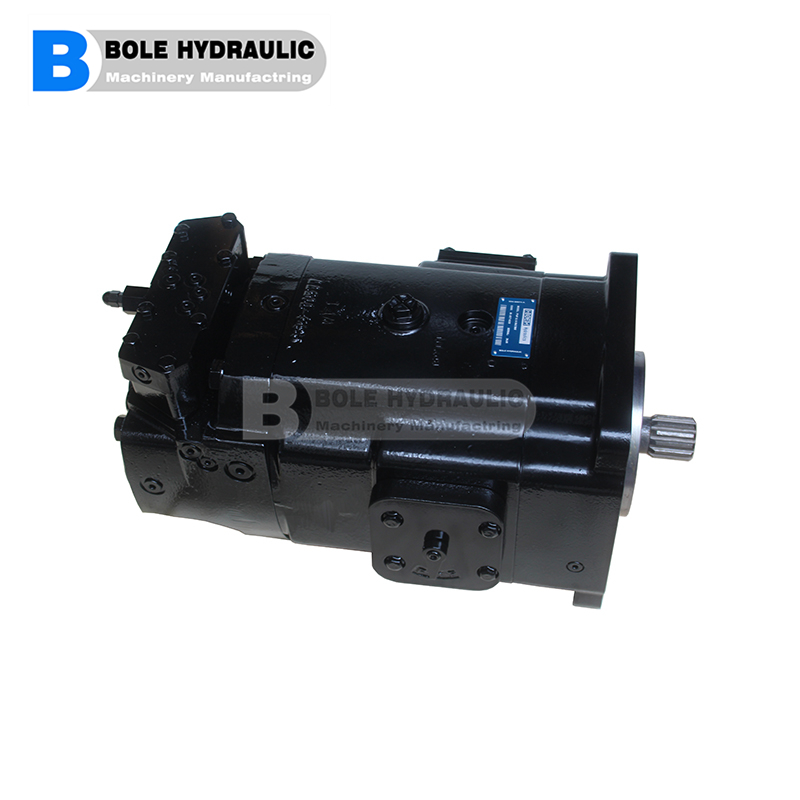

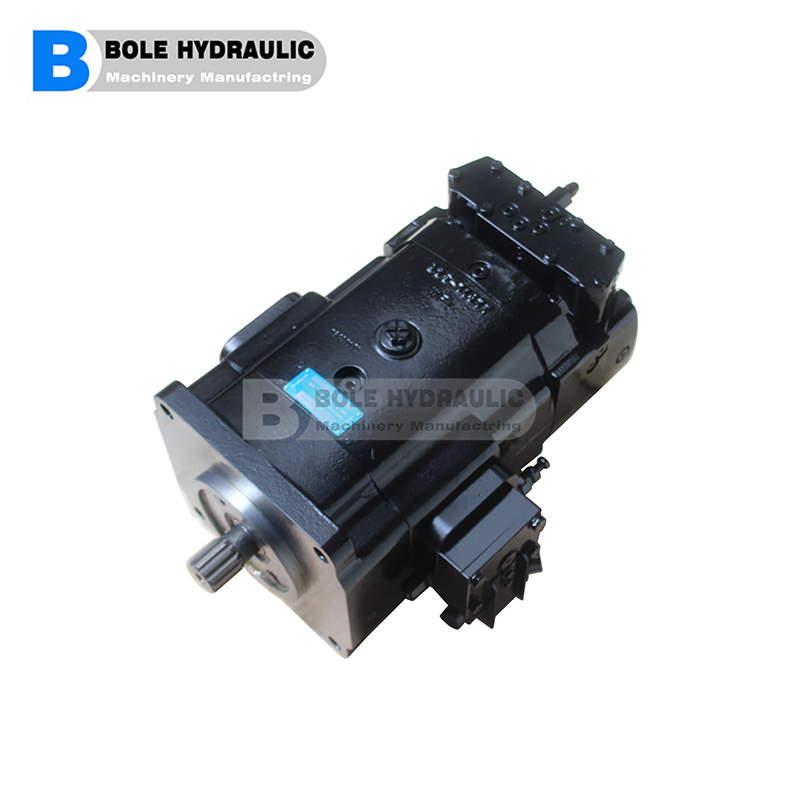

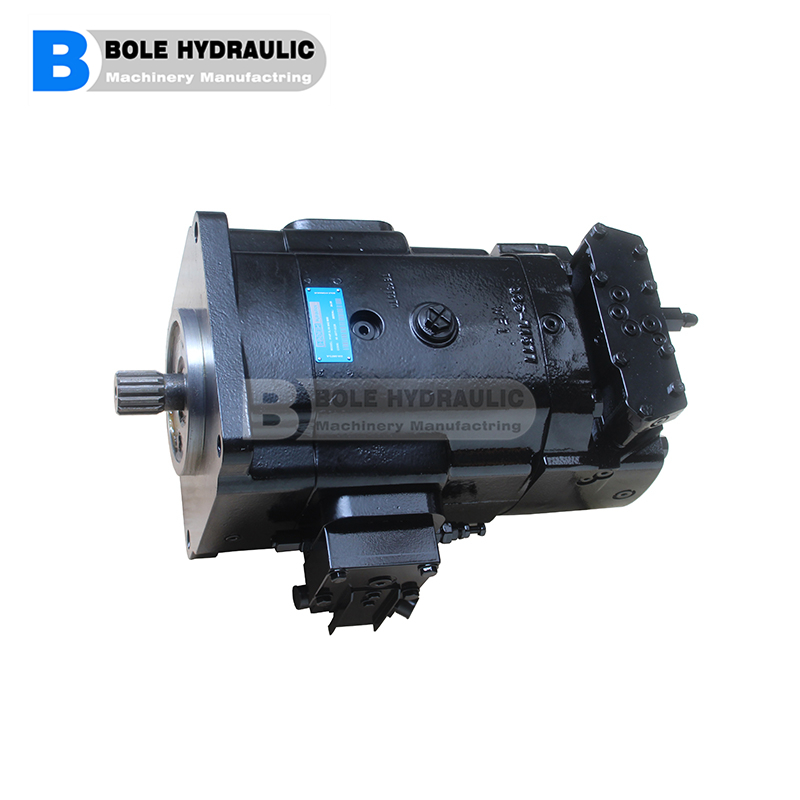

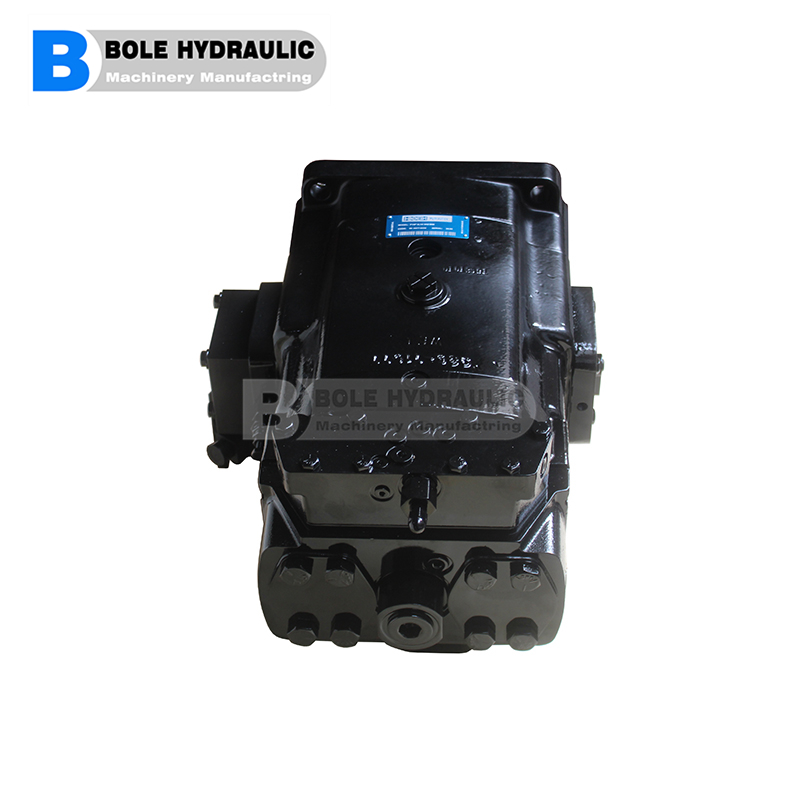

Parker Denison Gold Cup P14 Hydraulic Pump Replacment P14P 8R1C 9A2B00

Parker P14P supports multiple control configurations including:

  • Hydraulic servo control
  • Electro-hydraulic servo control
  • Manual override control
  • Torque limiter control
  • Pressure compensation control

The servo system provides:

  • Low hysteresis
  • Fast response
  • Precise displacement adjustment
  • Excellent machine controllability

  • P14P pumps are commonly used in:

    • Ship propulsion systems
    • Deck machinery
    • Steering systems
    • Offshore platforms
    • Hydraulic winches

Get Free Quote

Get Free Quote
Categories: , Tags: , , , , , , , , , , , , , Brand:

Parker Gold Cup P14 Application Fields

Marine Industry

  • Marine propulsion systems
  • Deck machinery
  • Hydraulic winches
  • Offshore equipment

Mining Industry

  • Mining vehicles
  • Crushers
  • Conveyors
  • Drilling equipment

Construction Machinery

  • Large cranes
  • Tunnel boring machines
  • Heavy-duty transmission systems

Industrial Equipment

  • Steel mills
  • Hydraulic test systems
  • Large hydraulic power units

Parker P14 Series Main Technical Parameters

Parameter Specification
Product Type Variable displacement axial piston pump
Series Parker Denison Gold Cup P14
Displacement 14.0 in³/rev (229 cc/rev)
Reduced displacement options 12.5 in³/rev (205 cc/rev), 10.9 in³/rev (179 cc/rev)
Circuit Type Closed circuit
Design Swash plate axial piston design
Maximum Pressure Approx. 420 bar
Rated Pressure Approx. 350 bar
Maximum Speed Approx. 2400 rpm (depending on configuration)
Control Options Servo, hydraulic stroker, electro-hydraulic, torque limiter
Rotation Clockwise / Counter-clockwise
Application Heavy-duty hydrostatic transmission

Parker Denison P14P Series (Variable Displacement Pump)

P14P2R1A
P14P2R1B
P14P3R1A
P14P3R1B

P14P2R1A-F40A
P14P2R1A-F40B
P14P2R1A-G40A
P14P2R1A-G40B
P14P2R1A-S40A
P14P2R1A-S40B

P14P2R1B-F40A
P14P2R1B-F40B
P14P2R1B-G40A
P14P2R1B-G40B
P14P2R1B-S40A
P14P2R1B-S40B

P14P3R1A-F40A
P14P3R1A-G40A
P14P3R1A-S40A

P14P3R1B-F40A
P14P3R1B-G40A
P14P3R1B-S40A

Parker P14S Series (Servo Controlled Pump)

P14S2R1A
P14S2R1B
P14S3R1A
P14S3R1B

P14S2R1A-F40A
P14S2R1A-F40B
P14S2R1A-G40A
P14S2R1A-G40B

P14S2R1A-E40A
P14S2R1A-E40B
P14S2R1A-T40A

P14S2R1B-F40A
P14S2R1B-G40A
P14S2R1B-E40A
P14S2R1B-T40A

P14S3R1A-F40A
P14S3R1A-G40A
P14S3R1A-E40A

P14S3R1B-F40A
P14S3R1B-G40A
P14S3R1B-E40A

Parker P14L Series (Special Rotation Pump)

P14L2R1A
P14L2R1B
P14L3R1A
P14L3R1B

P14L2R1A-F40A
P14L2R1A-G40A
P14L2R1A-S40A

P14L2R1B-F40A
P14L2R1B-G40A
P14L2R1B-S40A

P14L3R1A-F40A
P14L3R1A-G40A
P14L3R1B-S40A

Parker P14D Series (Special Control Configuration)

P14D2R1A
P14D2R1B
P14D3R1A
P14D3R1B

P14D2R1A-F40A
P14D2R1A-G40A
P14D2R1A-E40A

P14D2R1B-F40A
P14D2R1B-G40A
P14D2R1B-E40A

P14D3R1A-F40A
P14D3R1A-G40A
P14D3R1B-E40A

Parker P14V Series (Variable Configuration)

P14V2R1A
P14V2R1B
P14V3R1A
P14V3R1B

P14V2R1A-F40A
P14V2R1A-G40A
P14V2R1A-S40A

P14V3R1A-F40A
P14V3R1A-G40A
P14V3R1A-E40A

Parker P14R Series (Special / Through Drive Configuration)

P14R2R1A
P14R2R1B

P14R2R1A-F40A
P14R2R1A-G40A
P14R2R1A-S40A

P14R2R1B-F40A
P14R2R1B-G40A
P14R2R1B-E40A

Parker P14P 8R1C Series Complete Models

P14P8R1C9A2B00
P14P8R1C9A2A00
P14P8R1C9A2C00
P14P8R1C9A4B00
P14P8R1C9A4A00
P14P8R1C9A4C00

P14P8R1C9B2B00
P14P8R1C9B2A00
P14P8R1C9B4B00

P14P8R1C9C2B00
P14P8R1C9C4B00

P14P8R1C8A2B00
P14P8R1C8A4B00

P14P8R1C7A2B00
P14P8R1C7A4B00

Parker P14P 8R1C 9A Control Series

Electro-Hydraulic Servo Control

P14P8R1C9AEB00
P14P8R1C9AE00A0
P14P8R1C9AEB00A0
P14P8R1C9AE000A0

Hydraulic Servo Control

P14P8R1C9A2B00
P14P8R1C9A2A00
P14P8R1C9A4B00
P14P8R1C9A4A00

P14P8R1CF40B00
P14P8R1CG40B00

Torque Limiter Control

P14P8R1C9ATB00
P14P8R1CT40B00
P14P8R1CT40A00

Pressure Compensator Control

P14P8R1C9APB00
P14P8R1CP40B00
P14P8R1CP40A00

Through Drive / Special Configuration

P14P8R1C9A2B00X
P14P8R1C9A2B00XB0
P14P8R1C9A2B00XC0
P14P8R1C9A2B00XD0
P14P8R1C9A2B00XE0

Parker P14P Other Shaft / Rotation Variants

Left Rotation

P14P8L1C9A2B00
P14P8L1C9A4B00
P14P8L1C9A2A00
P14P8L1C9A4A00

Right Rotation

P14P8R1C9A2B00
P14P8R1C9A4B00
P14P8R1C9A2A00
P14P8R1C9A4A00

More P14P Model Examples

P14P3R1C9A2B00
P14P3R1C9A4B00
P14P3R1C8A2B00

P14P4R1C9A2B00
P14P4R1C9A4B00

P14P5R1C9A2B00
P14P5R1C9A4B00

P14P8R1C9A2B00XB0
P14P8R1C9A2B00XC0

P14P8R1C9A2B01XD0
P14P8R1C9A2B01XE0

P14 Control Code Examples

Code Control
M Manual Control
S Servo Control
F Hydraulic Stroker Control
G Servo + Override Control
E Electro-Hydraulic Control
T Torque Limiter Control
P Pressure Compensator
C Cylinder Servo Control
