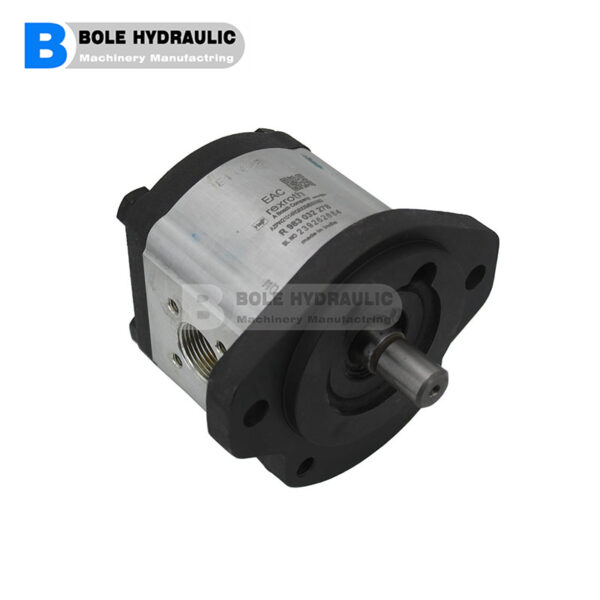

Rexroth AZPG AZPU External gear pump High Performance
▶ Platform G
▶ Fixed displacement
▶ Size 22 … 100
▶ Continuous pressure up to 250 bar
▶ Intermittent pressure up to 280 bar
Features
▶ Consistently high quality due to high-volume series
production
▶ Long service life
▶ Slide bearings for high loading
▶ Drive shafts conforming to ISO or SAE and
customer-specific solutions
▶ Line connections: Connection flanges or screw-in
threads
▶ Combinations of several pumps possible
Rexroth AZPG AZPU External gear pump High Performance
The AZPG series external gear pump is a high-performance fixed-displacement hydraulic pump designed for medium- and high-pressure hydraulic systems. As the largest platform within the AZP gear pump family, the AZPG series provides higher flow capacity and greater displacement options, making it ideal for heavy-duty mobile and industrial applications.
Manufactured with precision-machined gears and high-load slide bearings, the AZPG pump delivers excellent volumetric efficiency, stable performance, and long service life under demanding operating conditions. It is available with various mounting flanges, shaft configurations, and port connections to meet diverse OEM requirements.
Applications
The AZPG series is widely used in hydraulic systems requiring high flow output, reliable pressure generation, and continuous-duty operation.
Construction Equipment
- Wheel loaders
- Excavators
- Backhoe loaders
- Mobile cranes
- Road rollers
- Asphalt pavers
- Concrete pumping equipment
- Drilling and foundation machinery
Agricultural Machinery
- Large tractors
- Combine harvesters
- Sprayers
- Balers
- Forestry harvesters
- Irrigation systems
- Feed processing equipment
Material Handling Equipment
- Forklifts
- Reach stackers
- Telehandlers
- Container handling systems
- Heavy-duty lifting equipment
Industrial Hydraulic Systems
- Hydraulic power units (HPUs)
- Metal forming presses
- Injection molding machines
- Machine tools
- Packaging machinery
- Conveyor and automation systems
Municipal & Utility Vehicles
- Refuse collection trucks
- Street sweepers
- Snow removal vehicles
- Utility service trucks
- Vacuum and maintenance vehicles
Auxiliary Hydraulic Systems
- Fan drive systems
- Steering circuits
- Lubrication systems
- Cooling circuits
- Winches and lifting mechanisms
Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | External Gear Pump |
| Design | Fixed Displacement |
| Platform | G Series |
| Displacement Range | 22.5 – 100 cm³/rev |
| Rotation Direction | Clockwise or Counterclockwise |
| Continuous Operating Pressure | Up to 250 bar |
| Intermittent Pressure | Up to 280 bar |
| Peak Pressure | Up to 300 bar (depending on model) |
| Speed Range | 500 – 3500 rpm |
| Maximum Flow Rate | Up to approximately 300 L/min |
| Mounting Options | ISO and SAE Flanges |
| Shaft Options | Keyed, Splined, and Tapered Shafts |
| Hydraulic Fluid | Mineral Oil (HLP/HV) |
| Operating Temperature | -20°C to +80°C |
| Filtration Requirement | ISO 4406 20/18/15 or better |
| Volumetric Efficiency | Up to 95% |
| Weight | Approximately 10 – 25 kg depending on model |
R918BK6146
AZPG-22-070RNM07PB-S0304
R918C06146
AZPG-22-070RNM07PB-S0304
0510815002
AZPG-22-070RNM07PB-S0304
R918QM6146
AZPG-22-070RNM07PB-S0304
0517725322
AZPU-22-022LCB20MB
0517725329
AZPU-22-022LDC07KB
0517725026
AZPU-22-022RCB20MB
0517725033
AZPU-22-022RDC07KB
0517725323
AZPU-22-025LCB20MB
0517725330
AZPU-22-025LDC07KB
0517725027
AZPU-22-025RCB20MB
0517725034
AZPU-22-025RDC07KB
0517725324
AZPU-22-028LCB20MB
0517725331
AZPU-22-028LDC07KB
0517725028
AZPU-22-028RCB20MB
0517725035
AZPU-22-028RDC07KB
0517725325
AZPU-22-032LCB20MB
0517725310
AZPU-22-032LCC20KB-S0352
0517725332
AZPU-22-032LDC07KB
0517725029
AZPU-22-032RCB20MB
0517725036
AZPU-22-032RDC07KB
R918C06612
AZPU-22-032RDC20KB
0517725051
AZPU-22-032RDC20KB
R918QM6612
AZPU-22-032RDC20KB
0517725010
AZPU-22-032RDC20PB
0517725326
AZPU-22-036LCB20MB
0517725333
AZPU-22-036LDC07KB
0517725030
AZPU-22-036RCB20MB
0517725037
AZPU-22-036RDC07KB
1519222828
AZPU-22-036RDC07MM
0517725047
AZPU-22-036RDC20KB
R918QM6574
AZPU-22-036RDC20KB
R918C06574
AZPU-22-036RDC20KB
1517223320
AZPU-22-036RDC20KM
0517725013
AZPU-22-038RDC20KB
0517725014
AZPU-22-038RDC20KX-S0416
0517725327
AZPU-22-040LCB20MB
0517725334
AZPU-22-040LDC07KB
0517725031
AZPU-22-040RCB20MB
0517725038
AZPU-22-040RDC07KB
0517725328
AZPU-22-045LCB20MB
0517725335
AZPU-22-045LDC07KB
0517725032
AZPU-22-045RCB20MB
0517725039
AZPU-22-045RDC07KB
0517725048
AZPU-22-045RDC20KB
R918C06576
AZPU-22-045RDC20KB
R918QM6576
AZPU-22-045RDC20KB
R918C06324
AZPU-22-045REC07KB-S0040
R918QM6324
AZPU-22-045REC07KB-S0040
0517725045
AZPU-22-045REC07KB-S0040
0517825301
AZPU-22-050LCB20MB
0517825304
AZPU-22-050LDC07KB
0517825001
AZPU-22-050RCB20MB
0517825004
AZPU-22-050RDC07KB
1517223102
AZPU-22-050REC07PM
0517825302
AZPU-22-056LCB20MB
0517825305
AZPU-22-056LDC07KB
0517825002
AZPU-22-056RCB20MB
0517825005
AZPU-22-056RDC07KB
R918QM6326
AZPU-22-056REC07KB-S0039
R918C06326
AZPU-22-056REC07KB-S0039
0517825007
AZPU-22-056REC07KB-S0039
0517825303
AZPU-22-063LCB20MB
0517825306
AZPU-22-063LDC07KB
0517825003
AZPU-22-063RCB20MB
0517825006
AZPU-22-063RDC07KB
0517815002
AZPU-22-070RNM07PB-S0304
0517815001
AZPU-22-070RNM07PV10015-S0304
0517768001
AZPUS-22-036/014RDC2020KB
0517765006
AZPUSS-22-050/022/016REC072020PB-S0514
