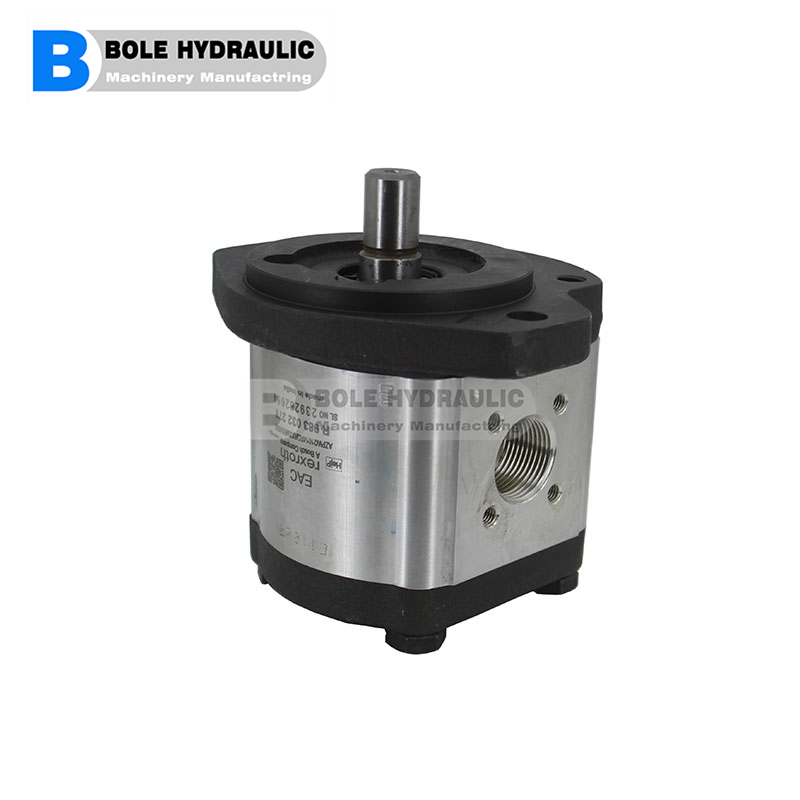

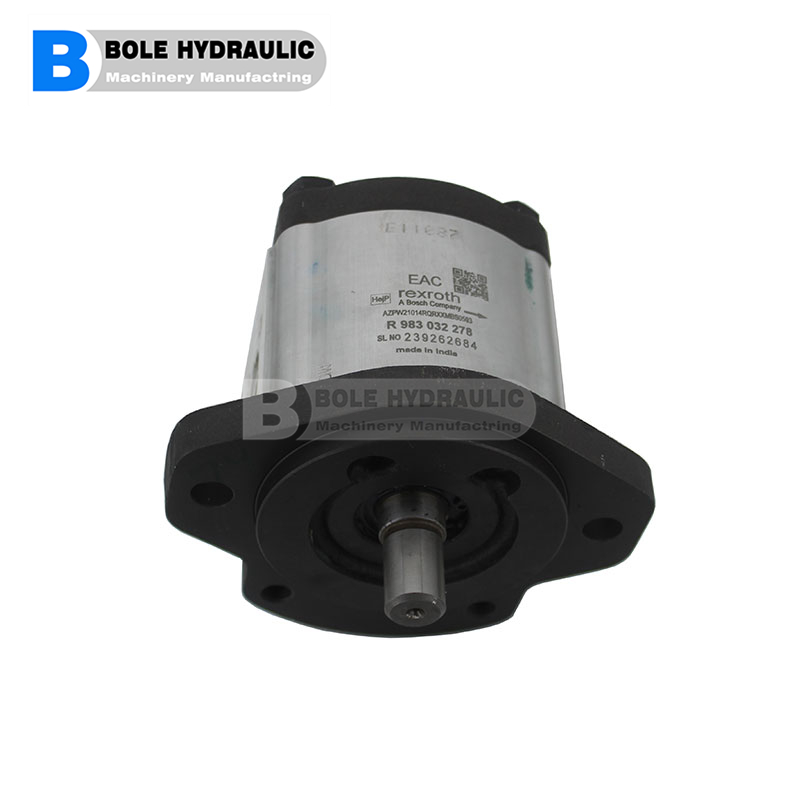

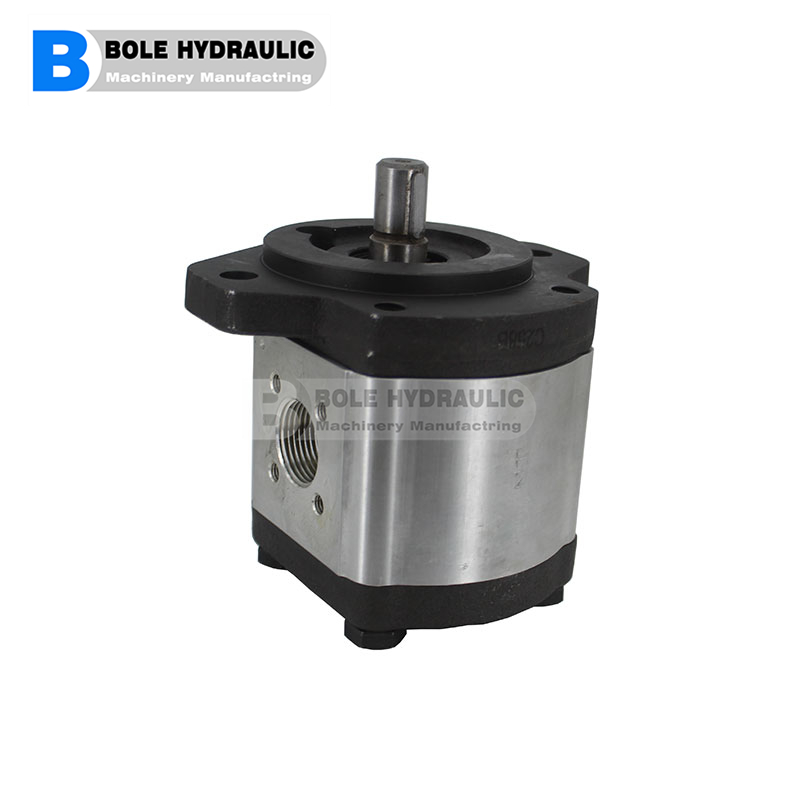

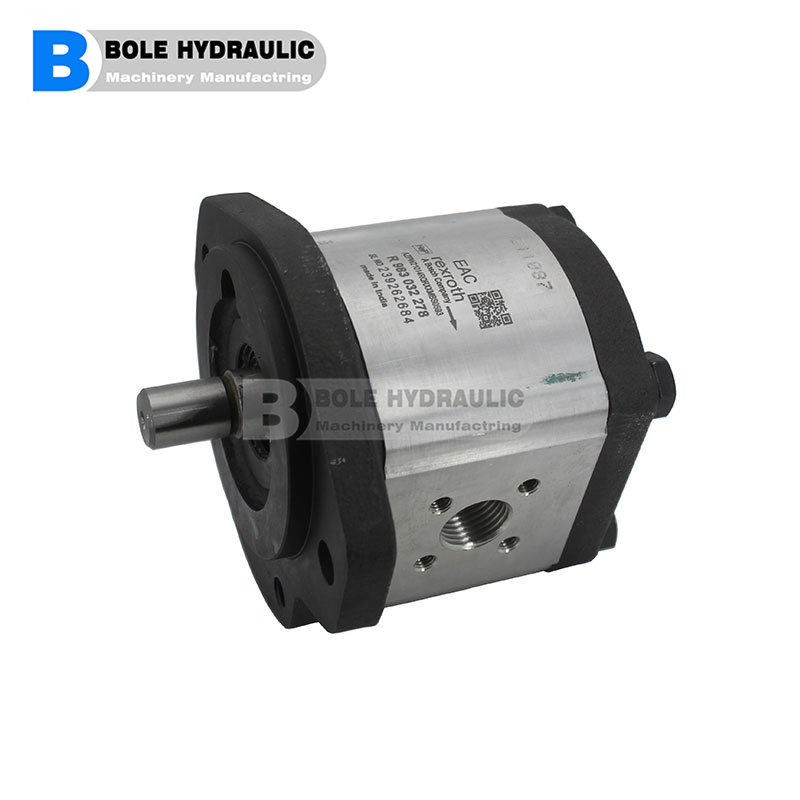

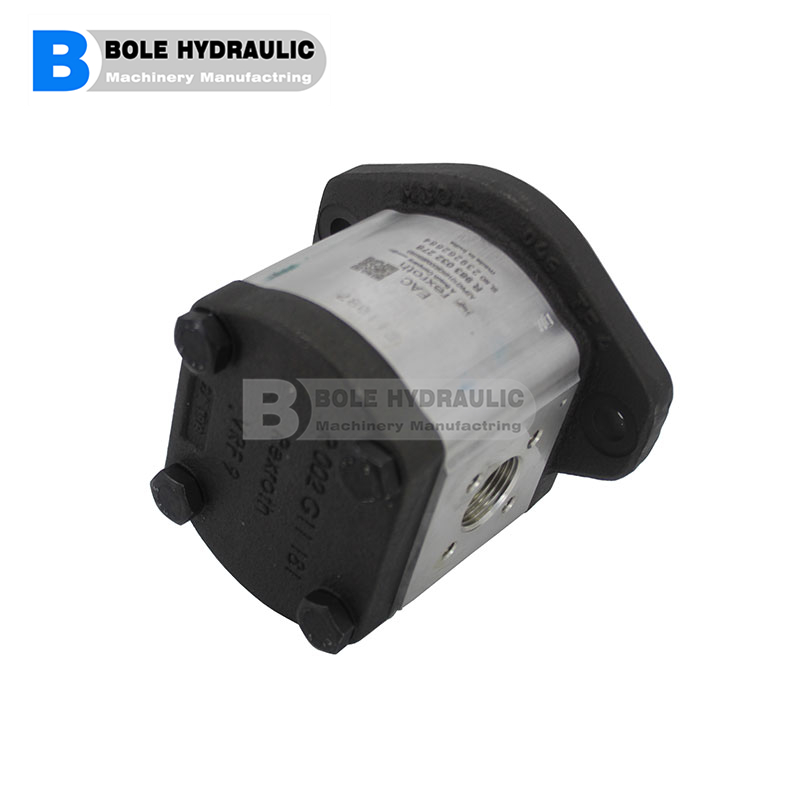

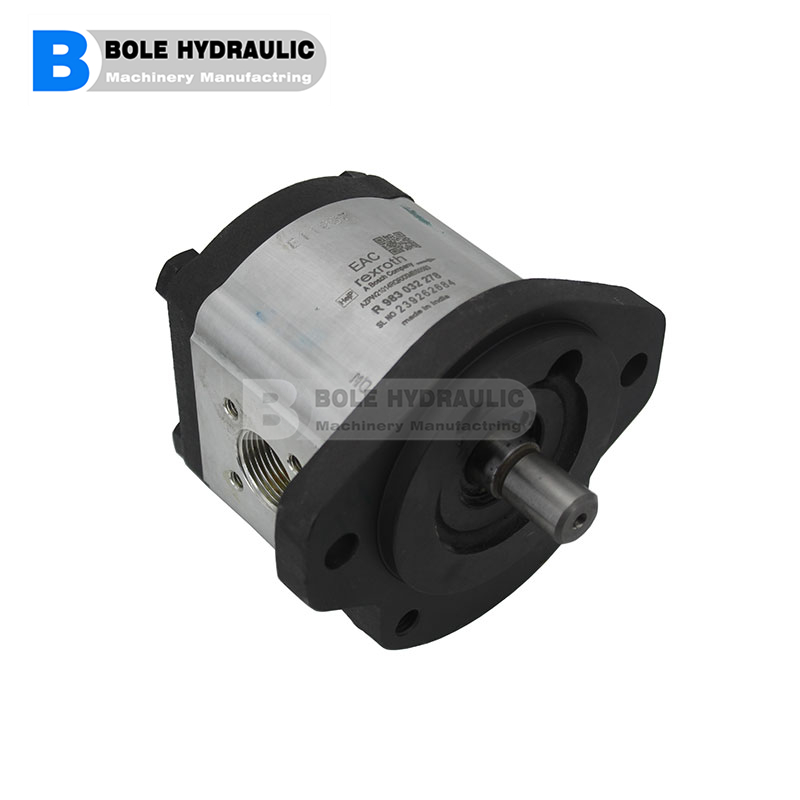

Baile Hydraulic AZPB-32-1.0 AZPB-32-4.0 AZPB-32-2.5 AZPB-32-7.1 Rexroth External gear pump High Performance

▶ Platform B
▶ Fixed displacement
▶ Nominal size 1 to 7.1
▶ Continuous pressure up to 220 bar
▶ Intermittent pressure up to 250 bar

Features
▶ Consistent high quality based on large-volume
production
▶ Long service life
▶ Slide bearings for high loading
▶ Drive shafts conforming to ISO or SAE and customerspecific solutions
▶ Port connections: Connection flanges or screw-in
threads
▶ Combinations of several pumps possible

This field is required.
This field is required.
This field is required.
This field is required.
This field is required.
This field is required.

Contact Us
Categories: , Tags: , , , , , Brand:

Baile Hydraulic AZPB-32-1.0 AZPB-32-4.0 AZPB-32-2.5 AZPB-32-7.1 Rexroth External gear pump High Performance

The AZPB gear pump is a compact and cost-effective external gear pump designed for open-circuit hydraulic systems. It provides stable flow output, simple structure, and reliable performance, making it widely used in industrial and mobile hydraulic applications where medium-pressure operation is required.

Main Applications

Construction Machinery

  • Small excavators
  • Mini loaders
  • Compact cranes
  • Concrete mixers
  • Auxiliary hydraulic systems on construction equipment

Agricultural Machinery

  • Tractors
  • Harvesters
  • Irrigation systems
  • Spraying equipment
  • Agricultural auxiliary hydraulics

Material Handling Equipment

  • Forklifts
  • Stackers
  • Lifting platforms
  • Warehouse handling systems
  • Light-duty transport equipment

Industrial Hydraulic Systems

  • Hydraulic power units (HPU)
  • Machine tools
  • Press auxiliary systems
  • Injection molding machines (auxiliary circuits)
  • Lubrication and cooling systems

Road and Municipal Equipment

  • Road sweepers
  • Garbage trucks
  • Snow removal equipment
  • Maintenance vehicles

General Industrial Applications

  • Hydraulic clamping systems
  • Light industrial machinery
  • Automation equipment
  • Lubrication and cooling circuits

Key Advantages

  • Simple and robust gear pump design
  • Cost-effective solution for medium-pressure systems
  • Stable and continuous flow output
  • Compact structure and easy installation
  • Low maintenance requirements
  • Suitable for a wide range of general-purpose hydraulic applications

0510010313

AZPB-32-1.0LCP02MB

0510010315

AZPB-32-1.0LCP02MB-S0177

0510020303

AZPB-32-1.0LHO01MB

R918SV4148

AZPB-32-1.0LNEXXMA-S0686

0510010317

AZPB-32-1.0LNEXXMA-S0686

0510010316

AZPB-32-1.0LNM01MB

0510010314

AZPB-32-1.0LNM02MB

1519222444

AZPB-32-1.0LNY02MB

R918SV3416

AZPB-32-1.0LNY02MB

0510010008

AZPB-32-1.0RCP02MB

0510010010

AZPB-32-1.0RCP02MB-S0177

0510020003

AZPB-32-1.0RHO01MB

0510010011

AZPB-32-1.0RNM01MB

0510010009

AZPB-32-1.0RNM02MB

1519222443

AZPB-32-1.0RNY02MB

R918SV3414

AZPB-32-1.0RNY02MB

1519222596

AZPB-32-2,0LNM03MX070XX-S0745

0510110324

AZPB-32-2.0LCP02MB

0510110328

AZPB-32-2.0LCP02MB-S0177

0510110332

AZPB-32-2.0LCP20MB

0510120318

AZPB-32-2.0LHO01MB

0510120326

AZPB-32-2.0LHO20MB

0510110337

AZPB-32-2.0LNEXXMA-S0073

R918SV4150

AZPB-32-2.0LNEXXMA-S0686

0510110336

AZPB-32-2.0LNEXXMA-S0686

0510110330

AZPB-32-2.0LNM01MB

0510110326

AZPB-32-2.0LNM02MB

0510110334

AZPB-32-2.0LNM20MB

1519222446

AZPB-32-2.0LNY02MB

R918SV3420

AZPB-32-2.0LNY02MB

1519222595

AZPB-32-2.0LNY02MB-S0014

1519222469

AZPB-32-2.0LNY20MB

0510110017

AZPB-32-2.0RCP02MB

0510110022

AZPB-32-2.0RCP02MB-S0177

0510110025

AZPB-32-2.0RCP20MB

0510120020

AZPB-32-2.0RHO01MB

0510120028

AZPB-32-2.0RHO20MB

0510110021

AZPB-32-2.0RNM01MB

0510110019

AZPB-32-2.0RNM02MB

0510110027

AZPB-32-2.0RNM20MB

1519222445

AZPB-32-2.0RNY02MB

R918SV3418

AZPB-32-2.0RNY02MB

1519222468

AZPB-32-2.0RNY20MB

0510110325

AZPB-32-2.5LCP02MB

0510110329

AZPB-32-2.5LCP02MB-S0177

0510110333

AZPB-32-2.5LCP20MB

0510120319

AZPB-32-2.5LHO01MB

0510120327

AZPB-32-2.5LHO20MB

0510110331

AZPB-32-2.5LNM01MB

0510110327

AZPB-32-2.5LNM02MB

0510110335

AZPB-32-2.5LNM20MB

1519222448

AZPB-32-2.5LNY02MB

1519222471

AZPB-32-2.5LNY20MB

0510110018

AZPB-32-2.5RCP02MB

0510110023

AZPB-32-2.5RCP02MB-S0177

0510110026

AZPB-32-2.5RCP20MB

0510120021

AZPB-32-2.5RHO01MB

0510120029

AZPB-32-2.5RHO20MB

0510110024

AZPB-32-2.5RNM01MB

0510110020

AZPB-32-2.5RNM02MB

0510110028

AZPB-32-2.5RNM20MB

1519222447

AZPB-32-2.5RNY02MB

1519222470

AZPB-32-2.5RNY20MB

0510112327

AZPB-32-3.15LNEXXMA-S0073

0510112321

AZPB-32-3.1LCP02MB

0510112323

AZPB-32-3.1LCP02MB-S0177

0510112325

AZPB-32-3.1LCP20MB

0510120320

AZPB-32-3.1LHO01MB

0510120328

AZPB-32-3.1LHO20MB

0510112324

AZPB-32-3.1LNM01MB

0510112322

AZPB-32-3.1LNM02MB

0510112326

AZPB-32-3.1LNM20MB

1519222592

AZPB-32-3.1LNM20MB-S0071

1519222450

AZPB-32-3.1LNY02MB

R918SV3428

AZPB-32-3.1LNY02MB

1519222473

AZPB-32-3.1LNY20MB

0510112015

AZPB-32-3.1RCP02KB

0510112014

AZPB-32-3.1RCP02MB

0510112018

AZPB-32-3.1RCP02MB-S0177

0510112019

AZPB-32-3.1RCP20MB

0510112021

AZPB-32-3.1RCPXXMA-S0072

0510120022

AZPB-32-3.1RHO01MB

0510120030

AZPB-32-3.1RHO20MB

0510112017

AZPB-32-3.1RNM01MB

0510112016

AZPB-32-3.1RNM02MB

0510112020

AZPB-32-3.1RNM20MB

1519222449

AZPB-32-3.1RNY02MB

1519222472

AZPB-32-3.1RNY20MB

0510112320

AZPB-32-3.2LNEXXMA-S0686

0510114324

AZPB-32-4.0LCP02MB

0510114330

AZPB-32-4.0LCP02MB-S0177

0510114336

AZPB-32-4.0LCP20MB

0510120321

AZPB-32-4.0LHO01MB

0510120329

AZPB-32-4.0LHO20MB

0510114342

AZPB-32-4.0LNEXXMA-S0686

0510114333

AZPB-32-4.0LNM01MB

0510114327

AZPB-32-4.0LNM02MB

0510114339

AZPB-32-4.0LNM20MB

1519222593

AZPB-32-4.0LNM20MB-S0071

1519222452

AZPB-32-4.0LNY02MB

1519222475

AZPB-32-4.0LNY20MB

0510114018

AZPB-32-4.0RCP02MB

0510114025

AZPB-32-4.0RCP02MB-S0177

0510114030

AZPB-32-4.0RCP20MB

0510120023

AZPB-32-4.0RHO01MB

0510120031

AZPB-32-4.0RHO20MB

0510114028

AZPB-32-4.0RNM01MB

0510114021

AZPB-32-4.0RNM02MB

0510114033

AZPB-32-4.0RNM20MB

1519222451

AZPB-32-4.0RNY02MB

1519222474

AZPB-32-4.0RNY20MB

0510215601

AZPB-32-4.0UHX20KX-S0710

R918SV3151

AZPB-32-4.0UHX20KX-S0710

0510114325

AZPB-32-4.5LCP02MB

0510114331

AZPB-32-4.5LCP02MB-S0177

0510114337

AZPB-32-4.5LCP20MB

0510120322

AZPB-32-4.5LHO01MB

0510120330

AZPB-32-4.5LHO20MB

0510114343

AZPB-32-4.5LNEXXMA-S0686

0510114334

AZPB-32-4.5LNM01MB

0510114328

AZPB-32-4.5LNM02MB

0510114340

AZPB-32-4.5LNM20MB

1519222594

AZPB-32-4.5LNM20MB-S0071

1519222454

AZPB-32-4.5LNY02MB

1519222477

AZPB-32-4.5LNY20MB

0510114019

AZPB-32-4.5RCP02MB

0510114026

AZPB-32-4.5RCP02MB-S0177

0510114031

AZPB-32-4.5RCP20MB

0510120024

AZPB-32-4.5RHO01MB

0510120032

AZPB-32-4.5RHO20MB

0510114024

AZPB-32-4.5RNM01MB

0510114022

AZPB-32-4.5RNM02MB

0510114034

AZPB-32-4.5RNM20MB

1519222453

AZPB-32-4.5RNY02MB

1519222476

AZPB-32-4.5RNY20MB

0510114326

AZPB-32-5.0LCP02MB

0510114332

AZPB-32-5.0LCP02MB-S0177

0510114338

AZPB-32-5.0LCP20MB

0510120323

AZPB-32-5.0LHO01MB

0510120331

AZPB-32-5.0LHO20MB

0510114335

AZPB-32-5.0LNM01MB

0510114329

AZPB-32-5.0LNM02MB

0510114341

AZPB-32-5.0LNM20MB

1519222456

AZPB-32-5.0LNY02MB

1519222479

AZPB-32-5.0LNY20MB

0510114020

AZPB-32-5.0RCP02MB

0510114027

AZPB-32-5.0RCP02MB-S0177

0510114032

AZPB-32-5.0RCP20MB

0510120025

AZPB-32-5.0RHO01MB

0510120033

AZPB-32-5.0RHO20MB

0510114029

AZPB-32-5.0RNM01MB

0510114023

AZPB-32-5.0RNM02MB

0510114035

AZPB-32-5.0RNM20MB

1519222455

AZPB-32-5.0RNY02MB

1519222478

AZPB-32-5.0RNY20MB

0510122316

AZPB-32-6.3LCP02MB

0510122320

AZPB-32-6.3LCP02MB-S0177

0510122324

AZPB-32-6.3LCP20MB

0510120324

AZPB-32-6.3LHO01MB

0510120332

AZPB-32-6.3LHO20MB

0510122322

AZPB-32-6.3LNM01MB

0510122318

AZPB-32-6.3LNM02MB

0510122326

AZPB-32-6.3LNM20MB

1519222458

AZPB-32-6.3LNY02MB

1519222481

AZPB-32-6.3LNY20MB

0510122012

AZPB-32-6.3RCP02MB

0510122016

AZPB-32-6.3RCP02MB-S0177

0510122020

AZPB-32-6.3RCP20MB

0510120026

AZPB-32-6.3RHO01MB

0510120034

AZPB-32-6.3RHO20MB

0510122018

AZPB-32-6.3RNM01MB

0510122014

AZPB-32-6.3RNM02MB

0510122022

AZPB-32-6.3RNM20MB

1519222457

AZPB-32-6.3RNY02MB

1519222480

AZPB-32-6.3RNY20MB

0510122317

AZPB-32-7.1LCP02MB

0510122321

AZPB-32-7.1LCP02MB-S0177

0510122325

AZPB-32-7.1LCP20MB

0510120325

AZPB-32-7.1LHO01MB

0510120333

AZPB-32-7.1LHO20MB

0510122323

AZPB-32-7.1LNM01MB

0510122319

AZPB-32-7.1LNM02MB

0510122327

AZPB-32-7.1LNM20MB

1519222460

AZPB-32-7.1LNY02MB

1519222483

AZPB-32-7.1LNY20MB

0510122013

AZPB-32-7.1RCP02MB

0510122017

AZPB-32-7.1RCP02MB-S0177

0510122021

AZPB-32-7.1RCP20MB

0510120027

AZPB-32-7.1RHO01MB

0510120035

AZPB-32-7.1RHO20MB

0510122019

AZPB-32-7.1RNM01MB

0510122015

AZPB-32-7.1RNM02MB

0510122023

AZPB-32-7.1RNM20MB

1519222459

AZPB-32-7.1RNY02MB

1519222482

AZPB-32-7.1RNY20MB

0510365321

AZPBB-22-6.3/2.0LHO0101MB
