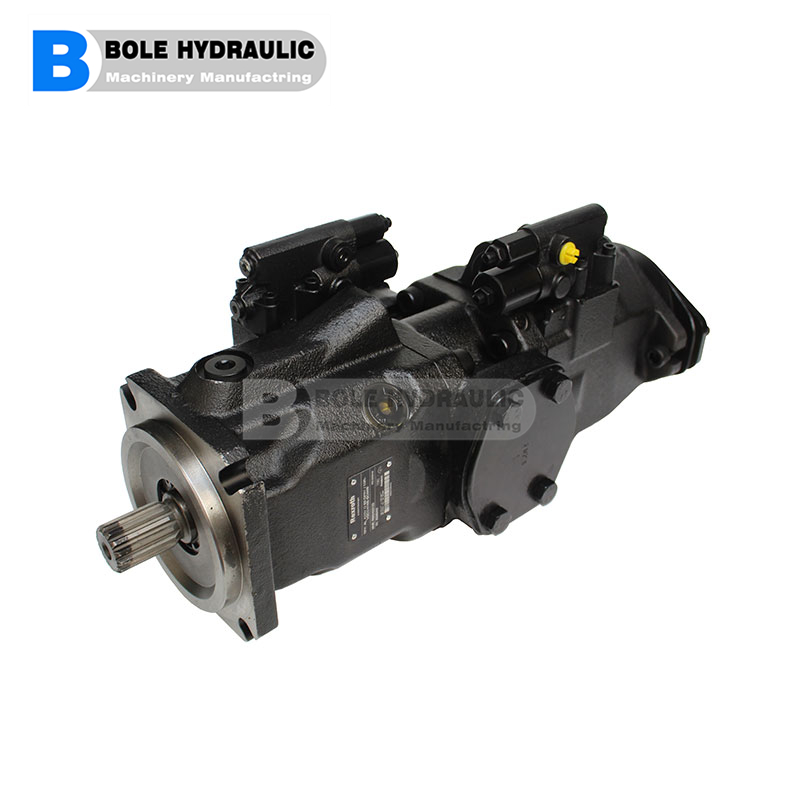

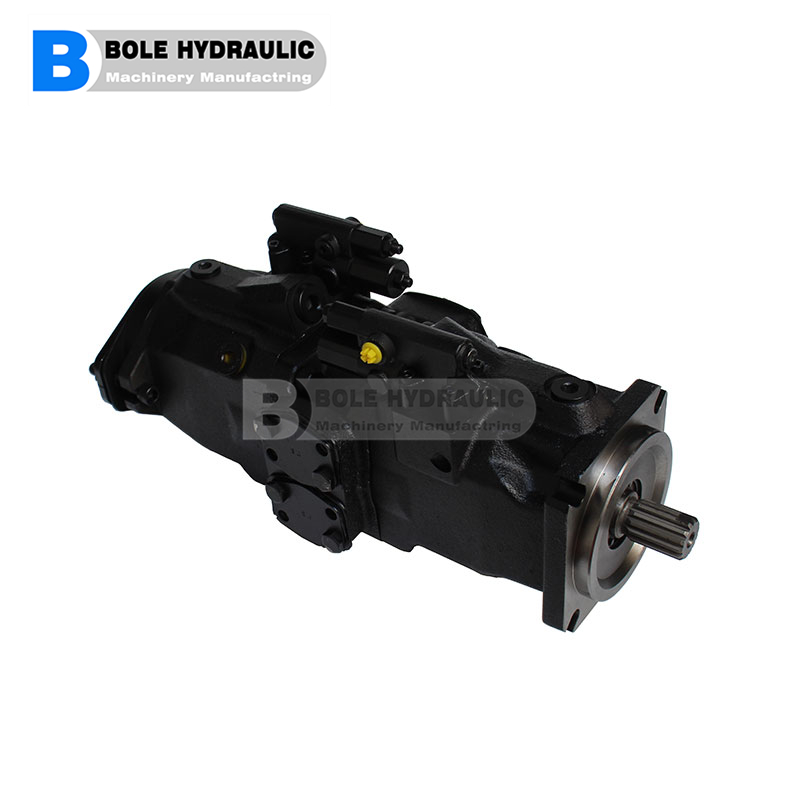

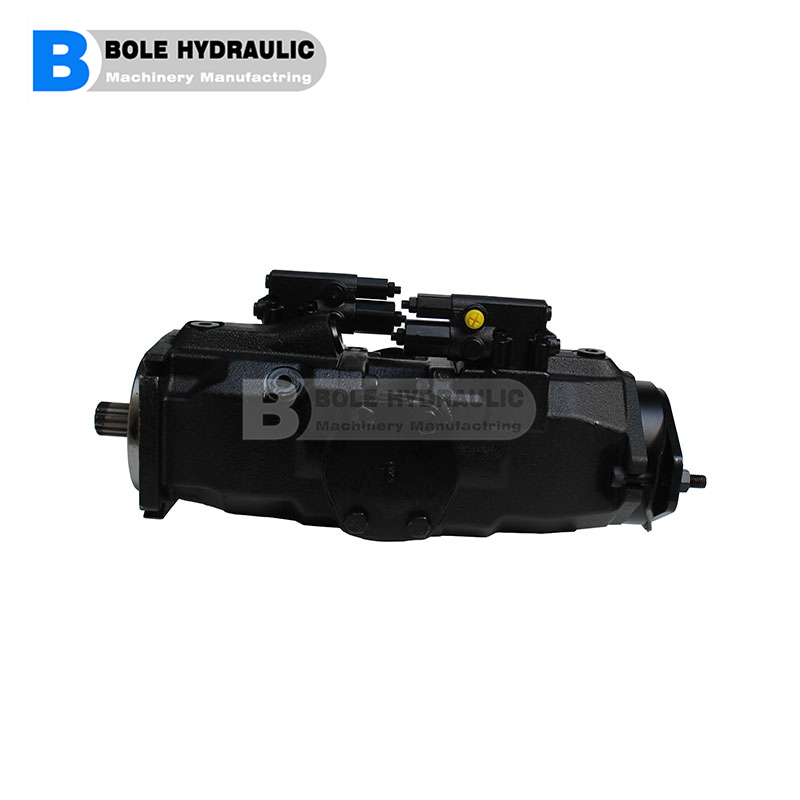

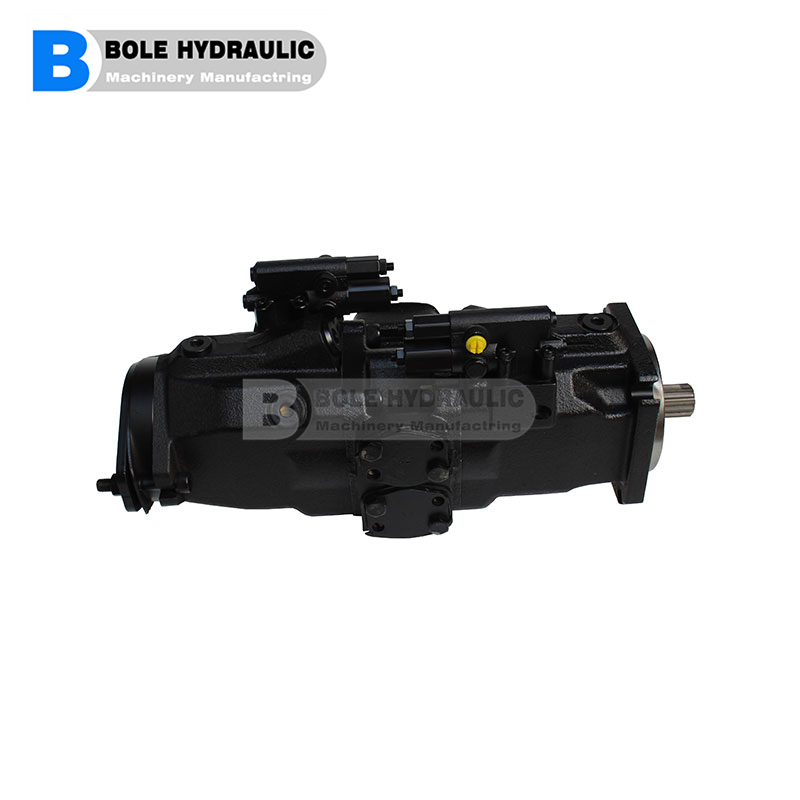

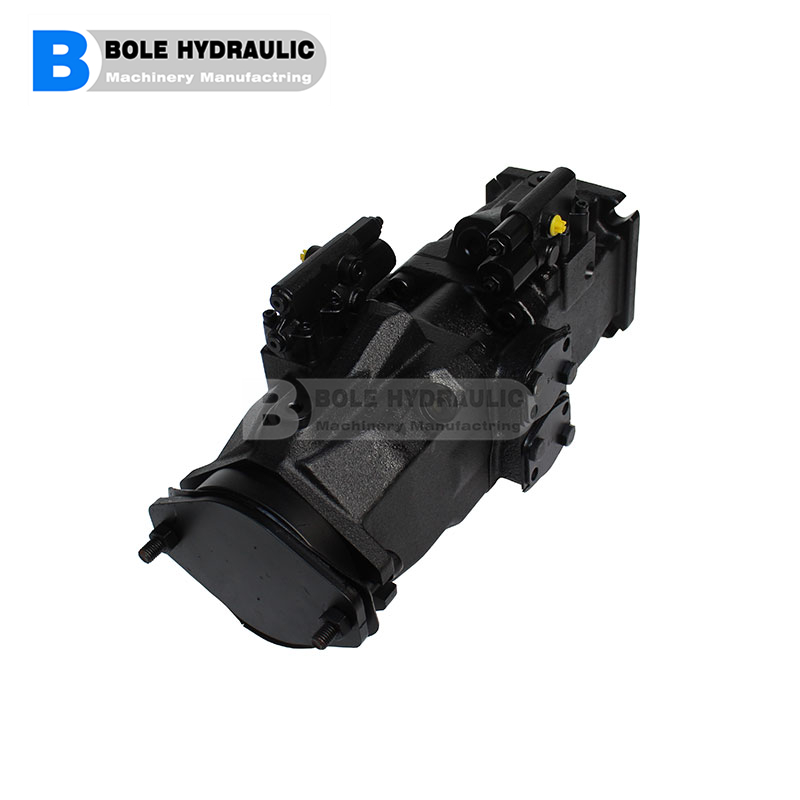

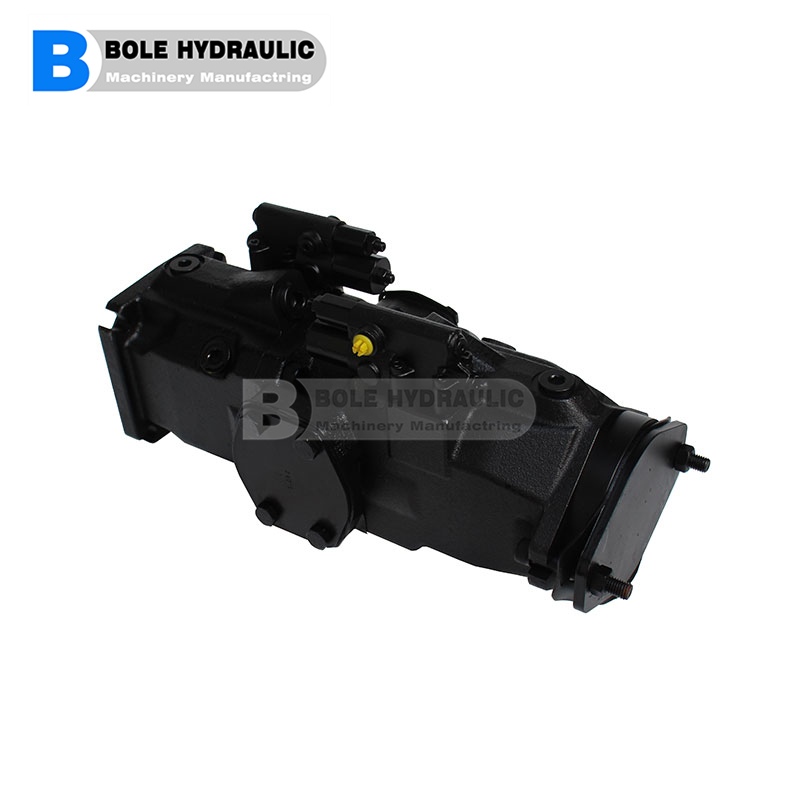

Rexroth A20VLO190DRG A20VLO190DRS A20VLO190EP2 A20VLO190LRD Axial piston variable double pump
▶ Compact back-to-back pump for machines with
multi-circuit system
▶ Size 60
– Nominal pressure 250 bar
– Maximum pressure 315 bar
▶ Sizes 95 to 520
– Nominal pressure 350 bar
– Maximum pressure 400 bar
▶ Open circuit
Dimensions of size 60 without control device
Dimensions of size 95 without control device
Dimensions of size 190 with charge pump, without control device
Dimensions of size 260 with charge pump, without control device
Dimensions of size 520 without control device
Through drive dimensions sizes 60 and 520
Features
▶ Variable double pump with two axial piston rotary
groups with swashplate design for hydrostatic drives
in an open circuit.
▶ Flow is proportional to the drive speed and displacement.
▶ The flow can be continuously changed with closed
loop control.
▶ For use in mobile and industrial application areas.
▶ The pump consists of proven components of the A11VO
(RE 92500), A10VO/53 (RE 92703), or A4VSO
(RE 92050) variable displacement pumps.
▶ An extensive range of control devices is available in
the respective data sheets for different control and
regulating functions.
▶ Pump operation can be self-priming, with a priming
reservoir, or with a charge pump (NG 190 and 260).
▶ Power setting is possible from the outside, even while
the machine is running (only with power controller).
▶ The through drive is suitable for mounting gear pumps
and axial piston pumps.
Rexroth A20VLO190DRG A20VLO190DRS A20VLO190EP2 A20VLO190LRD Axial piston variable double pump
The A20VO axial piston variable pump is designed for open-circuit hydraulic systems, offering high efficiency, precise flow control, and excellent reliability under demanding operating conditions. Its swashplate design and variable displacement capability make it suitable for a wide range of mobile and industrial hydraulic applications.
Main Applications
Construction Machinery
- Hydraulic excavators
- Wheel loaders
- Backhoe loaders
- Mobile cranes
- Concrete pump trucks
- Piling and foundation equipment
Road Construction Equipment
- Asphalt pavers
- Road rollers
- Cold milling machines
- Road reclaimers
- Soil stabilizers
Mining and Quarry Equipment
- Drilling rigs
- Crushing and screening plants
- Underground mining vehicles
- Material conveying systems
Agricultural and Forestry Machinery
- Tractors
- Combine harvesters
- Sprayers
- Seeders
- Forestry harvesters and forwarders
Material Handling Equipment
- Forklifts
- Reach stackers
- Container handlers
- Port and terminal machinery
Industrial Hydraulic Systems
- Hydraulic power units
- Press machines
- Metal forming equipment
- Injection molding machines
- Industrial drive systems
Marine and Special Vehicles
- Deck machinery
- Winch systems
- Municipal service vehicles
- Special-purpose hydraulic equipment
R902231277
A20VLO190DR/10R-NPD24N00
R902237488
A20VLO190DRG/10R-NZD24N00
R902228158
A20VLO190DRS/10R-NZD24N00
R992000414
A20VLO190DRS/10R-NZD24N00
R902228159
A20VLO190DRS/10R-NZD24N00
R902233379
A20VLO190EP2D/10L-NZD24K02P
R902243335
A20VLO190EP2D/10L-NZD24K02P-S
R992001925
A20VLO190EP2D/10L-NZD24K02P-S
R902118402
A20VLO190EP2D/10R-NZD24K02H-S
R902215420
A20VLO190EP2D/10R-NZD24K02P
R902239920
A20VLO190EP2D/10R-NZD24K07P
R902211731
A20VLO190EP2D/10R-NZD24N00H
R902190318
A20VLO190EP2D/10R-NZD24N00H-S
R902102161
A20VLO190EP6D/10L-NZD24K07H-S
R902102162
A20VLO190EP6D/10L-NZD24N00H-S
R902220401
A20VLO190EP6D/10R+A11VO60DR/10R
R902274537
A20VLO190EP6D/10R+A11VO60DR/10R
R902220399
A20VLO190EP6D/10R-NZD24K07H-S
R902274538
A20VLO190EP6D/10R-NZD24K07H-S
R902255635
A20VLO190EP6D/10R-NZD24N00H-S
R902248462
A20VLO190EP6D/10R-NZD24N00H-S
R902106354
A20VLO190EP6S/10L-NZD24K02H-S
R902274573
A20VLO190EP6S/10L-NZD24K07P-S
R902247394
A20VLO190LE2S/10L-NZD24K04RP-S
R902220341
A20VLO190LE6DU6/10R+A11VO75EP6D/10R+AZP
R902220339
A20VLO190LE6DU6/10R-NZD24K81H
R902228161
A20VLO190LG1DH2/10L-NTD24N00-Y
R902228155
A20VLO190LG1S/10R-NZD24K02-S
R902228152
A20VLO190LG1S/10R-NZD24K02-S
R902228153
A20VLO190LG1S/10R-NZD24K02-S
R992001501
A20VLO190LG1S/10R-NZD24K02-S
R902228156
A20VLO190LG1S/10R-NZD24K02-S
R902228154
A20VLO190LG1S/10R-NZD24K02-S
R902241956
A20VLO190LG1S5/10R-NZD24K02-S
R902243130
A20VLO190LG1S5/10R-NZD24K04-Y
R902228164
A20VLO190LG1S5/10R-NZD24K04-Y
R902243208
A20VLO190LG1S5/10R-NZD24K81-Y
R902223168
A20VLO190LG1S5/10R-NZG24N00-S
R902250591
A20VLO190LRDH1+A11VO40DR+AZPGFF-22-063/0
R902247098
A20VLO190LRDH1/10R+A11VO40DR/10R+AZPGFF
R902228150
A20VLO190LRDH1/10R-NZD24K02
R902228151
A20VLO190LRDH1/10R-NZD24K79
R902247096
A20VLO190LRDH1/10R-NZD24K79-Y
R902250589
A20VLO190LRDH1/10R-NZD24K79-Y
R902233880
A20VLO190LRDH2+A10VO28DR
R902233879
A20VLO190LRDH2/10R-NZD24K02
R902227814
A20VLO190LRDH2/10R-NZD24K02
R902227787
A20VLO190LRDS/10R-NZD24K04
R902274868
A20VLO190LRGH1/10R-NZD24K79-Y
R902248013
A20VLO190LRGH2+A10VO28DR
R902248012
A20VLO190LRGH2/10R-NZD24K02
R902208807
AA20VLO190DR/10L-WSD07N00-S
R902150737
AA20VLO190DR/10L-WXD07N00T-S
R992001955
AA20VLO190DRG/10L-NXDXXN00-S
R902087709
AA20VLO190DRG/10L-NXDXXN00-S
R902150736
AA20VLO190EP4D/10L-WXD07N00T-S
R902277206
AA20VLO190EP4D/10R-WXD07N00P-S
R902164192
AA20VLO190EP4D/10R-WXD07N00T-S
R902150735
AA20VLO190EPXD/10L-XXDXXN00X-S
R992001958
AA20VLO190EPXD/10R-NXDXXN00XP-S
R902158360
AA20VLO190EPXD/10R-NXDXXN00XP-S
