Compatible CAT Equipment

CAT 10R-0532 is mainly applied to:

CAT 416D Backhoe Loader

Applications:

• Excavation
• Trenching
• Loading
• Material handling

---

CAT 424D Backhoe Loader

Hydraulic functions:

• Boom operation
• Bucket cylinder operation
• Stabilizer control
• Steering assistance



---

Common Applications

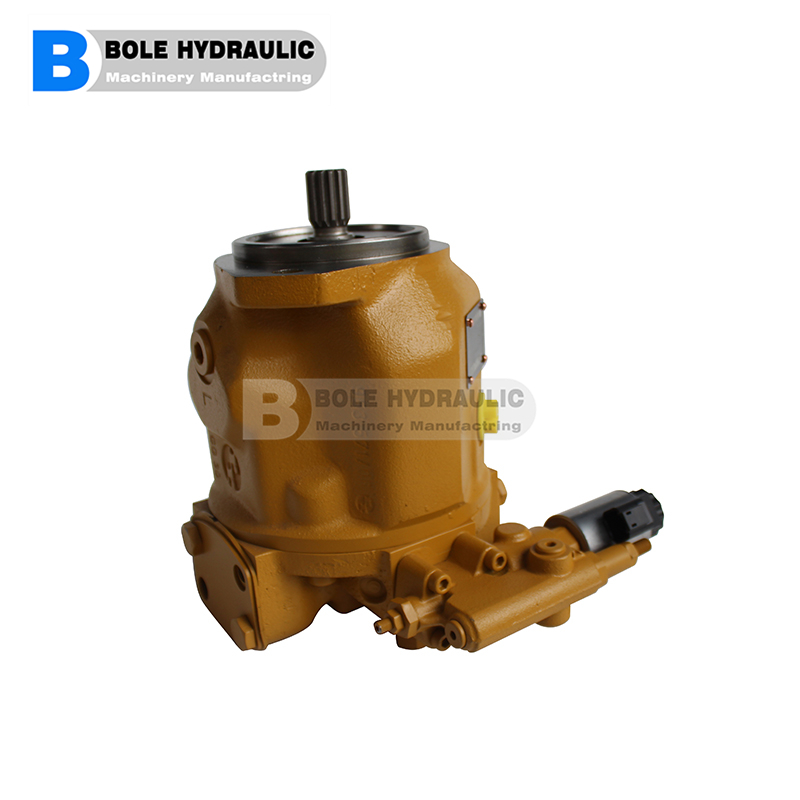

CAT 10R-0532 hydraulic pump provides hydraulic power for:

Excavation System

• Boom lifting
• Arm movement
• Bucket digging

Loader System

• Material loading
• Bucket tilting

Auxiliary Hydraulic Functions

• Steering
• Stabilizer operation
• Hydraulic attachments

---

Common Problems and Repair Guide

1. Low Hydraulic Pressure

Symptoms:

• Weak digging force
• Slow cylinder movement
• Machine cannot lift load

Possible causes:

• Worn piston group
• Damaged valve plate
• Excessive internal leakage
• Incorrect pressure adjustment

Repair:

✔ Measure pump pressure
✔ Check flow output
✔ Inspect rotating group
✔ Replace worn components

---

2. Hydraulic Pump Noise

Symptoms:

• Whining sound
• Vibration
• Pressure fluctuation

Causes:

Cavitation

Reasons:

• Low oil level
• Blocked suction filter
• Air leakage

Solutions:

• Check suction pipe
• Replace filter
• Remove air from system

---

3. Overheating

Symptoms:

• Hydraulic oil temperature increases
• Slow operation

Causes:

• Internal leakage
• Excessive pressure
• Poor oil quality

Repair:

• Test pump efficiency
• Check case drain flow
• Replace worn parts

---

4. Complete Pump Failure

Symptoms:

• No hydraulic movement
• No system pressure

Possible damage:

• Broken shaft
• Damaged cylinder block
• Bearing failure

Repair process:

1. Remove pump
2. Clean components
3. Inspect rotating group
4. Replace damaged parts
5. Test performance

---

Daily Maintenance Recommendations

Hydraulic Oil Inspection

Check:

• Oil level
• Oil contamination
• Oil color
• Metal particles

---

Filter Maintenance

Hydraulic contamination is one of the biggest causes of piston pump failure.

Recommended:

• Replace filters regularly
• Keep hydraulic tank clean
• Avoid dust entering hydraulic lines

---

Temperature Monitoring

Recommended operating temperature:

40°C–70°C

High temperature causes:

• Seal aging
• Reduced lubrication
• Increased leakage

---

Repair Parts Commonly Replaced

During rebuilding, technicians normally replace:

• Seal kit
• Bearings
• Valve plate
• Pistons
• Slipper shoes
• Cylinder block
• Retainer plate
