Danfoss 90M100 90M130 high-performance variable displacement axial piston motor
Typical applications:
- Wheel loaders
- Medium-size excavators
- Road rollers
- Asphalt pavers
- Milling machines
- Trenchers
Advantages:
- High starting torque for heavy loads
- Stable operation during continuous working cycles
- Excellent speed regulation performance
- High efficiency under variable load conditions
90M100 90M130 Hydraulic Motor Application Range
The 90M100 is designed for medium and heavy-duty mobile equipment requiring higher hydraulic torque output.
1. Construction Machinery
Typical applications:
- Wheel loaders
- Medium-size excavators
- Road rollers
- Asphalt pavers
- Milling machines
- Trenchers
Advantages:
- High starting torque for heavy loads
- Stable operation during continuous working cycles
- Excellent speed regulation performance
- High efficiency under variable load conditions
The 90M100 is especially suitable for hydrostatic travel systems where precise movement control and strong traction are required.
2. Road Construction Equipment
Applications include:
- Vibratory compactors
- Soil compactors
- Asphalt rollers
- Road maintenance machines
The motor provides:
- Smooth acceleration
- High torque at low speed
- Reliable operation under vibration environments
3. Agricultural Machinery
Typical applications:
- Large harvesters
- Combines
- Self-propelled sprayers
- High-power agricultural vehicles
Benefits:
- Efficient power transmission
- Improved fuel economy
- Strong adaptability to changing field conditions
4. Forestry Equipment
Used in:
- Forestry harvesters
- Timber processing machines
- Logging equipment
Technical Parameters – 90M100
| Parameter | Specification |
|---|---|
| Model | 90M100 |
| Series | Danfoss Series 90M |
| Motor Type | Fixed Displacement Axial Piston Motor |
| Circuit Type | Closed Circuit Hydrostatic Motor |
| Design | Inline Axial Piston / Slipper Design |
| Displacement | 100 cm³/rev (6.10 in³/rev) |
| Maximum Working Pressure | 450 bar (6525 psi) |
| Continuous Speed at Maximum Displacement | Approx. 3300 rpm |
| Theoretical Torque | 1.59 Nm/bar |
| Rotation Direction | Bi-directional |
| Mounting | SAE C Flange |
| Port Connection | Twin Port |
| Shaft Options | Spline / Straight / Tapered |
| Loop Flushing Valve | Available |
| Speed Sensor Option | Available |
Technical Parameters – 90M130
| Parameter | Specification |
|---|---|
| Model | 90M130 |
| Series | Danfoss Series 90M |
| Motor Type | Fixed Displacement Axial Piston Motor |
| Circuit Type | Closed Circuit Hydrostatic Motor |
| Design | Inline Axial Piston / Slipper Design |
| Displacement | 130 cm³/rev (7.90 in³/rev) |
| Maximum Working Pressure | 450 bar (6525 psi) |
| Continuous Speed at Maximum Displacement | Approx. 3100 rpm |
| Theoretical Torque | 2.07 Nm/bar |
| Rotation Direction | Bi-directional |
| Mounting | SAE D Flange |
| Port Connection | Twin Port |
| Shaft Options | Spline / Straight |
| Loop Flushing Valve | Available |
| Speed Sensor Option | Available |
| 11030634 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EFA-00-00-E6 | 90M100NC0N8N0C7W00EFA0000E6 |
| 11040384 | 90-M-100-NC-0-N-X-N-0-C7-W-00-CBF-00-00-B3 | 90M100NC0NXN0C7W00CBF0000B3 |
| 11044794 | 90-M-100-NC-0-N-W-N-0-C7-W-00-CBF-00-00-B3 | 90M100NC0NWN0C7W00CBF0000B3 |
| 11046243 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-G3 | 90M100NC0N8N0C7W00NNN0000G3 |
| 11050997 | 90-M-100-NC-0-N-8-N-0-K3-W-00-EAA-00-00-F3 | 90M100NC0N8N0K3W00EAA0000F3 |
| 11052595 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EGL-00-00-H0 | 90M100NC0N8N0C7W00EGL0000H0 |
| 11058342 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-G3 | 90M100NC0N8N0S1W00NNN0000G3 |
| 11059805 | 90-M-100-NC-0-N-7-N-0-C7-W-00-NNN-00-00-G3 | 90M100NC0N7N0C7W00NNN0000G3 |
| 11065820 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EFA-00-00-G0 | 90M100NC0N8N0C7W00EFA0000G0 |
| 11071944 | 90-M-100-NC-0-N-8-N-0-C6-W-00-EFA-00-00-F3 | 90M100NC0N8N0C6W00EFA0000F3 |
| 11156540 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EBA-00-00-24 | 90M100NC0N8N0S1W00EBA000024 |
| 312082 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-F3 | 90M100NC0N8N0C7W00NNN0000F3 |
| 312231 | 90-M-100-NC-0-N-7-N-0-C7-W-00-NNN-00-00-F3 | 90M100NC0N7N0C7W00NNN0000F3 |
| 318865 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-F3 | 90M100NC0N8N0F1W00NNN0000F3 |
| 343236 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-F3 | 90M100NC0N8N0C7W00NNN0000F3 |
| 501829 | 90-M-100-NC-0-N-7-N-0-C7-W-00-CBA-00-00-B3 | 90M100NC0N7N0C7W00CBA0000B3 |
| 507487 | 90-M-100-NC-0-N-F-N-0-C7-W-00-PAA-00-00-F3 | 90M100NC0NFN0C7W00PAA0000F3 |
| 509481 | 90-M-100-NC-0-N-8-N-0-T2-N-00-NNN-00-00-00 | 90M100NC0N8N0T2N00NNN000000 |
| 510044 | 90-M-100-NC-0-N-7-N-0-C6-W-00-NNN-00-00-F3 | 90M100NC0N7N0C6W00NNN0000F3 |
| 511783 | 90-M-100-NC-0-N-7-N-0-TJ-W-00-NNN-00-00-G0 | 90M100NC0N7N0TJW00NNN0000G0 |
| 511924 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-E6 | 90M100NC0N8N0C7W00NNN0000E6 |
| 513782 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-B3 | 90M100NC0N8N0C7W00NNN0000B3 |
| 513904 | 90-M-100-NC-0-N-T-N-0-C7-W-00-CBC-00-00-B3 | 90M100NC0NTN0C7W00CBC0000B3 |
| 515479 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EFA-00-00-F3 | 90M100NC0N8N0C7W00EFA0000F3 |
| 516023 | 90-M-100-NC-0-N-U-N-0-F1-B-00-PAA-00-00-H0 | 90M100NC0NUN0F1B00PAA0000H0 |
| 516210 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-F3 | 90M100NC0N8N0K3W00NNN0000F3 |
| 517602 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-F0 | 90M100NC0N8N0C7W00NNN0000F0 |
| 517603 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-H0 | 90M100NC0N8N0C7W00NNN0000H0 |
| 518172 | 90-M-100-NC-0-N-U-N-0-F1-B-00-PAA-00-00-B4 | 90M100NC0NUN0F1B00PAA0000B4 |
| 518210 | 90-M-100-NC-0-N-V-N-0-C7-W-00-NNN-00-00-H0 | 90M100NC0NVN0C7W00NNN0000H0 |
| 518400 | 90-M-100-NC-0-N-7-N-0-F1-W-00-NNN-00-00-G0 | 90M100NC0N7N0F1W00NNN0000G0 |
| 519390 | 90-M-100-NC-0-N-W-N-0-C7-W-00-CBE-00-00-B3 | 90M100NC0NWN0C7W00CBE0000B3 |
| 519532 | 90-M-100-NC-0-N-U-N-0-F1-C-00-PAA-00-00-H0 | 90M100NC0NUN0F1C00PAA0000H0 |
| 519865 | 90-M-100-NC-0-N-U-N-0-F1-C-00-PAA-00-00-B4 | 90M100NC0NUN0F1C00PAA0000B4 |
| 520479 | 90-M-100-NC-0-N-7-N-0-F1-W-00-NNN-00-00-H0 | 90M100NC0N7N0F1W00NNN0000H0 |
| 700576 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-00 | 90M100NC0N8N0S1W00NNN000000 |
| 700671 | 90-M-100-NC-0-N-8-N-0-C6-W-00-NNN-00-00-F3 | 90M100NC0N8N0C6W00NNN0000F3 |
| 701952 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-F0 | 90M100NC0N8N0K3W00NNN0000F0 |
| 702037 | 90-M-100-NC-0-N-8-N-0-S1-N-00-NNN-00-00-00 | 90M100NC0N8N0S1N00NNN000000 |
| 702088 | 90-M-100-NC-0-N-8-N-0-T2-N-00-EFA-00-00-00 | 90M100NC0N8N0T2N00EFA000000 |
| 702847 | 90-M-100-NC-0-N-8-N-0-TJ-W-00-NNN-00-00-G0 | 90M100NC0N8N0TJW00NNN0000G0 |
| 736637 | 90-M-100-NC-0-N-8-N-0-C7-N-00-NNN-00-00-00 | 90M100NC0N8N0C7N00NNN000000 |
| 793307 | 90-M-100-NC-0-N-8-N-0-T2-W-00-NNN-00-00-F3 | 90M100NC0N8N0T2W00NNN0000F3 |
| 80004610 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-F0 | 90M100NC0N8N0F1W00NNN0000F0 |
| 80004740 | 90-M-100-NC-0-N-8-N-0-C6-W-00-NNN-00-00-F0 | 90M100NC0N8N0C6W00NNN0000F0 |
| 80004900 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EEA-00-00-G0 | 90M100NC0N8N0C7W00EEA0000G0 |
| 80005517 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EBA-00-00-F0 | 90M100NC0N8N0S1W00EBA0000F0 |
| 83001006 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-G0 | 90M100NC0N8N0K3W00NNN0000G0 |
| 83003786 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EBA-00-00-E4 | 90M100NC0N8N0C7W00EBA0000E4 |
| 83007315 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EBA-00-00-F0 | 90M100NC0N8N0C7W00EBA0000F0 |
| 83008526 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EBA-00-00-F0 | 90M100NC0N8N0F1W00EBA0000F0 |
| 83009161 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-E6 | 90M100NC0N8N0S1W00NNN0000E6 |
| 83009794 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-E4 | 90M100NC0N8N0C7W00NNN0000E4 |
| 83010138 | 90-M-100-NC-0-N-D-N-0-C6-W-00-EBA-00-00-F0 | 90M100NC0NDN0C6W00EBA0000F0 |
| 83010500 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EBA-00-00-F3 | 90M100NC0N8N0C7W00EBA0000F3 |
| 83010802 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-F3-P000 | 90M100NC0N8N0C7W00NNN0000F3P000 |
| 83010899 | 90-M-100-NC-0-N-3-N-0-C7-W-00-NNN-00-00-F0 | 90M100NC0N3N0C7W00NNN0000F0 |
| 83012057 | 90-M-100-NC-0-N-X-N-0-C7-W-00-CBG-00-00-B3 | 90M100NC0NXN0C7W00CBG0000B3 |
| 83013783 | 90-M-100-NC-0-N-8-N-0-C6-W-00-NNN-00-00-G3 | 90M100NC0N8N0C6W00NNN0000G3 |
| 83016415 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EAA-00-00-G3 | 90M100NC0N8N0C7W00EAA0000G3 |
| 83017007 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EFA-00-00-F3 | 90M100NC0N8N0F1W00EFA0000F3 |
| 83017410 | 90-M-100-NC-0-N-8-N-0-F1-N-00-EFA-00-00-00 | 90M100NC0N8N0F1N00EFA000000 |
| 83020469 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-F0 | 90M100NC0N8N0K3W00NNN0000F0 |
| 83021052 | 90-M-100-NC-0-N-1-N-0-S1-W-00-NNN-00-00-E6 | 90M100NC0N1N0S1W00NNN0000E6 |
| 83022613 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EEA-00-00-F0 | 90M100NC0N8N0F1W00EEA0000F0 |
| 83022614 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-F0 | 90M100NC0N8N0S1W00NNN0000F0 |
| 83022615 | 90-M-100-NC-0-N-7-N-0-F1-W-00-NNN-00-00-F3 | 90M100NC0N7N0F1W00NNN0000F3 |
| 83022616 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EBA-00-00-E6 | 90M100NC0N8N0F1W00EBA0000E6 |
| 83022617 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EBA-00-00-G0 | 90M100NC0N8N0S1W00EBA0000G0 |
| 83022618 | 90-M-100-NC-0-N-7-N-0-S1-W-00-NNN-00-00-F0 | 90M100NC0N7N0S1W00NNN0000F0 |
| 83022619 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EEA-00-00-F0 | 90M100NC0N8N0S1W00EEA0000F0 |
| 83022620 | 90-M-100-NC-0-N-7-N-0-S1-W-00-NNN-00-00-E6 | 90M100NC0N7N0S1W00NNN0000E6 |
| 83022621 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EBA-00-00-F3 | 90M100NC0N8N0S1W00EBA0000F3 |
| 83022622 | 90-M-100-NC-0-N-7-N-0-S1-W-00-EBA-00-00-E6 | 90M100NC0N7N0S1W00EBA0000E6 |
| 83022623 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EEA-00-00-G0 | 90M100NC0N8N0S1W00EEA0000G0 |
| 83022624 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-E6 | 90M100NC0N8N0K3W00NNN0000E6 |
| 83022625 | 90-M-100-NC-0-N-7-N-0-S1-W-00-EBB-00-00-F0 | 90M100NC0N7N0S1W00EBB0000F0 |
| 83022626 | 90-M-100-NC-0-N-8-N-0-K3-W-00-EBA-00-00-F0 | 90M100NC0N8N0K3W00EBA0000F0 |
| 83022627 | 90-M-100-NC-0-N-7-N-0-C7-W-00-EEA-00-00-F0 | 90M100NC0N7N0C7W00EEA0000F0 |
| 83022628 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EBA-00-00-E6 | 90M100NC0N8N0S1W00EBA0000E6 |
| 83022644 | 90-M-100-NC-0-N-8-N-0-K3-N-00-NNN-00-00-00 | 90M100NC0N8N0K3N00NNN000000 |
| 83022645 | 90-M-100-NC-0-N-8-N-0-F1-N-00-EBA-00-00-00 | 90M100NC0N8N0F1N00EBA000000 |
| 83022646 | 90-M-100-NC-0-N-8-N-0-S1-N-00-EEA-00-00-00 | 90M100NC0N8N0S1N00EEA000000 |
| 83022647 | 90-M-100-NC-0-N-7-N-0-F1-N-00-NNN-00-00-00 | 90M100NC0N7N0F1N00NNN000000 |
| 83022648 | 90-M-100-NC-0-N-7-N-0-S1-N-00-NNN-00-00-00 | 90M100NC0N7N0S1N00NNN000000 |
| 83022758 | 90-M-100-NC-0-N-7-N-0-C7-W-00-NNN-00-00-G0 | 90M100NC0N7N0C7W00NNN0000G0 |
| 83022759 | 90-M-100-NC-0-N-7-N-0-C7-W-00-NNN-00-00-F0 | 90M100NC0N7N0C7W00NNN0000F0 |
| 83022799 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-E6 | 90M100NC0N8N0F1W00NNN0000E6 |
| 83022800 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-F3 | 90M100NC0N8N0F1W00NNN0000F3 |
| 83022801 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-G0 | 90M100NC0N8N0F1W00NNN0000G0 |
| 83022802 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-G0 | 90M100NC0N8N0S1W00NNN0000G0 |
| 83022810 | 90-M-100-NC-0-N-7-N-0-C7-N-00-EBB-00-00-00 | 90M100NC0N7N0C7N00EBB000000 |
| 83022811 | 90-M-100-NC-0-N-8-N-0-F1-N-00-NNN-00-00-00 | 90M100NC0N8N0F1N00NNN000000 |
| 83022812 | 90-M-100-NC-0-N-G-N-0-F1-W-00-EAH-00-00-F0 | 90M100NC0NGN0F1W00EAH0000F0 |
| 83022813 | 90-M-100-NC-0-N-7-N-0-C7-N-00-NNN-00-00-00 | 90M100NC0N7N0C7N00NNN000000 |
| 83022814 | 90-M-100-NC-0-N-8-N-0-S1-N-00-NNN-00-00-00 | 90M100NC0N8N0S1N00NNN000000 |
| 83022861 | 90-M-100-NC-0-N-G-N-0-L1-W-00-JAF-00-00-F0 | 90M100NC0NGN0L1W00JAF0000F0 |
| 83022944 | 90-M-100-NC-0-N-8-N-0-K3-N-00-EHD-00-00-00 | 90M100NC0N8N0K3N00EHD000000 |
| 83022988 | 90-M-100-NC-0-N-3-N-0-S1-W-00-NNN-00-00-F3 | 90M100NC0N3N0S1W00NNN0000F3 |
| 83022989 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EFA-00-00-F0 | 90M100NC0N8N0S1W00EFA0000F0 |
| 83022990 | 90-M-100-NC-0-N-8-N-0-T2-W-00-NNN-00-00-F0 | 90M100NC0N8N0T2W00NNN0000F0 |
| 83023041 | 90-M-100-NC-0-N-8-N-0-T2-W-00-EEA-00-00-F0 | 90M100NC0N8N0T2W00EEA0000F0 |
| 83023052 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-G3 | 90M100NC0N8N0F1W00NNN0000G3 |
| 83023053 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-N6 | 90M100NC0N8N0S1W00NNN0000N6 |
| 83023054 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EAA-00-00-N6 | 90M100NC0N8N0S1W00EAA0000N6 |
| 83023055 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EEA-00-00-G3 | 90M100NC0N8N0S1W00EEA0000G3 |
| 83023092 | 90-M-100-NC-0-N-8-N-0-C7-N-00-NNN-00-00-00 | 90M100NC0N8N0C7N00NNN000000 |
| 83023093 | 90-M-100-NC-0-N-7-N-0-C7-W-00-NNN-00-00-F3 | 90M100NC0N7N0C7W00NNN0000F3 |
| 83023150 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-24 | 90M100NC0N8N0K3W00NNN000024 |
| 83023169 | 90-M-100-NC-0-N-8-N-0-C7-W-00-CAA-00-00-24 | 90M100NC0N8N0C7W00CAA000024 |
| 83023170 | 90-M-100-NC-0-N-3-N-0-F1-W-00-NNN-00-00-24 | 90M100NC0N3N0F1W00NNN000024 |
| 83023171 | 90-M-100-NC-0-N-7-N-0-C7-W-00-EFB-00-00-24 | 90M100NC0N7N0C7W00EFB000024 |
| 83023172 | 90-M-100-NC-0-N-7-N-0-F1-W-00-EBA-00-00-24 | 90M100NC0N7N0F1W00EBA000024 |
| 83023173 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EBA-00-00-24 | 90M100NC0N8N0F1W00EBA000024 |
| 83023174 | 90-M-100-NC-0-N-7-N-0-C6-W-00-NNN-00-00-24 | 90M100NC0N7N0C6W00NNN000024 |
| 83023175 | 90-M-100-NC-0-N-7-N-0-G7-N-00-LAB-00-00-00 | 90M100NC0N7N0G7N00LAB000000 |
| 83023180 | 90-M-100-NC-0-N-7-N-0-G7-N-00-LAC-00-00-00 | 90M100NC0N7N0G7N00LAC000000 |
| 83023181 | 90-M-100-NC-0-N-7-N-0-C6-N-00-LAB-00-00-00 | 90M100NC0N7N0C6N00LAB000000 |
| 83023188 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-B3 | 90M100NC0N8N0C7W00NNN0000B3 |
| 83023201 | 90-M-100-NC-0-N-8-N-0-C7-W-00-JAF-00-00-F0-P020 | 90M100NC0N8N0C7W00JAF0000F0P020 |
| 83023264 | 90-M-100-NC-0-N-E-N-0-S5-W-00-NNN-00-00-28 | 90M100NC0NEN0S5W00NNN000028 |
| 83023265 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-24 | 90M100NC0N8N0F1W00NNN000024 |
| 83023266 | 90-M-100-NC-0-N-1-N-0-C7-W-00-NNN-00-00-20 | 90M100NC0N1N0C7W00NNN000020 |
| 83023267 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-24 | 90M100NC0N8N0S1W00NNN000024 |
| 83023268 | 90-M-100-NC-0-N-7-N-0-S1-W-00-NNN-00-00-20 | 90M100NC0N7N0S1W00NNN000020 |
| 83023269 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-20 | 90M100NC0N8N0K3W00NNN000020 |
| 83023270 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-20 | 90M100NC0N8N0S1W00NNN000020 |
| 83023271 | 90-M-100-NC-0-N-1-N-0-S1-W-00-NNN-00-00-24 | 90M100NC0N1N0S1W00NNN000024 |
| 83023330 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EBA-00-00-E4 | 90M100NC0N8N0S1W00EBA0000E4 |
| 83023366 | 90-M-100-NC-0-N-7-N-0-S1-W-00-EBA-00-00-24 | 90M100NC0N7N0S1W00EBA000024 |
| 83023367 | 90-M-100-NC-0-N-8-N-0-C6-W-00-NNN-00-00-20 | 90M100NC0N8N0C6W00NNN000020 |
| 83023369 | 90-M-100-NC-0-N-7-N-0-C7-W-00-NNN-00-00-24 | 90M100NC0N7N0C7W00NNN000024 |
| 83023370 | 90-M-100-NC-0-N-7-N-0-F1-W-00-NNN-00-00-24 | 90M100NC0N7N0F1W00NNN000024 |
| 83023371 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-24 | 90M100NC0N8N0C7W00NNN000024 |
| 83023382 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-20 | 90M100NC0N8N0C7W00NNN000020 |
| 83023486 | 90-M-100-NC-0-N-7-N-0-C7-W-00-EAA-00-00-18 | 90M100NC0N7N0C7W00EAA000018 |
| 83023624 | 90-M-100-NC-0-N-7-N-0-F1-W-00-NNN-00-00-20 | 90M100NC0N7N0F1W00NNN000020 |
| 83023628 | 90-M-100-NC-0-N-7-N-0-F1-W-00-NNN-00-00-G0 | 90M100NC0N7N0F1W00NNN0000G0 |
| 83023629 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-G0 | 90M100NC0N8N0C7W00NNN0000G0 |
| 83023630 | 90-M-100-NC-0-N-7-N-0-S1-W-00-NNN-00-00-F3 | 90M100NC0N7N0S1W00NNN0000F3 |
| 83023631 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EBA-00-00-E6 | 90M100NC0N8N0C7W00EBA0000E6 |
| 83023654 | 90-M-100-NC-0-N-8-N-0-F1-W-00-JAH-00-00-24 | 90M100NC0N8N0F1W00JAH000024 |
| 83024288 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-F0 | 90M100NC0N8N0C7W00NNN0000F0 |
| 83024289 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-F3 | 90M100NC0N8N0S1W00NNN0000F3 |
| 83025500 | 90-M-100-NC-0-N-M-N-0-C7-W-00-CBG-00-00-B3 | 90M100NC0NMN0C7W00CBG0000B3 |
| 83025794 | 90-M-100-NC-0-N-8-N-0-K3-N-00-EEA-00-00-00 | 90M100NC0N8N0K3N00EEA000000 |
| 83029172 | 90-M-100-NC-0-N-7-N-0-C7-W-00-EAA-00-00-G0 | 90M100NC0N7N0C7W00EAA0000G0 |
| 83029337 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EEA-00-00-F0 | 90M100NC0N8N0F1W00EEA0000F0 |
| 83029634 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-F3 | 90M100NC0N8N0K3W00NNN0000F3 |
| 83030008 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EAA-00-00-F3 | 90M100NC0N8N0S1W00EAA0000F3 |
| 83031131 | 90-M-100-NC-0-N-7-N-0-F1-W-00-NNN-00-00-F0 | 90M100NC0N7N0F1W00NNN0000F0 |
| 83031777 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EAA-00-00-E4 | 90M100NC0N8N0S1W00EAA0000E4 |
| 83032484 | 90-M-100-NC-0-N-8-N-0-K3-W-00-EAA-00-00-E4 | 90M100NC0N8N0K3W00EAA0000E4 |
| 83034763 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-G0 | 90M100NC0N8N0S1W00NNN0000G0 |
| 83035513 | 90-M-100-NC-0-N-1-N-0-F1-W-00-GTA-00-00-24 | 90M100NC0N1N0F1W00GTA000024 |
| 83036747 | 90-M-100-NC-0-N-3-N-0-S1-N-00-NNN-00-00-00 | 90M100NC0N3N0S1N00NNN000000 |
| 83038790 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EEA-00-00-G0 | 90M100NC0N8N0F1W00EEA0000G0 |
| 83038861 | 90-M-100-NC-0-N-8-N-0-C6-W-00-NNN-00-00-E6 | 90M100NC0N8N0C6W00NNN0000E6 |
| 83041969 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-F0 | 90M100NC0N8N0S1W00NNN0000F0 |
| 83043376 | 90-M-100-NC-0-N-7-N-0-S1-W-00-NNN-00-00-24 | 90M100NC0N7N0S1W00NNN000024 |
| 83043415 | 90-M-100-NC-0-N-1-N-0-S1-W-00-NNN-00-00-F3 | 90M100NC0N1N0S1W00NNN0000F3 |
| 83044084 | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-A0 | 90M100NC0N8N0F1W00NNN0000A0 |
| 83045647 | 90-M-100-NC-0-N-8-N-0-C6-W-00-NNN-00-00-G0 | 90M100NC0N8N0C6W00NNN0000G0 |
| 83051265 | 90-M-100-NC-0-N-8-N-0-K3-W-00-NNN-00-00-E6 | 90M100NC0N8N0K3W00NNN0000E6 |
| 83057534 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EGL-00-00-F0 | 90M100NC0N8N0S1W00EGL0000F0 |
| 83058143 | 90-M-100-NC-0-N-X-N-0-C7-W-00-NNN-00-00-B3 | 90M100NC0NXN0C7W00NNN0000B3 |
| 83058352 | 90-M-100-NC-0-N-8-N-0-K3-W-00-EGL-00-00-F0 | 90M100NC0N8N0K3W00EGL0000F0 |
| 83059040 | 90-M-100-NC-0-N-7-N-0-K3-W-00-NNN-00-00-F0 | 90M100NC0N7N0K3W00NNN0000F0 |
| 83059500 | 90-M-100-NC-0-N-8-N-0-S1-N-00-EFA-00-00-00 | 90M100NC0N8N0S1N00EFA000000 |
| 83061433 | 90-M-100-NC-0-N-1-N-0-S1-W-00-NNN-00-00-G0 | 90M100NC0N1N0S1W00NNN0000G0 |
| 83065140 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-E6 | 90M100NC0N8N0S1W00NNN0000E6 |
| 83065166 | 90-M-100-NC-0-N-W-N-0-C7-W-00-CBC-00-00-B3 | 90M100NC0NWN0C7W00CBC0000B3 |
| 83067205 | 90-M-100-NC-0-N-7-N-0-C7-W-00-EFA-00-00-F3 | 90M100NC0N7N0C7W00EFA0000F3 |
| 83073066 | 90-M-100-NC-0-N-7-N-0-S1-W-00-NNN-00-00-G0 | 90M100NC0N7N0S1W00NNN0000G0 |
| 83079692 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EBA-00-00-E6 | 90M100NC0N8N0F1W00EBA0000E6 |
| 83083549 | 90-M-100-NC-0-N-8-N-0-C6-W-00-NNN-00-00-G0 | 90M100NC0N8N0C6W00NNN0000G0 |
| 83086677 | 90-M-100-NC-0-N-8-N-0-K3-N-00-NNN-00-00-00 | 90M100NC0N8N0K3N00NNN000000 |
| 83088050 | 90-M-100-NC-0-N-8-N-0-T2-W-00-EFA-00-00-F3 | 90M100NC0N8N0T2W00EFA0000F3 |
| 83088232 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-E4 | 90M100NC0N8N0S1W00NNN0000E4 |
| 83089978 | 90-M-100-NC-0-N-7-N-0-C7-W-00-EAA-00-00-F3 | 90M100NC0N7N0C7W00EAA0000F3 |
| 83091010 | 90-M-100-NC-0-N-8-N-0-F1-N-00-NNN-00-00-00 | 90M100NC0N8N0F1N00NNN000000 |
| 83092389 | 90-M-100-NC-0-N-8-N-0-F1-W-00-EEA-00-00-F3 | 90M100NC0N8N0F1W00EEA0000F3 |
| 83093565 | 90-M-100-NC-0-N-8-N-0-S5-W-00-NNN-00-00-F3 | 90M100NC0N8N0S5W00NNN0000F3 |
| 83094884 | 90-M-100-NC-0-N-8-N-0-K3-W-00-EBA-00-00-F3 | 90M100NC0N8N0K3W00EBA0000F3 |
| 90328 | 90-M-100-NC-0-N-8-N-0-S1-W-00-NNN-00-00-E4 | 90M100NC0N8N0S1W00NNN0000E4 |
| 90396 | 90-M-100-NC-0-N-8-N-0-C7-W-00-EBA-00-00-24 | 90M100NC0N8N0C7W00EBA000024 |
| 90534 | 90-M-100-NC-0-N-8-N-0-C7-W-00-NNN-00-00-E6 | 90M100NC0N8N0C7W00NNN0000E6 |
| 96-3154 | 90-M-100-NC-0-N-8-N-0-S1-N-00-NNN-00-00-00 | 90M100NC0N8N0S1N00NNN000000 |
| 9631052 | 90-M-100-NC-0-N-8-N-0-S1-W-00-EAA-00-00-F3 | 90M100NC0N8N0S1W00EAA0000F3 |
| 9631091 | 90-M-100-NC-0-N-7-N-0-C7-W-00-NNN-00-00-E6 | 90M100NC0N7N0C7W00NNN0000E6 |
| 9631107C | 90-M-100-NC-0-N-8-N-0-F1-W-00-NNN-00-00-G0 | 90M100NC0N8N0F1W00NNN0000G0 |
90M130
| Артикул | Полный код мотора | Полный код мотора |
| 11000847 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EBA-00-00-E6 | 90M130NC0N8N0F1W00EBA0000E6 |
| 11001147 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EAD-00-00-G3-P040 | 90M130NC0N8N0C8W00EAD0000G3P040 |
| 11001488 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EBA-00-00-E6 | 90M130NC0N8N0C8W00EBA0000E6 |
| 11001527 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-G3-P040 | 90M130NC0N8N0C8W00NNN0000G3P040 |
| 11005932 | 90-M-130-NC-0-N-Z-N-0-C8-D-00-HAA-00-00-NH | 90M130NC0NZN0C8D00HAA0000NH |
| 11006033 | 90-M-130-NC-0-N-8-N-0-F1-N-00-EBA-00-00-00 | 90M130NC0N8N0F1N00EBA000000 |
| 11010281 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EEA-00-00-G0 | 90M130NC0N8N0F1W00EEA0000G0 |
| 11012744 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-E6 | 90M130NC0N8N0C8W00NNN0000E6 |
| 11013493 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EBA-00-00-B0 | 90M130NC0N8N0F1W00EBA0000B0 |
| 11014821 | 90-M-130-NC-0-N-8-N-0-F1-W-00-NNN-00-00-E6 | 90M130NC0N8N0F1W00NNN0000E6 |
| 11014822 | 90-M-130-NC-0-N-8-N-0-F1-W-00-NNN-00-00-G0 | 90M130NC0N8N0F1W00NNN0000G0 |
| 11025270 | 90-M-130-NC-0-N-8-N-0-F1-W-00-NNN-00-00-E4 | 90M130NC0N8N0F1W00NNN0000E4 |
| 11040381 | 90-M-130-NC-0-N-Y-N-0-C8-D-00-HAC-00-00-NH | 90M130NC0NYN0C8D00HAC0000NH |
| 11056019 | 90-M-130-NC-0-N-G-N-0-C8-W-00-EAH-00-00-F0 | 90M130NC0NGN0C8W00EAH0000F0 |
| 11071386 | 90-M-130-NC-0-N-G-N-0-C8-W-00-JAF-00-00-F3 | 90M130NC0NGN0C8W00JAF0000F3 |
| 501391 | 90-M-130-NC-0-N-8-N-0-F1-W-00-NNN-00-00-F3 | 90M130NC0N8N0F1W00NNN0000F3 |
| 510911 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-F3 | 90M130NC0N8N0C8W00NNN0000F3 |
| 513635 | 90-M-130-NC-0-N-8-N-0-C8-W-00-JAB-00-00-A3 | 90M130NC0N8N0C8W00JAB0000A3 |
| 515400 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-A3 | 90M130NC0N8N0C8W00NNN0000A3 |
| 515797 | 90-M-130-NC-0-N-U-N-0-F1-H-00-LAA-00-00-NH | 90M130NC0NUN0F1H00LAA0000NH |
| 516103 | 90-M-130-NC-0-N-8-N-0-F1-W-00-GBG-00-00-G3 | 90M130NC0N8N0F1W00GBG0000G3 |
| 516312 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-F0 | 90M130NC0N8N0C8W00NNN0000F0 |
| 516886 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EEA-00-00-G3 | 90M130NC0N8N0C8W00EEA0000G3 |
| 517606 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-G0 | 90M130NC0N8N0C8W00NNN0000G0 |
| 518171 | 90-M-130-NC-0-N-U-N-0-F1-H-00-LAA-00-00-K0 | 90M130NC0NUN0F1H00LAA0000K0 |
| 518295 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EEA-00-00-G0 | 90M130NC0N8N0C8W00EEA0000G0 |
| 518836 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EEH-00-00-F3 | 90M130NC0N8N0F1W00EEH0000F3 |
| 519056 | 90-M-130-NC-0-N-8-N-0-F3-W-00-EGF-00-00-F3 | 90M130NC0N8N0F3W00EGF0000F3 |
| 519533 | 90-M-130-NC-0-N-U-N-0-F1-D-00-LAA-00-00-NH | 90M130NC0NUN0F1D00LAA0000NH |
| 519901 | 90-M-130-NC-0-N-U-N-0-F1-D-00-LAA-00-00-K0 | 90M130NC0NUN0F1D00LAA0000K0 |
| 702678 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EEA-00-00-F0 | 90M130NC0N8N0C8W00EEA0000F0 |
| 715730 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EEA-00-00-F3 | 90M130NC0N8N0F1W00EEA0000F3 |
| 719948 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-G3 | 90M130NC0N8N0C8W00NNN0000G3 |
| 780007 | 90-M-130-NC-0-N-8-N-0-C8-N-00-NNN-00-00-00 | 90M130NC0N8N0C8N00NNN000000 |
| 83019410 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EEA-00-00-G3 | 90M130NC0N8N0F1W00EEA0000G3 |
| 83021171 | 90-M-130-NC-0-N-8-N-0-C8-W-00-NNN-00-00-B3 | 90M130NC0N8N0C8W00NNN0000B3 |
| 83023976 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EBA-00-00-G3 | 90M130NC0N8N0C8W00EBA0000G3 |
| 83031005 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EBA-00-00-F0 | 90M130NC0N8N0C8W00EBA0000F0 |
| 83058112 | 90-M-130-NC-0-N-8-N-0-C8-W-00-HAA-00-00-G3 | 90M130NC0N8N0C8W00HAA0000G3 |
| 83058175 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EGL-00-00-F3 | 90M130NC0N8N0F1W00EGL0000F3 |
| 83058248 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EBA-00-00-G0 | 90M130NC0N8N0C8W00EBA0000G0 |
| 83061422 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EGL-00-00-F0 | 90M130NC0N8N0C8W00EGL0000F0 |
| 83063598 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EGL-00-00-E6 | 90M130NC0N8N0C8W00EGL0000E6 |
| 83066700 | 90-M-130-NC-0-N-Y-N-0-F1-D-00-NNN-00-00-NJ | 90M130NC0NYN0F1D00NNN0000NJ |
| 83067705 | 90-M-130-NC-0-N-Y-N-0-C8-D-00-NNN-00-00-K0 | 90M130NC0NYN0C8D00NNN0000K0 |
| 83083266 | 90-M-130-NC-0-N-8-N-0-C8-W-00-EEA-00-00-F3 | 90M130NC0N8N0C8W00EEA0000F3 |
| 83089292 | 90-M-130-NC-0-N-8-N-0-F1-W-00-NNN-00-00-B0 | 90M130NC0N8N0F1W00NNN0000B0 |
| 83091378 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EBA-00-00-A3 | 90M130NC0N8N0F1W00EBA0000A3 |
| 83093535 | 90-M-130-NC-0-N-8-N-0-F3-W-00-EEG-00-00-F3 | 90M130NC0N8N0F3W00EEG0000F3 |
| 9731000 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EBA-00-00-G3 | 90M130NC0N8N0F1W00EBA0000G3 |
| 9731051 | 90-M-130-NC-0-N-8-N-0-F1-N-00-NNN-00-00-00 | 90M130NC0N8N0F1N00NNN000000 |
| 9731057 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EBA-00-00-F0 | 90M130NC0N8N0F1W00EBA0000F0 |
| 9731058 | 90-M-130-NC-0-N-8-N-0-F1-W-00-NNN-00-00-G3 | 90M130NC0N8N0F1W00NNN0000G3 |
| 9731059 | 90-M-130-NC-0-N-8-N-0-C8-N-00-EBA-00-00-00 | 90M130NC0N8N0C8N00EBA000000 |
| 9731060 | 90-M-130-NC-0-N-8-N-0-F1-W-00-NNN-00-00-F0 | 90M130NC0N8N0F1W00NNN0000F0 |
| 9731061 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EEA-00-00-F0 | 90M130NC0N8N0F1W00EEA0000F0 |
| 9731062 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EBA-00-00-G0 | 90M130NC0N8N0F1W00EBA0000G0 |
| 9731063 | 90-M-130-NC-0-N-8-N-0-F1-N-00-EEA-00-00-00 | 90M130NC0N8N0F1N00EEA000000 |
| 9731067 | 90-M-130-NC-0-N-8-N-0-L7-W-00-NNN-00-00-F3 | 90M130NC0N8N0L7W00NNN0000F3 |
| 9731068 | 90-M-130-NC-0-N-8-N-0-F1-W-00-EEA-00-00-E6 | 90M130NC0N8N0F1W00EEA0000E6 |
Q: Are you trading company or manufacturer ?
A: We are factory and trading company.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: We can provide samples, but not for free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have more questions, pls feel free to contact us as below:
sales@bailehydraulic.com
WeChat/WhatsApp：0086 18060096097
Related products
-

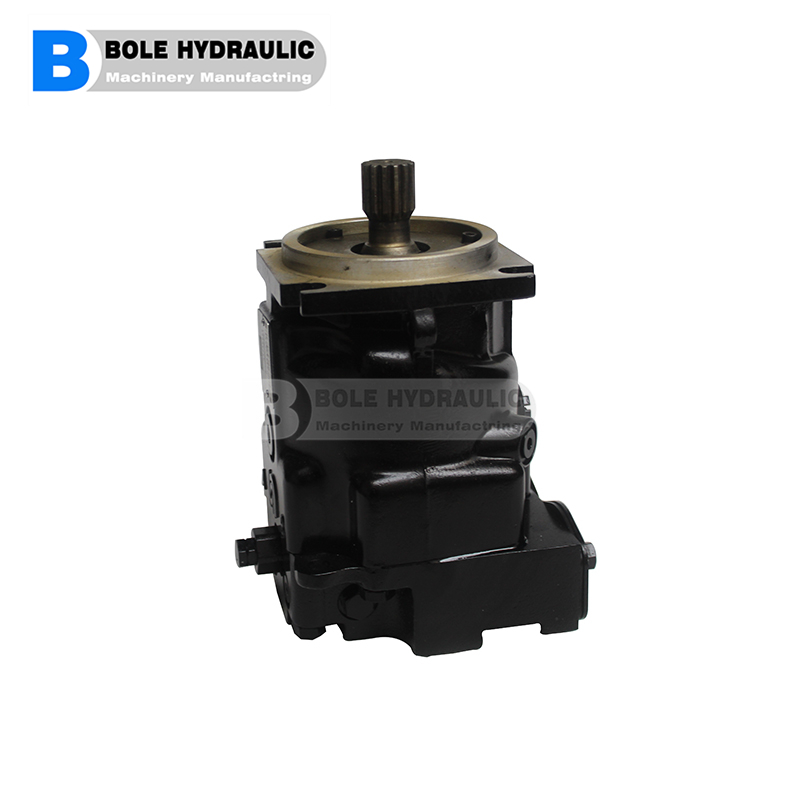

Danfoss 90M042 90M055 90M075 Hydraulic Motor Replacement
Danfoss 90M Series -
Danfoss H1B110 H1B060 Bent Axis Variable Displacement Axial Piston Motor
Danfoss H1B Series -
Danfoss H1B210 H1B 160 Bent Axis Variable Displacement Axial Piston Motor
Danfoss H1B Series -
Danfoss H1B250 Bent Axis Variable Displacement Axial Piston Motor
Danfoss H1B Series
