Baile Hydraulic Oem Rexroth Fixed Displacment Pump AA2FO107 AA2FO125 AA2FO160
Series 6
Sizes Nominal pressure/Peak pressure
5 4600/5100 psi (315/350 bar)
10…200 5800/6500 psi (400/450 bar)
250…1000 5100/5800 psi (350/400 bar)
open circuits
Features
– Fixed displacement pump AA2FO of axial piston, bent axis
design, suitable for hydrostatic drives in open circuits
– Use in mobile and industrial applications
– Output flow is proportional to drive speed and displacement
– The drive shaft bearings are designed to give the service life
expected in these areas of operation
– High power density
– Compact design
– High overall efficiency
– Cost effective concept
– One piece pistons with piston rings

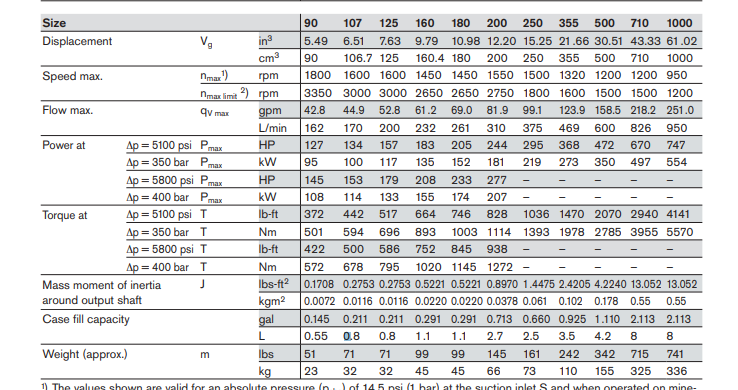

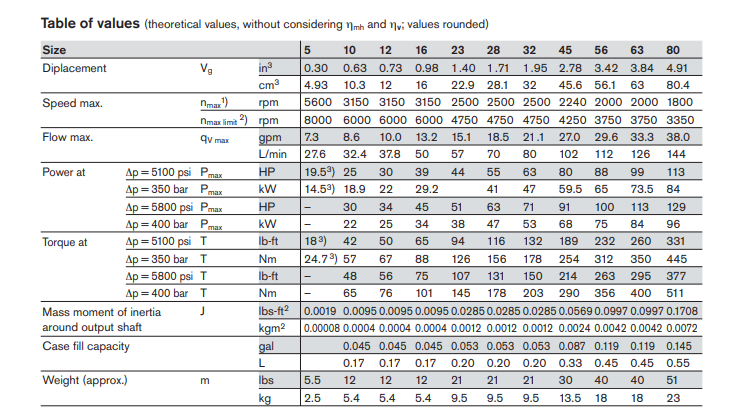

| Size | 5 | 10 | 12 | 16 | 23 | 28 | 32 | 107 | 125 | 160 | 180 | 200 | 250 | 355 | 500 | 710 | 1000 | |||
| Displacement geometric, per revolution |
Vg | cm³ | 4.93 | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 106.7 | 125 | 160.4 | 180 | 200 | 250 | 355 | 500 | 710 | 1000 | |
| Nominal pressure | pnom | bar | 315 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 350 | 350 | 350 | 350 | 350 | |
| Maximum pressure | pmax | bar | 350 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 400 | 400 | 400 | 400 | 400 | |
| Maximum speed | nnom 1) | rpm | 5600 | 3150 | 3150 | 3150 | 2500 | 2500 | 2500 | 1600 | 1600 | 1450 | 1450 | 1550 | 1500 | 1320 | 1200 | 1200 | 950 | |
| nmax 2) | rpm | 8000 | 6000 | 6000 | 6000 | 4750 | 4750 | 4750 | 3000 | 3000 | 2650 | 2650 | 2750 | 1800 | 1600 | 1500 | 1500 | 1200 | ||
| Flow | at nnom | qV | l/min | 27.6 | 32 | 38 | 50 | 57 | 70 | 80 | 171 | 200 | 233 | 261 | 310 | 375 | 469 | 600 | 852 | 950 |
| Power | at nnom and pnom | P | kW | 14.5 | 22 | 25 | 34 | 38 | 47 | 53 | 114 | 133 | 155 | 174 | 207 | 219 | 273 | 350 | 497 | 554 |
| Torque 3) | at pnom | M | Nm | 24.7 | 66 | 76 | 102 | 146 | 179 | 204 | 679 | 796 | 1021 | 1146 | 1273 | 1393 | 1978 | 2785 | 3955 | 5570 |
| Rotary stiffness | c | kNm/rad | 0.63 | 0.92 | 1.25 | 1.59 | 2.56 | 2.93 | 3.12 | 11.2 | 11.9 | 17.4 | 18.2 | 57.3 | 73.1 | 96.1 | 144 | 270 | 324 | |
| Moment of inertia for rotary group | JTW | kg·m² | 0.00006 | 0.0004 | 0.0004 | 0.0004 | 0.0012 | 0.0012 | 0.0012 | 0.0116 | 0.0116 | 0.022 | 0.022 | 0.0353 | 0.061 | 0.102 | 0.178 | 0.55 | 0.55 | |
| Maximum angular acceleration | ɑ | rad/s² | 5000 | 5000 | 5000 | 5000 | 6500 | 6500 | 6500 | 4500 | 4500 | 3500 | 3500 | 11000 | 10000 | 8300 | 5500 | 4300 | 4500 | |
| Case volume | V | l | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.8 | 0.8 | 1.1 | 1.1 | 2.7 | 2.5 | 3.5 | 4.2 | 8 | 8 | ||
| Weight (approx.) | m | kg | 2.5 | 6 | 6 | 6 | 9.5 | 9.5 | 9.5 | 32 | 32 | 45 | 45 | 66 | 73 | 110 | 155 | 325 | 336 | |
A2FO107/61L-PBB05
R902215493
A2FO107/61L-PPB05
R902137538
A2FO107/61L-PPB05
R902137537
A2FO107/61L-PPB05
R902137554
A2FO107/61L-VAB05
R902161173
A2FO107/61L-VBB05
R902161047
A2FO107/61L-VBB05
R902137553
A2FO107/61L-VBB05-S
R902137529
A2FO107/61L-VPB05
R902215018
A2FO107/61L-VPB05
R902137935
A2FO107/61R-PAB05
R902138020
A2FO107/61R-PBB05
R902137515
A2FO107/61R-PBB05
R902248356
A2FO107/61R-PPB05
R902161011
A2FO107/61R-PPB05
R902137765
A2FO107/61R-PPB05
R902137769
A2FO107/61R-PPB05
R902230047
A2FO107/61R-PPB05 *GO2EU*
R902160881
A2FO107/61R-PPB105
R902137761
A2FO107/61R-PZB05
R902200497
A2FO107/61R-VAB05
R902138453
A2FO107/61R-VBB05
R902161159
A2FO107/61R-VBB05
R902137518
A2FO107/61R-VBB05-S
R902137979
A2FO107/61R-VPB05
R902137978
A2FO107/61R-VPB05
R902138476
A2FO107/61R-VPB05-S
R902245783
A2FO107/61R-VZB05
R902198198
A2FO12/61L-PAB06-S
R902201812
A2FO12/61L-PPB06-S
R902201838
A2FO12/61L-PPB06-S
R902193373
A2FO12/61L-PZB06
R902193349
A2FO12/61L-PZB06
R902255690
A2FO12/61L-PZB06
R902193750
A2FO12/61L-PZB06-S
R902201865
A2FO12/61L-PZB06-S
R902250990
A2FO12/61L-VAB06
R902205888
A2FO12/61L-VPB06
R902237452
A2FO12/61L-VPB06
R902201651
A2FO12/61L-VPB06
R902215368
A2FO12/61L-VPB06
R902193567
A2FO12/61L-VPB06
R902161467
A2FO12/61R-PAB06
R902163680
A2FO12/61R-PAB06
R902247163
A2FO12/61R-PAB06
R992001510
A2FO12/61R-PAB06
R902161287
A2FO12/61R-PAB06
R902193748
A2FO12/61R-PBB06
R902241843
A2FO12/61R-PBB06
R902197580
A2FO12/61R-PBB06
R902197507
A2FO12/61R-PBB06
R902193364
A2FO12/61R-PBB06
R902208847
A2FO12/61R-PPB06
R902222071
A2FO12/61R-PPB06
R902193365
A2FO12/61R-PPB06
R902193573
A2FO12/61R-PPB06-S
R902193357
A2FO12/61R-PZB06
R902227887
A2FO12/61R-PZB06
R902193350
A2FO12/61R-PZB06
R902193368
A2FO12/61R-PZB06
R992001511
A2FO12/61R-PZB06
R902197929
A2FO12/61R-PZB06-S
R902197649
A2FO12/61R-PZB06-S
R902197990
A2FO12/61R-VAB06
R902204680
A2FO12/61R-VAB06
R902245924
A2FO12/61R-VAB06
R902204761
A2FO12/61R-VAB06
R902230048
A2FO12/61R-VAB06 *GO2EU*
R902197995
A2FO12/61R-VBB06
R902198291
A2FO12/61R-VBB06
R902197609
A2FO12/61R-VBB06-S
R902201987
A2FO12/61R-VPB06
R902197775
A2FO12/61R-VPB06
R902197927
A2FO12/61R-VPB06
R902197831
A2FO12/61R-VPB06-S
R902197965
A2FO12/61R-VZB06
R902198171
A2FO12/61R-VZB06
R909427604
A2FO12/61R-VZB06
R902276964
A2FO12/61R-XABXX-S
R902137532
A2FO125/61L-PAB05
R902137530
A2FO125/61L-PBB05
R902137531
A2FO125/61L-PBB05
R902275550
A2FO125/61L-VAB05
R902161272
A2FO125/61L-VAB05
R902137910
A2FO125/61L-VBB05
R902193844
A2FO125/61L-VBB05
R902227777
A2FO125/61L-VBB05-Y
R902137715
A2FO125/61R-PAB05
R902137699
A2FO125/61R-PBB05
R902138190
A2FO125/61R-PBB05
R902137723
A2FO125/61R-PBB05
R902137802
A2FO125/61R-PBB05
R902138472
A2FO125/61R-PPB05
R902205942
A2FO125/61R-PPB05
R902223058
A2FO125/61R-VAB05
R902193121
A2FO125/61R-VBB05
R902137986
A2FO125/61R-VBB05
R902161402
A2FO125/61R-VBB05
R902230049
A2FO125/61R-VBB05 *GO2EU*
R902137564
A2FO125/61R-VBB05-S
R902137565
A2FO125/61R-VBB05-S
R902245698
A2FO16/61L-PAB06
R902193393
A2FO16/61L-PAB06
R902193385
A2FO16/61L-PAB06
R992001512
A2FO16/61L-PAB06
R902155804
A2FO16/61L-PAB06
R902197610
A2FO16/61L-PAB06-S
R902197973
A2FO16/61L-PAB06-S
R902198149
A2FO16/61L-PAB06-S
R902197813
A2FO16/61L-PAB06-S
R902201696
A2FO16/61L-PAB06-S
R902197608
A2FO16/61L-PAB06-S
R902197628
A2FO16/61L-PAB06-S
R902193958
A2FO16/61L-PAB06-S
R902161009
A2FO16/61L-PBB06
R902233782
A2FO16/61L-PBB06
R902160986
A2FO16/61L-PBB06-S
R902197544
A2FO16/61L-VAB06
R902198224
A2FO16/61L-VAB06
R902138352
A2FO16/61L-VAB06-S
R902198172
A2FO16/61L-VBB06
R902193820
A2FO16/61R-PAB06
R902193351
A2FO16/61R-PAB06
R902197701
A2FO16/61R-PAB06-S
R902203116
A2FO16/61R-PABXX-S
R902197512
A2FO16/61R-PBB06
R902222161
A2FO16/61R-PBB06
R902193594
A2FO16/61R-PBB06-S
R902233574
A2FO16/61R-PBB06-S
R902198161
A2FO16/61R-PBB06-S
R902204674
A2FO16/61R-VAB06
R902257625
A2FO16/61R-VAB06
R902193371
A2FO16/61R-VAB06
R902198454
A2FO16/61R-VAB06
R902230050
A2FO16/61R-VAB06 *GO2EU*
R902161026
A2FO16/61R-VAB06-S
R902235288
A2FO16/61R-VBB040
R902208591
A2FO16/61R-VBB040-S
R902257546
A2FO16/61R-VBB040-Y
R902248275
A2FO16/61R-VBB040-Y
R902197803
A2FO16/61R-VBB06
R902193324
A2FO16/61R-VBB06
R902197579
A2FO16/61R-VBB06
R902198207
A2FO16/61R-VBB06-S
R902197546
A2FO16/61R-XABXX-S
R902201632
A2FO160/61L-PAB05-S
R902161053
A2FO160/61L-PBB05
R902226373
A2FO160/61L-PPB05
R902193857
A2FO160/61L-PPB05-S
R902204583
A2FO160/61L-PPB05-S
R902155965
A2FO160/61L-VAB05
R902233624
A2FO160/61L-VPB05
R902201594
A2FO160/61L-VPB05
R902227980
A2FO160/61L-VPB05
R902193878
A2FO160/61R-PBB05-S
R902193581
A2FO160/61R-PBB05-S
R902201520
A2FO160/61R-PBB05-S
R902161309
A2FO160/61R-PPB05
R902205725
A2FO160/61R-PPB05
R902247399
A2FO160/61R-PPB05
R902193875
A2FO160/61R-PPB05-S
R902233710
A2FO160/61R-PSB05
R902207184
A2FO160/61R-VAB05
R902198451
A2FO160/61R-VBB05
R902206563
A2FO160/61R-VBB05
R902197631
A2FO160/61R-VBB05
R902193319
A2FO160/61R-VBB05-S
R902193498
A2FO160/61R-VBB05-S
R902193711
A2FO160/61R-VPB05
R902193550
A2FO160/61R-VPB05
R902201988
A2FO160/61R-VPB05
R902229050
A2FO160/61R-VPB05
R902230051
A2FO160/61R-VPB05 *GO2EU*
R902245632
A2FO160/61R-VZB05
R902197692
A2FO180/61L-PBB05-S
R902201899
A2FO180/61L-VBB05
R902231048
A2FO180/61L-VZB05-S
R902198184
A2FO180/61R-PAB05-S
R902204509
A2FO180/61R-PAB05-S
R902193864
A2FO180/61R-PBB05-S
R902197607
A2FO180/61R-PBB05-S
R902233320
A2FO180/61R-VAB05
R902197510
A2FO180/61R-VBB05
R902249837
A2FO180/61R-VBB05
R902230052
A2FO180/61R-VBB05 *GO2EU*
R902161440
A2FO180/61R-VBB05-S
R902155937
A2FO200/63L-PBB05
R902160044
A2FO200/63L-VAB05
R902197547
A2FO200/63L-VAB05
R902243092
A2FO200/63L-VBB05
R902217844
A2FO200/63R-PBB05
R902207185
A2FO200/63R-PBB05-S
R902233788
A2FO200/63R-VAB05
R902155847
A2FO200/63R-VAB05
R902200487
A2FO200/63R-VAB05
R902155654
Piston pump
A: We are factory and trading company.
A: Generally it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: We can provide samples, but not for free.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
