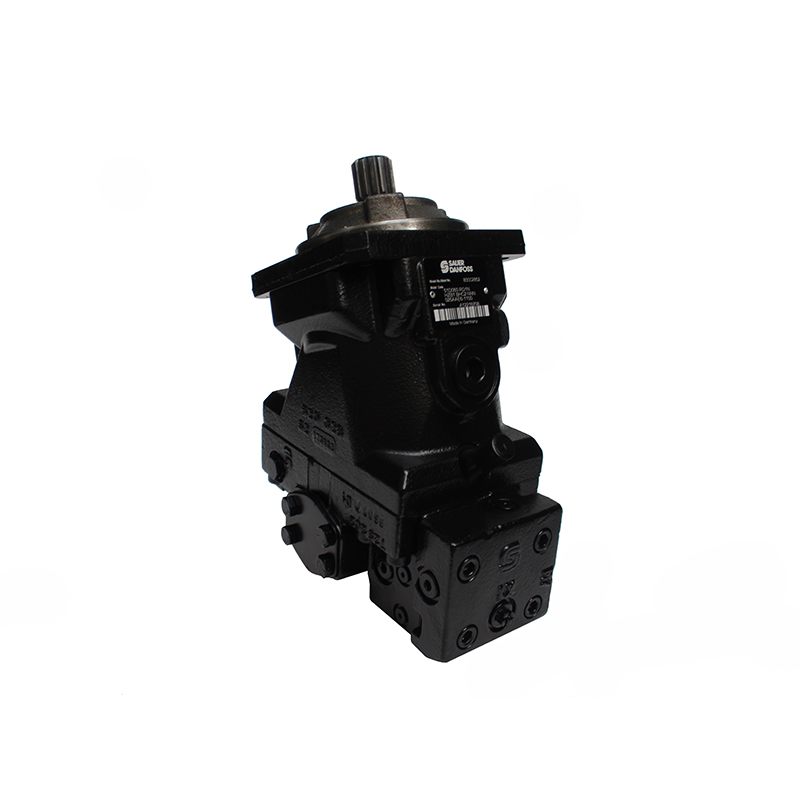

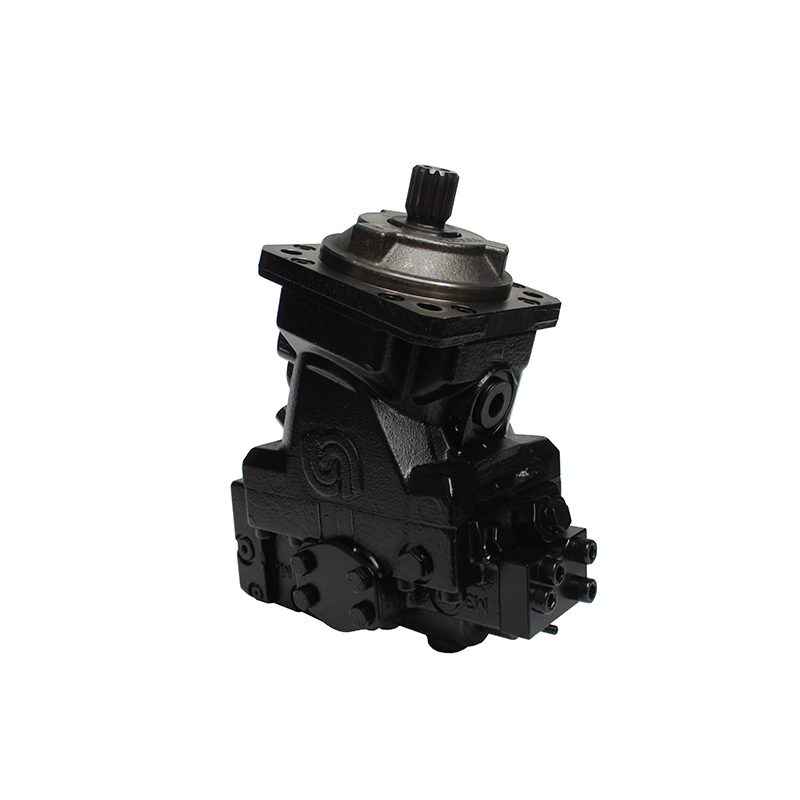

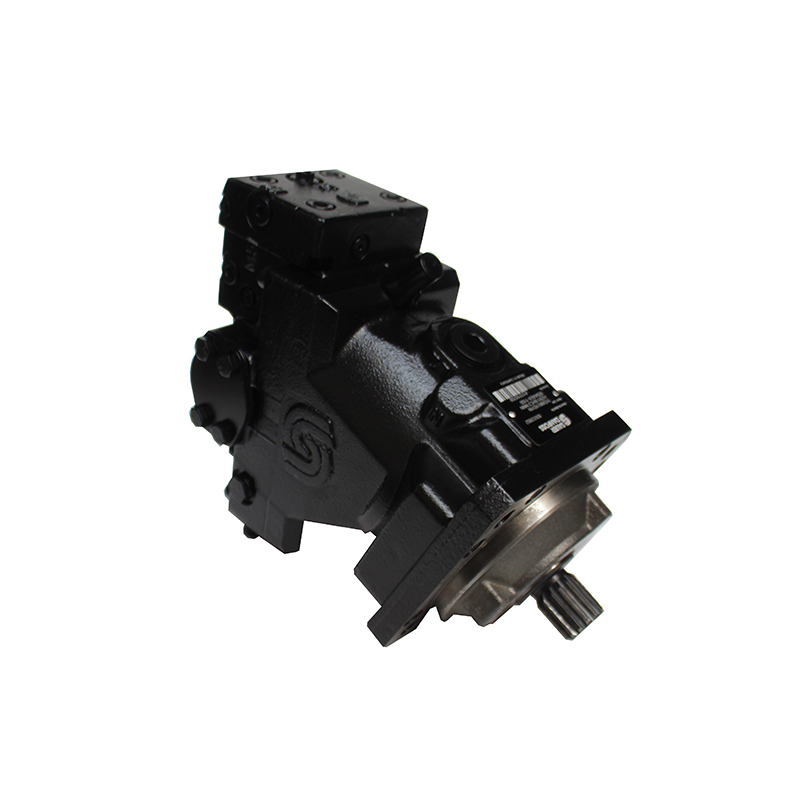

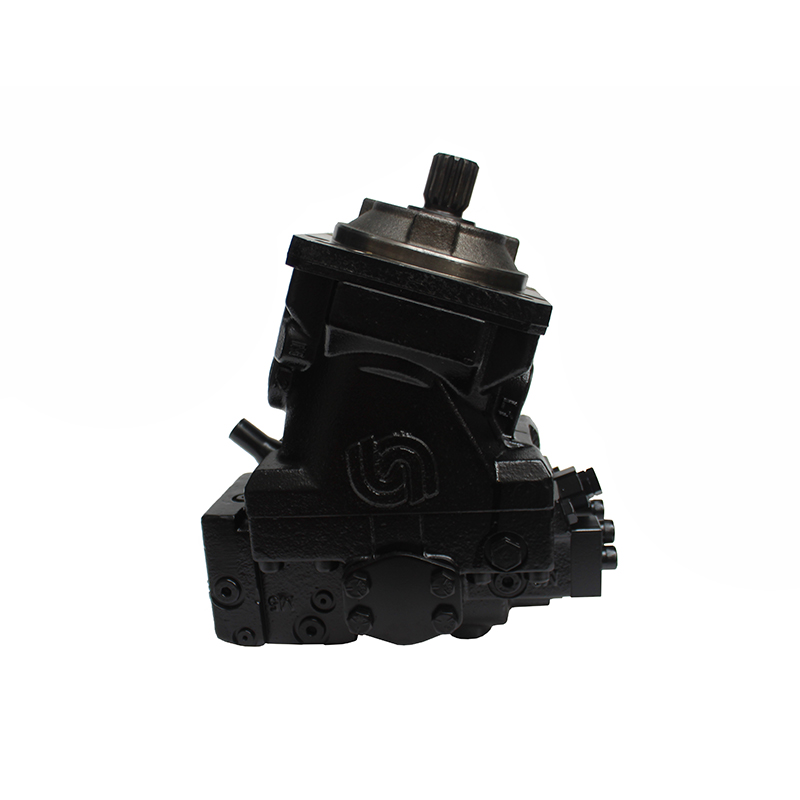

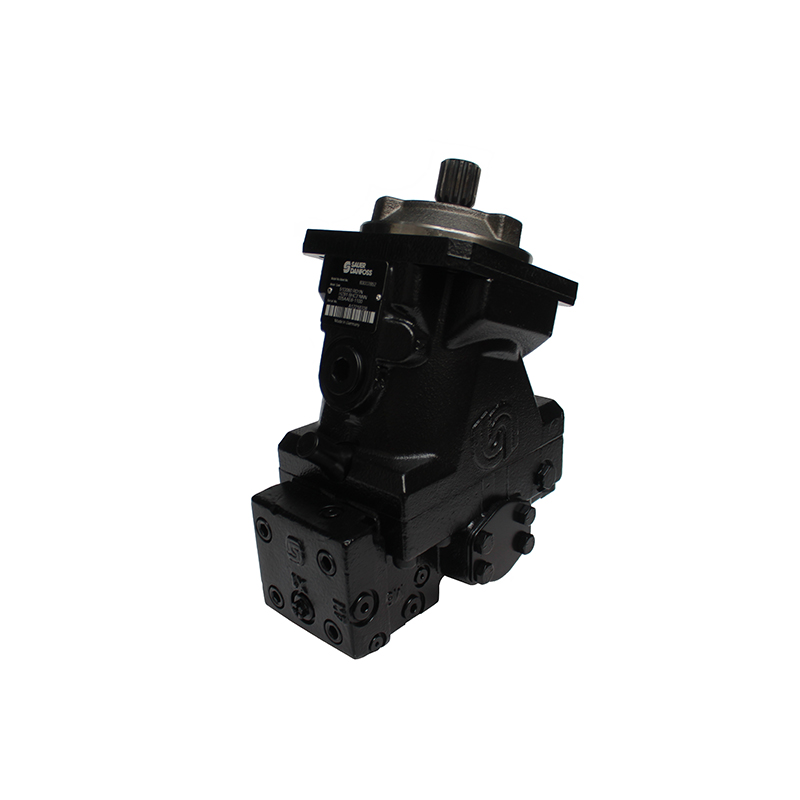

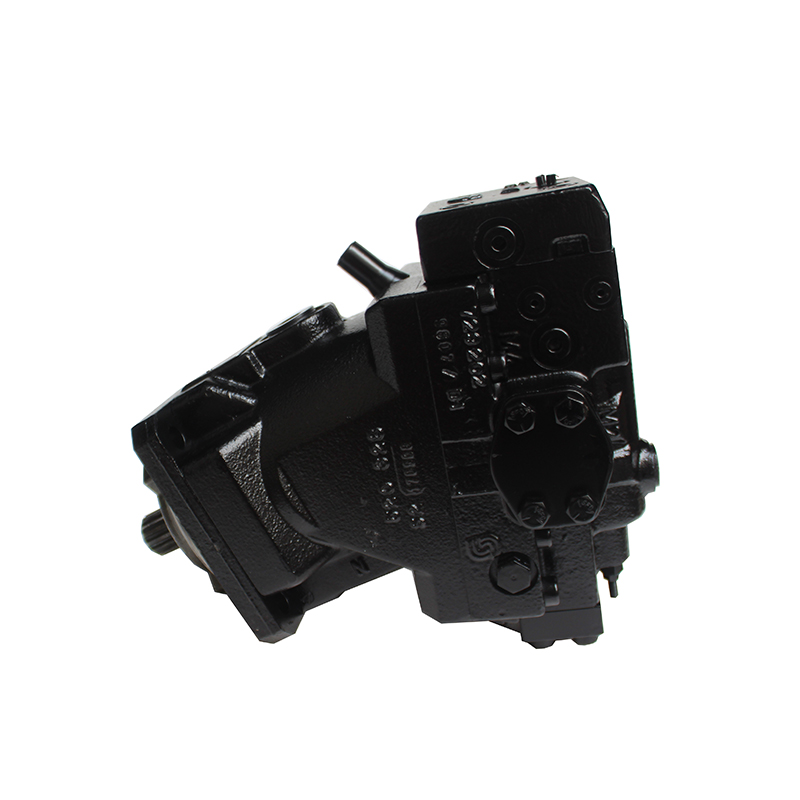

51C080-R-D3-N-N2-NN-N-N-A0-ADA-034-AA-F3-00-00 Danfoss Bent Axis Variable Displacement Motor

Key Technical Features

  • Bent-axis axial piston design for high mechanical efficiency and long service life.
  • 80 cm³/rev variable displacement provides an excellent balance between torque output and travel speed.
  • Continuous operating pressure up to 480 bar, with intermittent peak pressure of 510 bar for demanding mobile applications.
  • 5:1 displacement ratio enables smooth low-speed operation and efficient high-speed travel.
  • Compatible with electro-hydraulic proportional, hydraulic proportional, and two-position displacement controls.
  • Available with SAE or DIN shaft configurations and axial or side port arrangements for OEM flexibility.
  • Optional loop flushing valve improves cooling and extends hydraulic oil life in closed-loop systems.

This field is required.
This field is required.
This field is required.
This field is required.
This field is required.
This field is required.

Contact Us
Categories: , , Tags: , , , , , , , , , , Brand:

Danfoss Series 51C080 Variable Displacement Bent-Axis Hydraulic Motor

Applications and Technical Specifications

The Danfoss Series 51C060 is a 60 cm³/rev variable displacement bent-axis axial piston hydraulic motor designed for closed-circuit hydrostatic transmissions. Featuring a robust bent-axis design with spherical pistons, the 51C060 offers excellent power density, high mechanical efficiency, wide speed range, and reliable operation under high-pressure conditions. It is widely used in demanding mobile machinery requiring precise speed control and high torque output. The motor provides a displacement ratio of up to 5:1, allowing machines to achieve both high starting torque and high travel speeds while maintaining fuel efficiency.

Main Applications

1. Road Construction Equipment

The 51C060 is commonly installed in hydrostatic drive systems for road construction machinery.

Typical applications include:

  • Asphalt pavers
  • Tandem rollers
  • Single drum rollers
  • Soil compactors
  • Milling machines
  • Cold planers

Advantages:

  • Smooth low-speed operation
  • High tractive effort
  • Excellent gradeability
  • Precise vehicle speed control
  • High durability under continuous heavy loads

2. Construction Machinery

Many OEM manufacturers select the 51C060 as a travel or work-function motor for medium-duty construction equipment.

Typical machines:

  • Wheel loaders
  • Compact track loaders
  • Skid steer loaders
  • Excavators
  • Backhoe loaders
  • Telehandlers

Benefits include:

  • High starting torque
  • Stable operation under impact loads
  • Efficient power transmission
  • Reduced fuel consumption

3. Agricultural Machinery

The motor performs exceptionally well in agricultural applications where variable vehicle speed and high pulling force are required.

Common applications:

  • Self-propelled sprayers
  • Combine harvesters
  • Forage harvesters
  • Sugar cane harvesters
  • Grain carts
  • Tractor hydrostatic transmissions

Advantages:

  • Wide operating speed range
  • Excellent low-speed controllability
  • High reliability during long operating cycles
  • Smooth acceleration

4. Forestry Equipment

The heavy-duty design makes the Series 51 suitable for forestry environments.

Applications include:

  • Forwarders
  • Harvesters
  • Log loaders
  • Wood chippers
  • Mulchers

Its high-pressure capability enables continuous operation under severe shock loading and difficult terrain.

5. Mining Equipment

The 51C060 is widely used in underground and surface mining equipment.

Examples include:

  • Underground mining vehicles
  • Drilling rigs
  • Shuttle cars
  • Roof bolters
  • Mining loaders

Its robust rotating group provides long service life even under abrasive and high-temperature environments.

6. Material Handling Equipment

Hydrostatic transmissions equipped with the 51C060 provide excellent maneuverability.

Applications:

  • Container handlers
  • Reach stackers
  • Terminal tractors
  • Heavy forklifts
  • Industrial transport vehicles

Benefits include:

  • Precise positioning
  • Smooth acceleration
  • Low maintenance requirements

7. Municipal Equipment

The motor is also used in municipal service vehicles.

Typical applications:

  • Street sweepers
  • Snow blowers
  • Snow groomers
  • Airport maintenance vehicles
  • Vacuum trucks
Parameter Specification
Product Series Danfoss Series 51
Model 51C080
Motor Type Variable Displacement Bent-Axis Axial Piston Motor
Hydraulic Circuit Closed Circuit Hydrostatic Transmission
Nominal Displacement 80 cm³/rev
Minimum Displacement 16 cm³/rev (depending on control configuration)
Displacement Ratio 5 : 1
Rotation Bi-directional
Continuous Pressure 480 bar (48 MPa)
Peak Pressure 510 bar (51 MPa)
Maximum Speed Up to approximately 6,000 rpm (application dependent)
Rated Speed Approximately 2,000–5,000 rpm
Mounting SAE 4-Bolt Flange
Shaft Options DIN 5480 Splined Shaft / SAE Splined Shaft
Port Configuration SAE Axial or Side Ports
Control Options Hydraulic Proportional, Electric Proportional, Two-Position Hydraulic, Two-Position Electric
Servo Control Internal or External Servo Supply
Loop Flushing Valve Optional (4–11.5 L/min configurations)
Case Drain Dual Case Drain Ports
Operating Medium Mineral Hydraulic Oil or Approved Synthetic Hydraulic Fluids
Operating Temperature Approximately −40°C to +115°C (fluid dependent)
507630 51C080-R-D3-N-N2-NN-N-N-A0-ADA-034-AA-F3-00-00
5084654 51C080-R-D3-N-HZ-B1-B-E-G5-NNN-028-AA-F0-07-00
5084658 51C080-R-D2-N-HZ-B1-A-N-G0-NNN-051-AA-F0-03-00-048
5084659 51C080-R-D2-N-HZ-B1-A-N-G0-NNN-050-AA-NN-03-00
5084678 51C080-R-D3-N-HZ-B1-A-N-G0-DDD-028-AA-F0-03-00
5084679 51C080-R-D3-N-HZ-B1-A-N-G0-ACE-028-AA-F0-03-00
5084699 51C080-R-D2-N-HE-B2-B-E-K1-NNN-031-AA-F0-09-00
5084704 51C080-R-D2-N-N2-NN-N-N-A0-ABA-016-AA-NN-00-00
5084705 51C080-R-D3-N-N2-NN-N-N-A0-ABA-016-AA-NN-00-00
5084706 51C080-R-D2-N-L3-B1-W-B-G0-ANA-016-AA-F0-D4-00
5084709 51C080-R-D3-N-HZ-B1-B-E-G5-ABA-030-AA-F0-07-00
5084714 51C080-R-D2-N-HZ-B1-A-E-G0-NNN-016-AA-F0-03-00
5084717 51C080-R-D3-N-L3-B1-W-B-G0-ANA-016-AA-F0-D4-00
5084718 51C080-R-D2-N-HZ-B2-A-N-K1-ADA-027-AA-E4-03-00
5084724 51C080-R-D3-N-HZ-B1-B-E-G5-ACA-065-AA-F0-07-00
5084725 51C080-R-D3-N-HZ-B1-B-E-G5-NNN-065-AA-F0-07-00
5085600 51C080-1–R-D3-N-N1-NN-N-N-U1-DDD-026-AA-F0-00-00
5085603 51C080-1–R-D3-N-N1-NN-N-N-U1-ABA-016-AA-NN-00-00
5085607 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-032-AA-F0-00-00
5085609 51C080-1–R-D3-N-N1-NN-N-N-U1-DDD-017-AA-F0-00-00
5085610 51C080-1–R-D2-N-TA-C2-N-N-X1-NNN-037-AA-E6-00-18
5085611 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-030-AA-F0-00-00
5085612 51C080-1–R-D2-N-N1-NN-N-N-U1-NNN-040-AA-NN-00-00
5085614 51C080-1–R-S1-N-TA-C2-N-N-X1-NNN-040-AA-F0-00-17
5085615 51C080-1–R-D2-N-N1-NN-N-N-U1-NNN-030-AA-E4-00-00
5085617 51C080-1–R-D3-N-N1-NN-N-N-U1-ANC-026-AA-F0-00-00
5085620 51C080-1–R-D2-N-E1-B1-N-N-U1-ABA-016-AA-NN-00-00
5085622 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-040-AA-F3-00-00
509884 51C080-1–R-S1-N-E1-B1-N-N-U2-AGA-030-AA-A0-00-00
511380 51C080-1–R-D3-N-B2-B3-N-N-U3-ADA-026-AA-F3-00-00
513191 51C080-1–R-D2-N-N1-NN-N-N-U1-ABA-016-AA-NN-00-00
513720 51C080-1–R-D3-N-T2-D2-N-N-X1-ADA-026-AA-NN-00-27-P010
515886 51C080-1–R-D2-N-TA-C2-N-N-X1-NNN-048-AA-F3-00-37
516167 51C080-1–R-D3-N-E2-B1-N-N-U1-ADA-032-AA-E6-00-00
516213 51C080-R-D2-N-N2-NN-N-N-A0-ADA-016-AA-E6-00-00
516406 51C080-1–R-D3-N-B7-B3-N-N-U3-ADA-023-AA-H0-00-00
517206 51C080-1–R-S1-N-E2-B1-N-N-U1-NNN-030-AA-E6-00-00
517422 51C080-R-D2-N-E1-A2-A-N-E1-NNN-026-AA-E6-03-37
517641 51C080-R-D2-N-N2-NN-N-N-A0-NNN-038-AA-F3-00-00
518108 51C080-1–R-S1-N-E2-B1-N-N-U1-ACB-030-AA-E4-00-00
518618 51C080-1–R-D3-N-B2-B3-N-N-U3-ADA-026-AA-E6-00-00
518620 51C080-1–R-D3-N-B2-B3-N-N-U3-ADA-034-AA-E6-00-00
518892 51C080-1–R-D3-N-E2-B1-N-N-U1-ADA-040-AA-E6-00-00
518947 51C080-1–R-D2-N-E2-B1-N-N-U1-ADA-032-AA-NN-00-00
519049 51C080-1–A-D2-N-TH-C2-N-N-X1-ADA-054-AA-G0-00-34
519121 51C080-R-S1-N-L3-B1-W-B-G0-ANA-016-AA-F0-D4-00
519225 51C080-1–A-D3-N-N1-NN-N-N-U1-DDB-031-AA-F0-00-00-P040
519229 51C080-R-D2-N-E2-A2-A-N-E1-NNN-026-AA-E6-03-37
519304 51C080-1–A-D3-N-N1-NN-N-N-U1-AWE-031-AA-F0-00-00-P040
519391 51C080-1–R-D3-N-B1-B3-N-N-U3-ADA-054-AA-B3-00-00
519398 51C080-1–R-D3-N-T1-C2-N-N-X1-NNN-048-AA-F3-00-30
519888 51C080-1–A-D2-N-TA-C2-N-N-X1-NNN-037-AA-E6-00-18
520390 51C080-1–R-S1-N-E1-B1-N-N-U2-DBA-022-AA-A0-00-00
521016 51C080-1–R-D2-N-E0-B1-N-N-U1-AKC-038-AA-F0-00-00-P040
521212 51C080-1–R-D3-C-T1-C2-N-N-X1-NNN-048-AA-F3-00-25
521404 51C080-1–R-D3-N-N1-NN-N-N-U1-AWF-026-AA-F0-00-00
521438 51C080-1–R-D3-N-B2-B3-N-N-U3-ADA-024-AA-A3-00-00
521695 51C080-1–R-D2-N-E1-B1-N-N-U1-NNN-016-AA-E4-00-00
521696 51C080-1–R-D2-N-E1-B1-N-N-U1-NNN-016-AA-NN-00-00
700594 51C080-1–A-D3-N-T2-D2-N-N-X1-NNN-033-AA-F3-00-28
701676 51C080-1–R-D2-N-T2-C2-N-N-X1-NNN-026-AA-E6-00-35
702021 51C080-R-D2-N-N2-NN-N-N-A0-NNN-054-AA-E6-00-00
80000006 51C080-A-D3-N-EQ-A2-K-Z-E1-NNN-016-AA-NN-70-22
80000154 51C080-R-D3-N-HZ-B1-B-H-C2-NNN-032-AA-F0-07-00
80000245 51C080-R-D2-N-L1-B1-W-B-M3-NNN-016-AA-E6-D4-00
80000252 51C080-R-D2-N-L1-B1-W-B-M3-AWA-028-AA-E6-D4-00
80000256 51C080-1–H-D3-N-N1-NN-N-N-U1-ADA-035-AA-NN-00-00
80000263 51C080-R-D2-N-L3-B1-W-B-G0-ABA-016-AA-F0-D4-00
80000338 51C080-1–R-D2-N-N1-NN-N-N-U1-ABA-038-AA-F0-00-00
80000436 51C080-1–R-D2-N-TH-C2-N-N-X1-NNN-046-AA-F0-00-17
80000471 51C080-1–A-D3-N-N1-NN-N-N-U1-NNN-026-AA-NN-00-00
80000532 51C080-1–A-D3-N-T7-L5-N-N-X1-NNN-054-AA-F3-00-24
80000555 51C080-1–R-D3-N-C3-B1-N-N-U1-DDE-038-AA-NN-00-00
80000734 51C080-R-D2-N-L2-B1-V-A-G5-ACB-017-AA-E6-B2-00
80000745 51C080-1–R-D2-N-N1-NN-N-N-U1-NNN-040-AA-F0-00-00
80000755 51C080-1–R-D2-N-N1-NN-N-N-U1-NNN-030-AA-F0-00-00
80000796 51C080-R-D2-N-N2-NN-N-N-A0-ABA-016-AA-F0-00-00-P000
80000797 51C080-R-D3-N-N2-NN-N-N-A0-ABA-016-AA-F0-00-00-P000
80000799 51C080-1–R-D2-N-N1-NN-N-N-U1-ABA-016-AA-E6-00-00-P000
80000800 51C080-1–R-D3-N-N1-NN-N-N-U1-ABA-016-AA-E6-00-00-P000
80000819 51C080-1–R-D2-N-N1-NN-N-N-U1-NNN-033-AA-E6-00-00
80001002 51C080-1–A-D3-N-N1-NN-N-N-U1-DDB-026-AA-F0-00-00-P040
80001004 51C080-1–A-D3-N-N1-NN-N-N-U1-AWE-026-AA-F0-00-00-P040
80001035 51C080-R-D3-N-HZ-B1-B-E-G5-ABA-065-AA-F0-07-00
80001076 51C080-R-D2-N-L7-B1-W-B-G5-NNN-016-AA-E4-D4-00
80001158 51C080-1–R-D2-N-E1-B1-N-N-U1-NNN-030-AA-F0-00-00
80001181 51C080-1–R-D3-N-N1-NN-N-N-U1-ABA-040-AA-F0-00-00
80001197 51C080-1–R-D2-N-E1-B1-N-N-U1-NNN-054-AA-F3-00-00
80001201 51C080-1–R-D2-N-E1-B1-N-N-U1-ABA-054-AA-F3-00-00
80001395 51C080-1–R-D3-N-N1-NN-N-N-U1-ADA-026-AA-E4-00-00
80001458 51C080-R-D2-N-HZ-B1-A-E-G0-NNN-040-AA-F0-03-00
80001487 51C080-R-D3-N-HZ-B1-B-E-C2-ANA-050-AA-F0-10-00
80001499 51C080-R-D2-N-L1-B1-W-B-G5-ACA-025-AA-E6-D4-00
80001617 51C080-1–H-S1-N-N1-NN-N-N-U1-AWR-037-AA-F0-00-00-P040
80001804 51C080-1–R-D3-N-E2-B1-N-N-U1-ADA-027-AA-E6-00-00
80001806 51C080-1–R-D3-N-E2-B1-N-N-U1-NNN-034-AA-E6-00-00
80001858 51C080-1–R-D3-N-C3-B1-N-N-U1-DDE-036-AA-NN-00-00
80002046 51C080-R-D3-N-HZ-B2-B-E-H7-NNN-028-AA-F0-07-00
80002487 51C080-1–R-D3-N-T2-D2-N-N-X1-ADA-036-AA-NN-00-27
80002496 51C080-R-D3-N-L2-B1-V-A-C2-ACA-040-AA-E6-B2-00
80003189 51C080-R-D2-N-L1-B1-W-B-M3-AWA-035-AA-F0-D4-00
80003518 51C080-1–R-D3-N-F2-B1-N-N-U1-NNN-040-AA-NN-00-00
80004267 51C080-R-D3-N-H4-B3-R-J-N2-NNN-050-AA-NN-C2-35
80004391 51C080-R-D3-N-L2-B1-V-A-C0-ACB-016-AA-E4-B2-00
80004550 51C080-1–R-D3-N-N1-NN-N-N-U1-ABA-030-AA-F0-00-00
80004685 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-016-AA-F0-00-00
80004688 51C080-1–R-D3-N-B2-B3-N-N-U3-ADA-026-AA-NN-00-00
80004735 51C080-1–R-D2-N-N1-NN-N-N-U1-ABA-050-AA-E6-00-00
80004988 51C080-1–R-D3-N-E2-B1-N-N-U1-ACB-032-AA-E6-00-00
80005268 51C080-1–R-D2-N-E1-B1-N-N-U1-ADA-032-AA-E6-00-00
80005311 51C080-1–R-D2-N-N1-NN-N-N-U1-NNN-050-AA-NN-00-00
80005372 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-025-AA-NN-00-00
80005635 51C080-1–R-D2-N-E2-B1-N-N-U1-ADA-040-AA-E6-00-00
80005705 51C080-R-D3-N-HS-A2-C-H-E1-NNN-040-AA-E6-16-30
80005742 51C080-A-D3-N-L1-B1-W-B-G5-ACA-016-AA-F0-D4-00
80005759 51C080-1–R-D3-N-N1-NN-N-N-U1-ABA-025-AA-NN-00-00
80006027 51C080-1–R-D3-N-E1-B1-N-N-U1-ADA-024-AA-E6-00-00
80006118 51C080-R-D2-N-L1-B2-W-B-H7-ANA-018-AA-F0-D4-00
80006126 51C080-1–R-D3-N-E2-B1-N-N-U1-ADA-017-AA-E6-00-00
80006421 51C080-1–R-D3-N-N1-NN-N-N-U1-ADA-018-AA-F3-00-00
80006497 51C080-1–A-D3-N-N1-NN-N-N-U1-NNN-054-AA-F3-00-00
80006584 51C080-R-D3-N-L2-B1-V-A-C0-NNN-016-AA-E6-B2-00
83001933 51C080-1–R-D3-N-E2-B1-N-N-U1-NNN-054-AA-NN-00-00
83003024 51C080-R-D3-N-L2-B1-V-A-C0-ACB-023-AA-E6-B2-00
83003249 51C080-1–R-D3-N-E2-B1-N-N-U1-ACB-045-AA-F0-00-00
83003622 51C080-1–A-D3-N-E2-B1-N-N-U1-NNN-028-AA-NN-00-00
83003623 51C080-1–A-D3-N-E2-B1-N-N-U1-ACB-028-AA-NN-00-00
83004058 51C080-1–R-D2-N-N1-NN-N-N-U1-ABA-030-AA-F0-00-00
83004108 51C080-1–R-D3-N-E2-B1-N-N-U1-ADA-022-AA-F3-00-00
83004193 51C080-R-D2-N-L2-B1-V-A-C0-ACA-034-AA-F0-B2-00
83005142 51C080-R-D2-N-HZ-B1-A-E-G0-NNN-035-AA-F0-03-00
83005482 51C080-1–R-D2-N-E2-B1-N-N-U1-NNN-050-AA-G0-00-00
83005796 51C080-R-D3-N-L2-B1-V-A-G5-NNN-035-AA-E4-B2-00
83005797 51C080-R-D3-N-L2-B1-V-A-G5-ACA-035-AA-E4-B2-00
83006362 51C080-1–R-D3-N-E2-B1-N-N-U1-NNN-040-AA-E6-00-00
83006387 51C080-1–R-D3-N-E2-B1-N-N-U1-ACG-017-AA-E6-00-00
83007281 51C080-1–R-D3-N-C3-B1-N-N-U1-DDE-020-AA-NN-00-00
83008651 51C080-1–R-D3-N-E1-B1-N-N-U1-ADA-032-AA-E6-00-00
83010525 51C080-1–R-D3-N-T2-D2-N-N-X1-ADA-023-AA-F3-00-35
83011440 51C080-1–R-D3-N-E2-B1-N-N-U1-NNN-034-AA-F3-00-00
83011678 51C080-R-D3-N-L2-B1-V-A-C0-ACB-028-AA-E4-B2-00
83011679 51C080-R-D3-N-L2-B1-V-A-C0-NNN-028-AA-E4-B2-00
83012081 51C080-1–R-D2-N-N1-NN-N-N-U1-ABA-026-AA-NN-00-00
83012491 51C080-1–A-D3-N-E0-B1-N-N-U1-ADA-030-AA-F3-00-00
83012521 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-045-AA-F3-00-00
83012885 51C080-R-D3-N-HZ-B1-A-H-C2-ADA-045-AA-F0-05-00
83013464 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-017-AA-F0-00-00
83013507 51C080-1–R-D3-N-N1-NN-N-N-U1-NNN-047-AA-F0-00-00
83014155 51C080-1–R-D2-N-TA-C2-N-N-X1-NNN-037-AA-E4-00-26
83014329 51C080-1–R-D3-N-TA-C2-N-N-X1-NNN-037-AA-E4-00-26
83014449 51C080-R-D2-N-HZ-B1-B-E-G5-NNN-020-AA-NN-07-00
83014874 51C080-R-D2-N-L1-B1-W-B-M3-AWA-035-AA-E6-D4-00
83015397 51C080-R-D3-N-HZ-B1-A-H-C2-ADC-045-AA-F0-05-00
83015943 51C080-1–R-D3-N-B2-B3-N-N-U3-NNN-036-AA-NN-00-00
83016044 51C080-1–R-D3-N-T1-C2-N-N-X1-NNN-040-AA-E6-00-24
83016095 51C080-1–R-D3-N-N1-NN-N-N-U1-ANA-030-AA-F0-00-00
83016440 51C080-1–A-D3-N-N1-NN-N-N-U1-ANA-030-AA-F0-00-00
83016477 51C080-1–A-D3-N-T7-R5-N-N-X1-NNN-045-AA-F0-00-26
83016567 51C080-1–A-D3-N-N1-NN-N-N-U1-NNN-030-AA-F0-00-00
83016591 51C080-1–R-D3-C-B2-B3-N-N-U3-NNN-032-AA-NN-00-00
83018605 51C080-1–R-D3-N-TH-C2-N-N-X1-DDH-040-AA-NN-00-27
83019003 51C080-1–R-D3-N-B2-B3-N-N-U3-ADA-043-AA-NN-00-00
83019475 51C080-1–A-D3-N-N1-NN-N-N-U1-NNN-035-AA-F3-00-00
83019822 51C080-R-D2-N-L1-B1-W-B-M3-AWA-021-AA-E6-D4-00
83021571 51C080-1–R-D3-N-TH-C2-N-N-X1-DDH-045-AA-NN-00-22
83021665 51C080-1–R-D3-C-TH-C2-N-N-X1-DDH-030-AA-NN-00-18
83022762 51C080-1–A-D3-N-N1-NN-N-N-U1-NNN-036-AA-F3-00-00
83029203 51C080-R-D3-N-HZ-B1-A-H-G5-ABA-030-AA-F0-03-00
83032157 51C080-1–R-D2-N-E1-B1-N-N-U1-ACG-032-AA-E6-00-00
83047632 51C080-R-D3-N-HZ-B1-A-H-G5-ACA-030-AA-F0-03-00
83047634 51C080-R-D3-N-HZ-B1-B-E-G5-ACA-030-AA-F0-07-00

A: We are factory and trading company.

A: Generally it is 3-5 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: We can provide samples, but not for free.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have more questions, pls feel free to contact us as below:

sales@bailehydraulic.com

WeChat/WhatsApp：0086 18060096097

Related products
